High Performence Customized Self-lubricating Wrapped Sleeve Bushing

High Performence Customized Self-lubricating Wrapped Sleeve Bushing thumbnail-1
High Performence Customized Self-lubricating Wrapped Sleeve Bushing thumbnail-2
High Performence Customized Self-lubricating Wrapped Sleeve Bushing thumbnail-3
High Performence Customized Self-lubricating Wrapped Sleeve Bushing thumbnail-4
High Performence Customized Self-lubricating Wrapped Sleeve Bushing thumbnail-5
High Performence Customized Self-lubricating Wrapped Sleeve Bushing thumbnail-6
High Performence Customized Self-lubricating Wrapped Sleeve Bushing photo-1

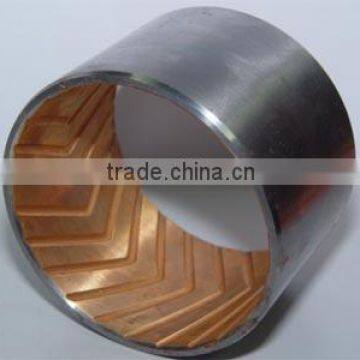

High Performence Customized Self-lubricating Wrapped Sleeve Bushing photo-2

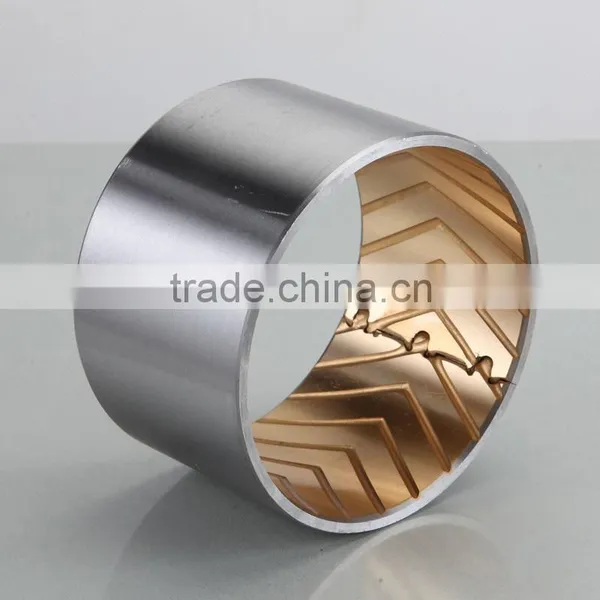

High Performence Customized Self-lubricating Wrapped Sleeve Bushing photo-3

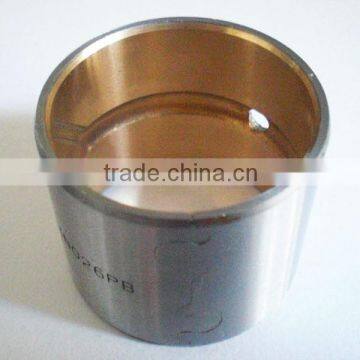

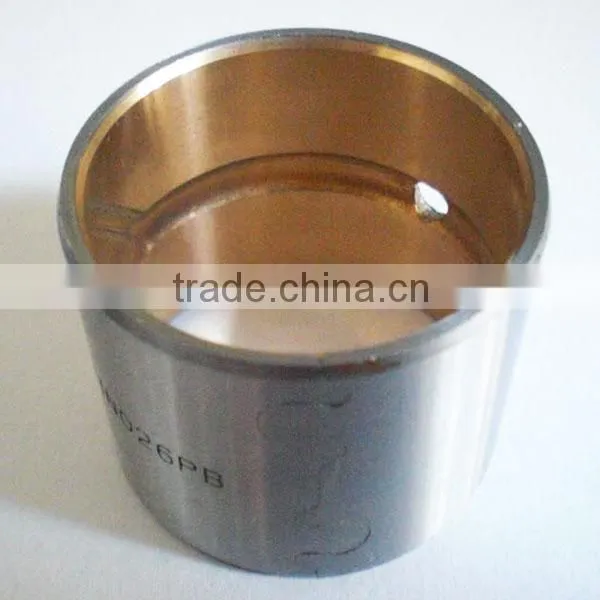

High Performence Customized Self-lubricating Wrapped Sleeve Bushing photo-4

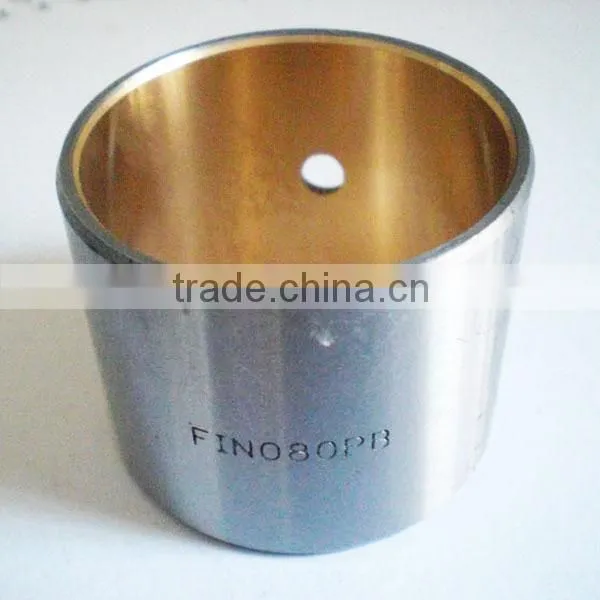

High Performence Customized Self-lubricating Wrapped Sleeve Bushing photo-5

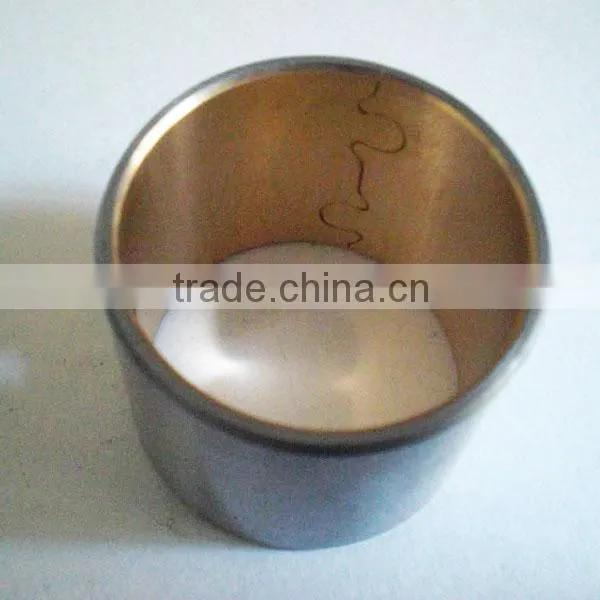

High Performence Customized Self-lubricating Wrapped Sleeve Bushing photo-6
US$ 0.05 - 6 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
SF-4
Contact Supplier Request Quote Chat Now
Shaanxi Dewin Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name OEM
Model Number SF-4
Type Sleeve
Material CuSn8
Our company

We produce self-lubricating bushing (oilless bushing) since 2004.

Our factory located in Jiashan, Zhejiang and 30 employees with the building area of 1500 square meters.

Product Description
High performence Customized self-lubricating wrapped sleeve bushing  High performence Customized self-lubricating wrapped sleeve bushing
 High performence Customized self-lubricating wrapped sleeve bushing High performence Customized self-lubricating wrapped sleeve bushing
 High performence Customized self-lubricating wrapped sleeve bushing



Material



Material Trademark

Alloy Composition

Alloy Hardness

International Standard

SF-30

CuPb10Sn10

70~100HB

JIS-LBC3/SAE-797/GLACIER SY
DAIDO L10/GLYCO68/ACL F100

SF-31

CuPb24Sn4

45~70HB

JIS-LBC6/SAE-799/GLACIER SX
DAIDO L23/GLYCO68/ACL F250

SF-32

CuPb24Sn

40~60HB

SAE-49/ACL F780

SF-33

CuPb30

30~45HB

SAE-48/JIS-KJ3 /GLACIER SL

SF-34

AlSn20Cu

30~40HB

JIS-AJL/SAE-783/GLAICER As15
GLYCO74/ACL 820



Technical Data



 Type

  Performance Index

SF-30

SF-31

SF-32

SF-33

SF-34

Max Load Capacity(N/mm2)

150

130

130

120

100

Tensile Strength(N/mm2)

185

150

150

200

200

Max Sliding Speed (Oil Lubrication)

V(m/s)

5.0

10.0

10.0

15.0

25.0

Friction Coefficient μ

0.06~0.14

0.06~0.16

0.06~0.16

0.08~0.16

0.08~0.17

N/mm2·m/s

Max PV Value Limit

Grease Lubrication

2.8

2.8

2.8

2.5

—

Oil lubrication

10

10

10

8

6



Packing&Shipping

Inner Packing:

Plastic film tubes(OD over 25mm)& Plastic bags(OD less than 25mm)

Carton:

360*360*240mm
360*360*180mm
360*240*180mm

Pallet:

18 Cartons/Pallet (1.2*0.8*1=0.96 m3),about 800 kg/pallet

Delivery:

23Days(General type 15 days),at Shanghai port

High performence Customized self-lubricating wrapped sleeve bushing  High performence Customized self-lubricating wrapped sleeve bushing
 High performence Customized self-lubricating wrapped sleeve bushing High performence Customized self-lubricating wrapped sleeve bushing



Our Services



Partner Services:

  • Product industry-related market investigation.
  • Providing office and sales staff as your branch in China.
  • Co-ordination of sales & marketing locally.
  • Organizing, monitoring and following up of attending in exhibitions.
  • Breakdown service case by case and general problem solving locally.

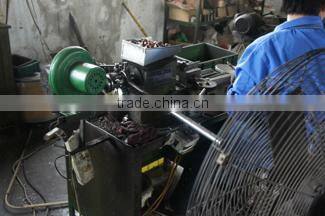

Our Factory
 High performence Customized self-lubricating wrapped sleeve bushing High performence Customized self-lubricating wrapped sleeve bushing
 High performence Customized self-lubricating wrapped sleeve bushing

 High performence Customized self-lubricating wrapped sleeve bushing

Exhibition

    High performence Customized self-lubricating wrapped sleeve bushing
