Home > Industrial Equipment & Components > Bearing > Plain Bearing > High Performence Solid-lubricant Inlaid Bronze Bearing

High Performence Solid-lubricant Inlaid Bronze Bearing

High Performence Solid-lubricant Inlaid Bronze Bearing photo-1

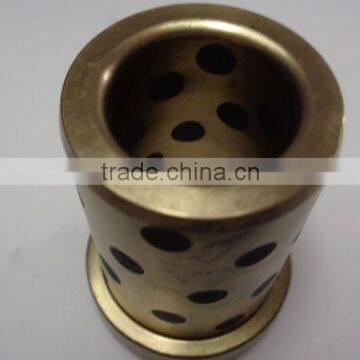

High Performence Solid-lubricant Inlaid Bronze Bearing photo-2
High Performence Solid-lubricant Inlaid Bronze Bearing photo-3
High Performence Solid-lubricant Inlaid Bronze Bearing photo-4
High Performence Solid-lubricant Inlaid Bronze Bearing photo-5
High Performence Solid-lubricant Inlaid Bronze Bearing photo-6
US$ 0.05 - 0.05 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
OEM
Model Number:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Port
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Zhejiang, China
Brand Name OEM
Model Number OEM
Type Flanged
Material Bronze
Our Company

DEWIN GROUP, whose headquarter is located in xi'an, was established in 2011. Dewin is committed to the export of oilless bearing, powder metallurgy, ceramics and other kinds of materials of automotive parts, and its customer base throughout southeast Asia, Europe, America and other countries. As we gradually improve the content and quality of the customer service, "Dolphin" service came into being. In addition to simple purchasing of goods, inspection, delivery, Dolphins services carry out all kinds of business services in the view of customer. Such as cost estimate, evaluation of suppliers, technology upgrading, investment research, etc. Since 2014, Dewin has become the exclusive partner of many overseas clients, solely being responsible for all the management of overseas customers in China.

Product Description
 High performence Solid-lubricant inlaid bronze bearing High performence Solid-lubricant inlaid bronze bearing
 High performence Solid-lubricant inlaid bronze bearing High performence Solid-lubricant inlaid bronze bearing
 High performence Solid-lubricant inlaid bronze bearing

High quality customized Graphite bronze JDB BUSHING

Solid bronze bush is a kind of machined cast bronze bearing which takes oil in inner grooves to work. It can be used in low speed because of larger load, longer life and higher HB than Al-Cu bearing.
Machined Cast bronze bearings offer technically and economically favourable bearings solutions.

Specifications:(CuZn24AL6)
Base Hardness:HB230-270
Friction coef(u):<0.16
Temperature limit :170 ℃
Dynamic load limit:100N/ mm²
Speed limit:(oil)5m/s

Application

Used in injection molding, automobile mold, engineering machine, food machinery and water turbines.etc.

Metal Material

Corresponding brands/Type

SF-50

SF-51

SF-52

SF-53

SF-54

SF-55

China Brands GB1776-87

ZCuZn25

Al6Fe3Mn3

ZCuZn25

Al6Fe3Mn3

ZCuAl9Fe4

Ni4Mn2

GCr15

HT250

ZCuSn10

Zn2

International ISO1338

GCuZn25

Al6Fe3Mn3

GCuZn25

Al6Fe3Mn3

G-CuAl10

Fe3Ni5

B1

-------

GCuSn10

Zn2

Germany DIN

G-CuZn25

AI5

G-CuZn25

Al5

G-CuAl10

Ni

100Cr6

-------

G-CuSn10

Zn

Japan JIS

HBsC4

HBsC4

AIBC3

SUJ2

FC250

BC3

America ASTM/UNS

C86300

C86300

C95500

52100

Class40

C90500

England Standard

HTB2

HTB2

AB2

--------

--------

G1



Technical Data



performance index/Type

SF-50

SF-51

SF-52

SF-53

SF-54

SF-55

Max Move Load Capacity(N/mm²)

100

150

50

200

15

70

Max sliding Speed(m/min)

15

10

20

5

15

10

Max PV Value Limit(N/mm²·m/min)

200

200

200

150

40

200

Density(g/cm3 )

8.0

8.0

7.6

7.8

7.3

8.8

Tensile Strength(N/mm²)

>750

>780

>500

>1500

>250

>350

Elongation(%)

>12

>4

>10

-------

-------

>8

Hardness(HB)

>210

>250

>150

HRC>55

>160

>80

Max Working Temperature(°c)

300

300

400

300

400

400

Friction coefficient(µ)

Oil Lubrication:0.03   Dry Friction:0.16

Packing&Shipping

Packing:

1.Anti-rust oil
2.Plastic films scroll
3.Plastic bag scroll
4.Cartons with label of goods information
5.Pallet for every 12ctns/24ctns/36ctns

Delivery:

15~30 Days(General type 15 days),at Shanghai Port.

High performence Solid-lubricant inlaid bronze bearing High performence Solid-lubricant inlaid bronze bearing
High performence Solid-lubricant inlaid bronze bearing High performence Solid-lubricant inlaid bronze bearing
Our Services



Partner Services:

  • Product industry-related market investigation.
  • Providing office and sales staff as your branch in China.
  • Co-ordination of sales & marketing locally.
  • Organizing, monitoring and following up of attending in exhibitions.
  • Breakdown service case by case and general problem solving locally.
Our Factory
High performence Solid-lubricant inlaid bronze bearing High performence Solid-lubricant inlaid bronze bearing
High performence Solid-lubricant inlaid bronze bearing

High performence Solid-lubricant inlaid bronze bearing

Exhibition

    High performence Solid-lubricant inlaid bronze bearing
