Bush Hammered Limestone
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | DEWIN | |
| Model Number | DE-Fu001 | Type | Sleeve | |
| Material | BRONE |
Product Description
Specifications
1.High thermal conductivity,high load carrying capacity.2.Excellent chemical resistance.
3.ROSH and ISO9001:2000 .

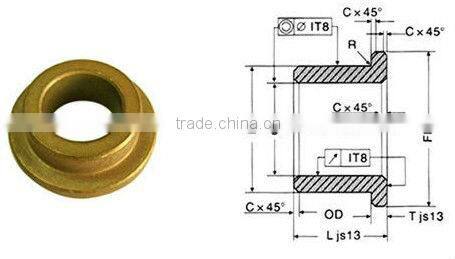

*Sintered Bronze bearings are all self-lubricating and maintenance free. The sintered bronze bushings consist of a porous bronze matrix impregnated with lubricant. The permissible sliding velocity for sintered bronze bushings is very high, which makes the bushings suitable for rotating applications.
*We offers a full range of both plain and flanged cylindrical bushings in accordance with ISO 2795.
Features and advantages
* high sliding velocity
* No external lubrication required
*Maintenance-free operation
*Good frictional properties
*While storing and mounting make sure that the bushing never comes into contact with any absorbent material, as this may drain the oil very quickly.
*It is therefore recommended to keep the bushing in the original packaging for as long as possible.
*Additional lubrication is usually not necessary.
Material
*Sintered Bronze/iron consists of a sintered metallic bronze or iron powder with fully impregnated porosity.
*The material compositions are in bronze or iron or bronze-iron with a porosity volume of 12%-18 % impregnated with mineral oil.
*Machining or grinding of the bearing surface of a porous sintered bushing is not recommended due to the risk of closing the bearing pores.
Applications
*Sintered Bronze bushings are most suitable for applications with rotating movements and where the self-lubricating performance requirements are high.
*Examples of applications are:
*Electrical equipment, like toys
*Household equipment,like fans
*Printing machinery
* Machine tools,power tools
Specifications
Material | Bronze | Bronze(CuSn6Zn6Pb3/CuSn10) + 12~18%Oil |
Iron | Fe + 12~18%Oil | |
Cu-Fe | Cu20Fe80 + 12~18%Oil | |
| Customized is available | |
Load capacity |
| 35~45N/mm2 |
Speed limit |
| 2.5m/s |
PV value limit |
| 2.45N/mm2.m/s |
Yeild Strength |
| 147~294N/mm2 |
Hardness |
| 20~60HB |
Friction coef |
| 0.12~0.2 |
Working temperature max. |
| -80~160°C |
More information :
1. we are manufacturer and OEM welcome, best price and high quality
2. with well –equipped testing equipment and strong technical force.
3.the picture is just you reference for more inforation please contact us.
4. Any questions, please feel free to contact us !
Our aim is to:
1. Provide the customer with the best available technical & practical advice
2. Provide high quality products, tailored to customer’s specifications
3. Ensure quick turnaround times on all product lines
4. Offer competitive pricing
5. Provide superior after sales service
