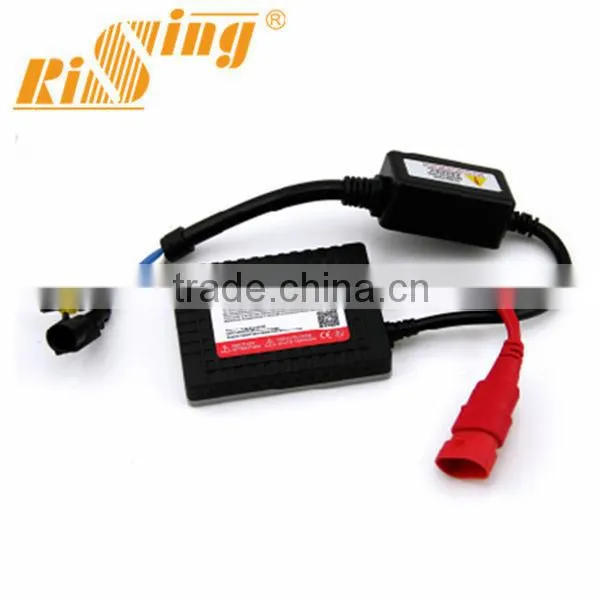

Help CenterHigh Quality Hid Ballast Slim Ballast
Related Products
Specifications
HID ballast1.strong easy startup
2.low defective rate xenon lighting
3.XPU inside,slim,intelligence,reliable
RISING,your choice:
1.The only manufacture in Asia to produce HID lamp and ballast
2.The only supplier with full vehicle matching qualifications in China 67 patents
3.Draft unit of national standard Enough production capacity Perfect Quality Control System National Standard Lab center
4.Complete certifications,Such as E-mark,DOT,SAE,ISO/TSI16949,ISO9001,ISO14001,CE,etc
Description
Parameter | |
| Working Temperature Range | -40°C~105°C |
| Rating Working Voltage | 12V |
| Working Voltage Range | 6V±0.5V~18V±0.5V |
| Ignition Voltage Range | 9V±0.5V~18V±0.5V |
| Steady Output Power | 35W±1W |
Efficiency(Rating Working Voltage±5%): |
No less than 83% |
| Input Starting Current | 9A±0.5A |
| Rating Output Voltage | 85V |
| Rating Output Current | 0.4A |
| Output Ignition Voltage | 23KV±1KV |
| Urgent Operation Power |
28W±1W |
Features
1.Accurate constant Power output control
2.Ignition procedure,intelligent control of hot and cold startup and output negative voltage working prolong the lamp's light decay and lifetime.
3.Low starting input currency can project the battery,power switch,wire of the car effectively.
4.Voltage lower down,still operates well.
5.Overvoltage protection,under voltage protection,reverses polarity protection,open and short circuit protection
6. Wide working voltage range
7.Fault monitoring,automatic shut-off function.
8.Well heat dissipation,waterproof and shielding system.
9.Auto maker level design and fabrication technology
10.Longer life-span,higher reliability and lower power
