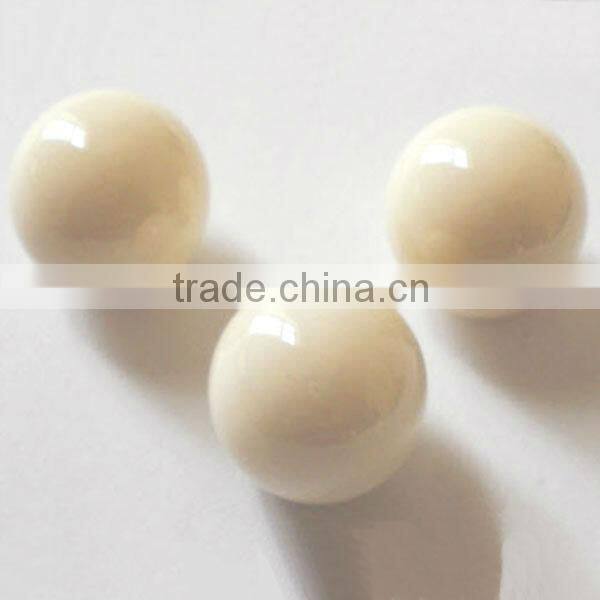

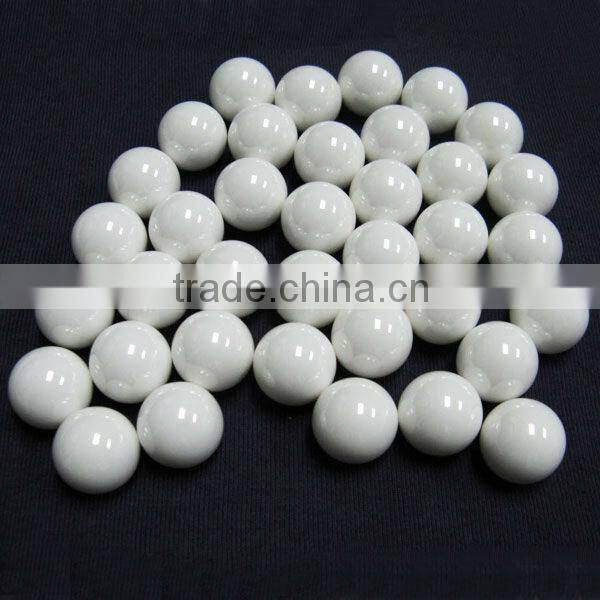

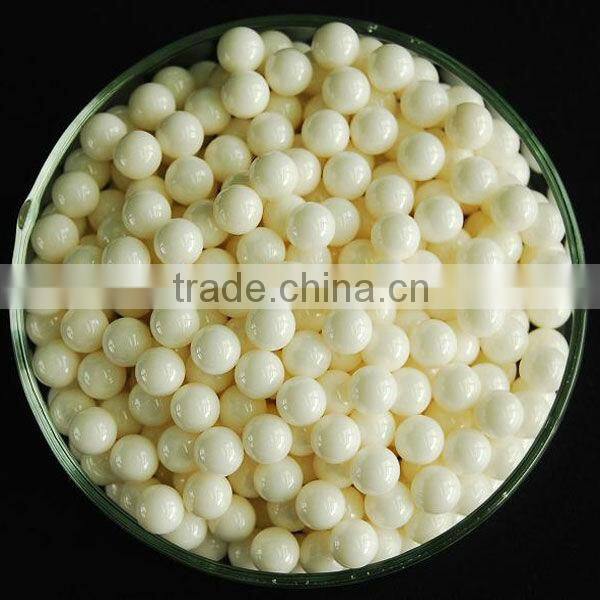

Help CenterZirconia Ceramic Ball (Ceramic Bearing Ball)
Related Products
-
White Zirconia Ceramic Ball, Mirror Fine Polished, CustomizedUS$ 0.1 - 20MOQ: 1 Piece -
Zirconia Ceramic Grinding Ball, Ceramic BallUS$ 0.1 - 20MOQ: 1 Piece
-
Zirconia Zro2 Ceramic Bearing BallsUS$ 0.1 - 20MOQ: 1 Piece
-
Hardened and Precise Ceramic Balls for BearingUS$ 0.1 - 15MOQ: 500 Pieces
-
Precise Ceramic Balls for BearingUS$ 0.1 - 15MOQ: 500 Pieces
Specifications
Ceramic Ball:1.ROSH and ISO.
2.Material:Si3N4 Ceramic.
3.Anti-high density,Anti-corrosion.

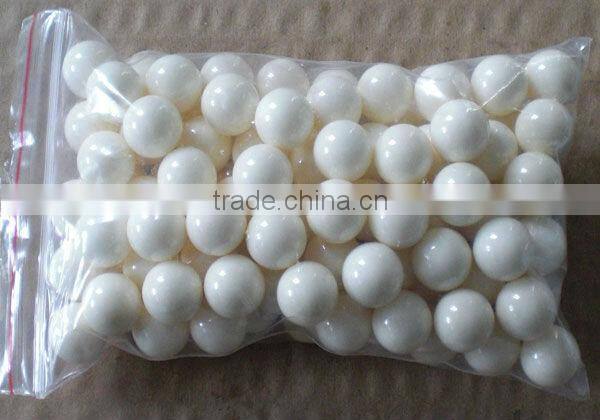

4.Package:carton or wooden.
Apply To:
Alumina ball is widely used in Ceramic industry,cement industry, paint industry, Color industry,
chemical industry,pharmaceutical industry, coating industry and mining industry.
Features:
1.High density
2. High hardness
3.Chemical inertness
4.Good erosion resistance
Main Performance Index:
Alumina Ceramic Ball
Contents |
Unit |
Characteristics |
Composition |
% |
99.3-99.5 |
Specific Gravity |
g/cm3 |
3.7-3.99 |
Coefficient of Linear Expansion |
10-6/k |
6.5-8.6 |
Young’s Modulus |
Gpa |
407 |
Hardness HV10 |
Kg/mm |
2300-2700 |
Bending Strength |
Mpa |
300-400 |
Fracture Toughness |
Mpam1/2 |
2.0-4.0 |
Working Temperature |
°C |
>800 |
Technical Data |
High Alumina Ball |
Medium Alumina Ball |
Alumina Content |
93% Min. |
68% Min. |
Density |
3.63-3.67 |
2.95 Min. |
Wear Loss Rate (lab testing) |
0.008%-0.01% |
0.018%-0.02% |
We supply :

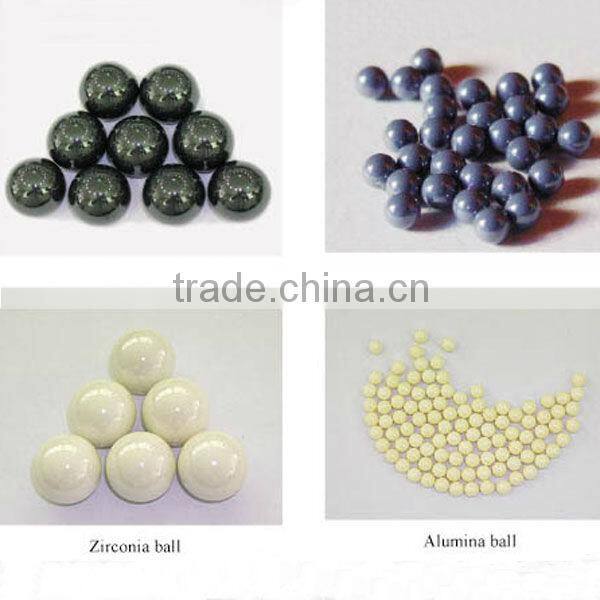

Zirconia ceramic ball
Ceramic polishing ball
0.5-70mm ceramic ball
Zirconia grinding bead
Zirconia ceramic grinding ball
Customized according to your requirements .
If you are interested, Pls let us know.
All absolute quality goods,fast delivery and competitive price.
Any questions,welcome to contact us and we would be happy to offer you detailed information.
