Place of Origin Zhejiang, China
Model Number CB-127
Brand Name DEWIN



Our company

Dewin Group is dedicated to precise manufacture of advanced ceramic parts, providing high quality advanced ceramic products for customers all over the world and has experienced rapid development in this field for over 8 years .
We have a factory located in Shanghai, the area of 2000 square metres and the building area of 8000 square metres.
We have the whole process of ceramic manufacturing and precise machining. At present, our mainly product ceramic ball, ceramic bearing, ceramic ring, which are made from silicon nitride, zirconia, alumina or silicon carbide.
We also produce advanced ceramic parts to customer specification. We have an experienced engineer team to assist with customers’ special requirements. From prototype to production, our company will work with you to provide the optimum cost effective solution to your demanding applications.

Product Description

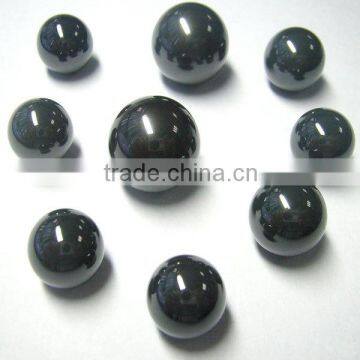

 Compared with steel ball, Si3N4 ball has following advantages:

1. 59% lighter than steel ball, which means less centrifugal force and less wear on the groove during high speed and acceleration.

2. 44% larger elastic modulus, which means less deformation under load.

3. Harder with Rockwell hardness as 78.

4. Smaller friction coefficient.

5. Only 1/4 coefficient of thermal expansion of steel, can endure sharp fluctuation of temperature.

6. Superior surface finish can be achieved, Ra could be 4~6 nm.

7. Can endure high temperature with high hardness and strength up to 1050ºC.

8. Never rust, and can roll without lubrication.

9. More corrosion resistant than steel.

10. Free of metal contamination.

11. Non-magnetic.

12. Electric isolation.

13. No adhesive-wear.

All above combination makes Si3N4 to be first choice for bearing ball material.

 Ceramic bearing balls Ceramic bearing balls
 Ceramic bearing balls Ceramic bearing balls

Apply To:

Alumina ball is widely used in Ceramic industry,cement industry, paint industry, Color industry,

chemical industry,pharmaceutical industry, coating industry and mining industry.

Technical Data

Contents

Unit

Characteristics

Composition

%

99.3-99.5

Specific Gravity

g/cm3

3.7-3.99

Coefficient of Linear Expansion

10-6/k

6.5-8.6

Young’s Modulus

Gpa

407

Hardness HV10

Kg/mm

2300-2700

Bending Strength

Mpa

300-400

Fracture Toughness

Mpam1/2

2.0-4.0

Working Temperature

°C

>800

Technical Data

High Alumina Ball

Medium Alumina Ball

 Alumina Content

 93% Min.

68% Min.

Density

 3.63-3.67

2.95 Min.

 Wear Loss Rate (lab testing)

 0.008%-0.01%

0.018%-0.02%



Note: 1. black color as standard, gray color could be supplied upon customer requirement.

          2. Plenty of stock.

          3. Non-standard size and different gauge could be supplied.
