Home > Products > New Products > Telescopic boom truck mounted crane howo sinotruk ZZ1257N5247C for sale

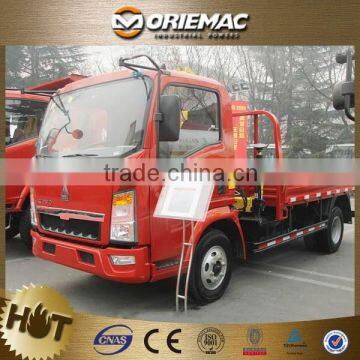

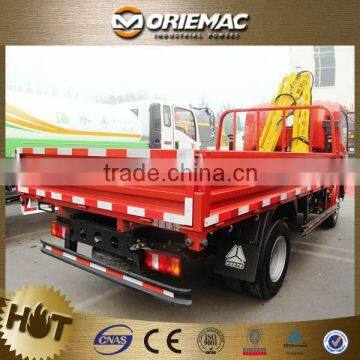

Telescopic boom truck mounted crane howo sinotruk ZZ1257N5247C for sale
USD $15,000 - $25,000
/ Set
1 Set(Min.Order)
- 500 Set / Sets per Month
- SHANGHAI TIANJIN
- T/T D/P D/A Credit Card
You May Like
Product Details
Condition: | New | Max. Lifting Load: | 12000 | Max. Lifting Height: | 38900mm |
Span: | 80 | Brand Name: | SINOTRUK | Model Number: | ZZ1257N5247C |
Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas | Rated Lifting Moment: | 5330mm |
Product Description
Telescopic boom truck mounted crane howo sinotruk ZZ1257N5247C for sale
specificate:
Truck Model | ZZ1257N5247C | |||
Dimension(L x W x H, mm) | 11184× 2496× 3046 | |||
Cargo body size (L x W x H, mm) | 8480x2326x600 | |||
Approaching angle/Departure angle(° ) | 10 to 16 | |||
Overhang(front/rear, mm) | 1500/3109 | |||
Wheel base (mm) | 5200+1400 | |||
Max speed(km/h) | 90/102 | |||
Curb weight(kg) | 13170 | |||
Loading Weight(kg) | 12000 | |||
Engine (Steyr technology, made in China) | Model | WD615.69, water-cooled, four strokes, 6 cylinders in line with water cooling, turbocharged and intercooling, directly injection | ||
Fuel Type | Diesel | |||
Horse | 336HP | |||
Emission | EURO2 | |||
Fuel tanker capacity | 300L | |||
Transmission | Model | HW15710 | ||
Brake system | Service brake | Dual circuit compressed air brake | ||
Parking brake | spring energy, compressed air operating on rear wheels | |||
Steering system | Model | ZF8098 | ||
Front axle | HF9 Drum, Steering with double T-cross section beam | |||
Rear axle | ST16, Pressed axle housing, central double reduction with differential locks between axles and wheels | |||
Tyre | 12.00-20 | |||
Electrical system | Battery | 2X12V/165Ah | ||
Alternator | 28V-1500kw | |||
Starter | 7.5Kw/24V | |||
Cab | HOWO76 cab, two sleeping, all-steel forward control, 55º hydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’ s seat and rigid adjustable co-driver’ s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
