Home > Products > Truck & Special Vehicle > Howo Small Refrigerated Trucks

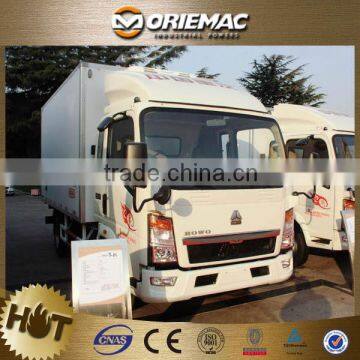

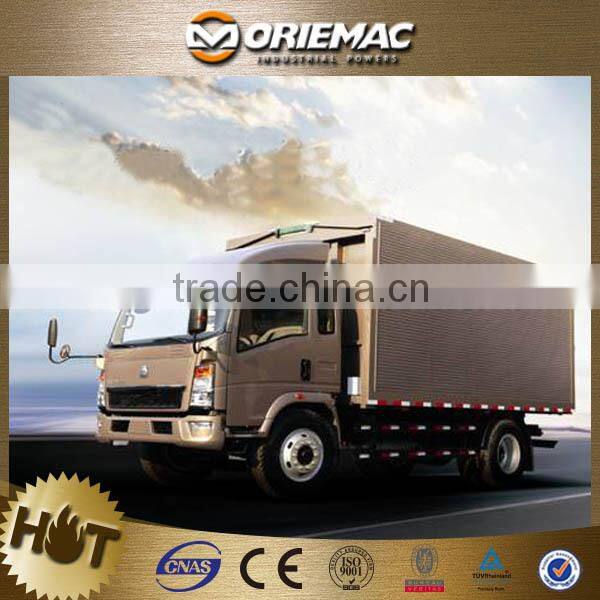

Howo Small Refrigerated Trucks
US$ 20,000 - 35,000
/ Unit
1 Unit(Min. Order)
- Shnaghai Qingdao Lianyugang
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | HOWO, HOWO | Model | ZZ1047C3414B145 | |
| Place of Origin | Shandong, China | Transmission Type | Manual | |
| Condition | New | |||
| Emission Standard | Euro 3 | Fuel Type | Diesel | |
| Dimensions (L x W x H) (mm) | 8377x2496x3048 | Box Dimensions (L x W x H) (mm) | 5540x2300x550 | |
| Temperature Range | -5 10 | Gross Vehicle Weight | 19580 |
Product Description
Product Description
Howo small refrigerated trucks
1. Strong power
2. Fuel economic
3. Parts available
4. Sale from factory
| REFIRGERATED TRUCK-ZZ1047C3414B145 | |||
| HOWO /4x2 series /3600 wheelbase/ Technology Cabin | |||
| 4x2,REFIRGERATED TRUCK, HOWO76 cabin(Single sleeping bed,A/C), with CY4100-ZLQ engine, with HW13710CL transmission,ZF8098 steering, Details for the specification List | |||
| SPECIFICATION | |||
| Carriage dimension: (mm) | 5540x2300x550 | ||
| Dimension(Lx W xH) | 8377x2496x3048 | ||
| Approaching angle/Departure angle(°) | 19/23 | ||
| Overhang(front/rear) (mm) | 1500/1870 | ||
| Wheel base (mm) | 3600+1350 | ||
| Max speed(km/h) | 75 | ||
| Curb weight(kg) | 19850 | ||
| Engine (Steyr technology, made in China) | Model | CY4100-ZLQ | |
| Fuel type | Diesel | ||
| Power, max(kw/rpm) | 70KW | ||
| Emission | EURO IV | ||
| Fuel tanker capacity (L) | 300 | ||
| Transmission | Model | HW13710CL,10 forward&2 reverse | |
| Brake system | Service brake | Dual circuit compressed air brake | |
| Parking brake | spring energy, compressed air operating on rear wheels | ||
| Steering system | Model | ZF8098 hydraulic steering with power assistance | |
| Front axle | HF7 | ||
| Rear axle | MCY13Q | ||
| Tyre | 12.00R20 | ||
| Electrical system | Battery | 2X12V/165Ah | |
| Alternator | 28V-1500kw | ||
| Starter | 7.5Kw/24V | ||
| Cab | HOWO70 cab(no bed,A/C),all-steel forward control,55º hydraulically tillable to the front,2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers. | ||
