flated bed semi trailer

Name: flated bed semi trailer
Brand: ketian
Availability: InStock

FOB Price

USD $15,000 - $20,000 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

3Axle Skeletal Container Semi Trailer Product parameter:

Weight:
	Tare Weight	8000kg--14000kg
	Loading Capacity	30T--90T
	Axle Weight Load	13T-16T
Specification:
	Axle number	2- 4
	Axle Brand	Fuwa/BPW/Optional upon choice
	Suspension	Common mechanical Or Air suspension
	King Pin	2" or 3.5" traction pin
	Dimensions (LxWxH)	12400-18000×2500-3200×1500-1550mm
	Support legs	28T
	Wheel Rim	8.5-20,9.0-20,8.28-22.5,9.0-22.5 steel wheel rim / optional upon choice
	Wheelbase	7180/6680/6260+1310+1310mm
	Steel Spring	10-13 pieces per axle
	Twist lock	*12 sets of ISO twist lock for 120ft,220ft,140ft container**
	Landing Gear	Manual operating, Heavy duty landing gear (Brand Optional upon chioce)
	Floor	3-5 Diamond steel plate
	Accessories	1 Set standard tool box
	Light	Tail lamp with turn signal, brake light & reflector, side lamp etc.
	Painting	1coat of anticorrosive prime, twice coats of final paint
Tire:
	Tire spe.	12R22.5 Vacunnm tire/11.00R20
	Number of Tire	8 or 12 or 16 pieces
	Spare Tire Carriers	2 pieces
Frame: (specs. and materials)
	Main beam	The height of the beam is500-550mm; Upper plate:14-18mm;Mown plate is 16-20mm;Middle plate is 8-12mm.
Brake:
	Brake brand	Optional upon choice
	Brake Chamber	Six big chamber( Brand Optional upon chioce )
	Brake system	Dual Line Brake system (ABS Optional upon chioce)

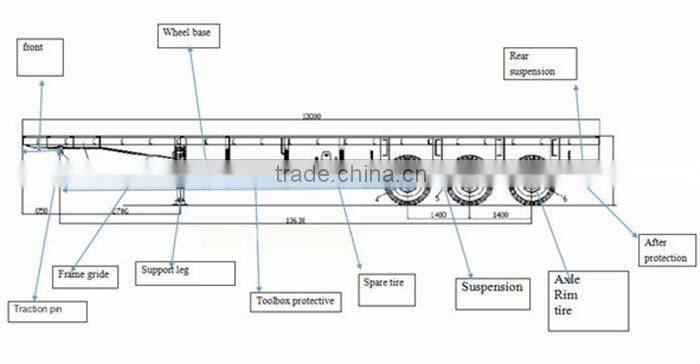

Drawings of container semi trailer:
