XCMG Road Roller XD131 Double Drum Vibration Roller
US$ 1,000 - 32,000
/ Set
1 Set(Min. Order)
- shanghai qingdao
- T/T D/P D/A Money Gram Credit Card
You May Like
Product Details
| Condition | New | Type | Double Drum Roller | |
| Static Linear Pressure | 301/301N/cm | Travel Speed | 0-10km/h | |
| Grade Ability | 30% | Place of Origin | Jiangsu, China | |
| Brand Name | xcmg | Model Number | XD131 | |
| Power(W) | 93kw | Dimension(L*W*H) | 6060*2466*3464 XCMG XD131 | |
| Weight | 13080kg | Certification | 3C,ISO,CNAS,TUV,BV | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

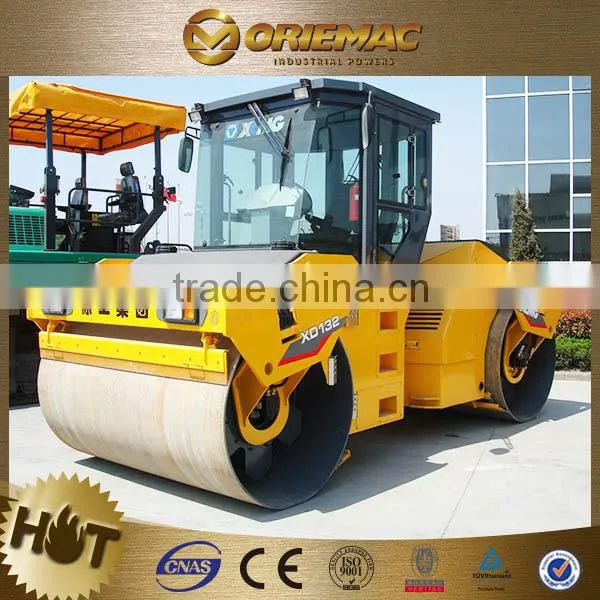

XCMG road roller XD131 double drum vibration roller
Type | Unit | XD131 |
Operating weight (including cab) | kg | 13080 |
load on front drum | kg | 6540 |
Load on rear wheels | kg | 6540 |
Static linear load | N/cm | 301/301 |
Speed | km/h | 0-10 |
Gradeability in theory | % | 30 |
Minimum turning radius | mm | 3870/6000 |
Crab-walking distance | mm | 200 |
Minimum ground clearance | mm | 420 |
Wheel base | mm | 4000 |
Steering angle | ± ° | 46 |
Swing angle | ±° | 12 |
Vibration frequency | Hz | 30-45 |
Nominal amplitude | mm | 0.4/0.72 |
Centrifugal force | kN | 82/150 |
Model and manufacturer |
| 4B3.9 |
Rated rotating speed | r/min | 2200 |
Rated power | kW | 93 |
Rated oil wear | g.kw/h | 229 |
Water tank capacity | L | 2×500 |
Fuel tank capacity | L | 220 |
