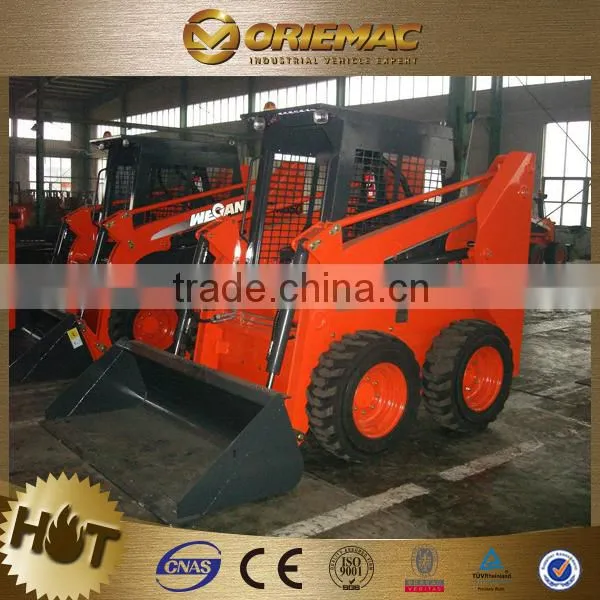

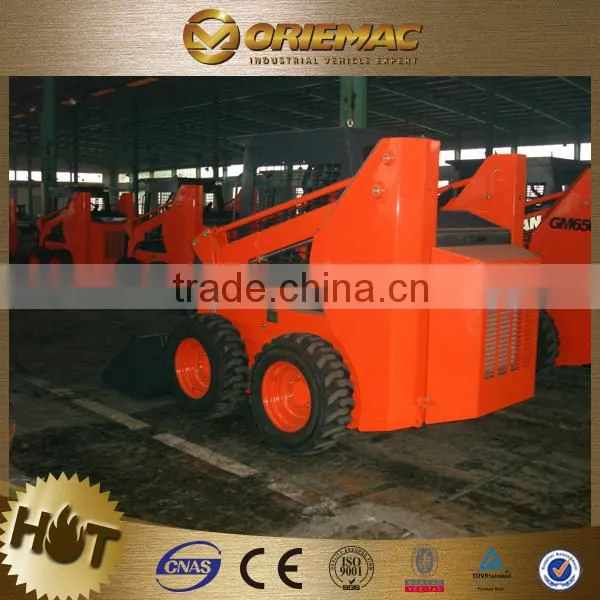

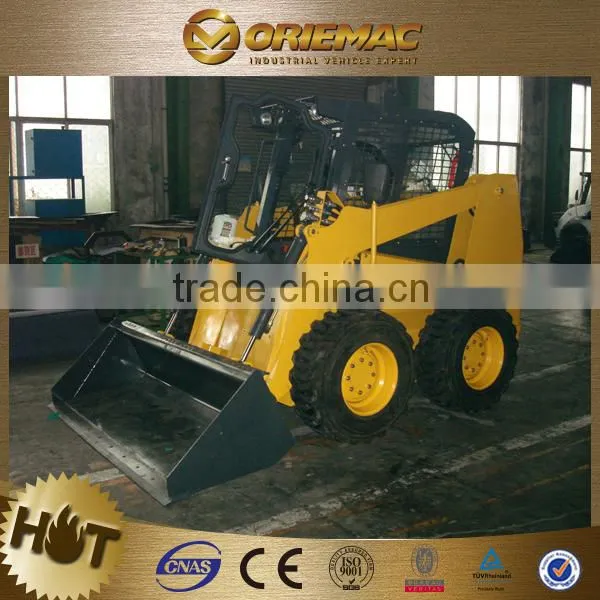

Skid Loader WECAN GM700 Skid Steer Loader
US$ 1 - 30,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
WECAN
Model Number:
GM700
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Heli CPCD30 3t Forklift PriceUS$ 15,000 - 16,000MOQ: 1 Set -
XCMG XP203 Mini Road Roller Compactor for SaleUS$ 1 - 45,000MOQ: 1 Unit
-
Longking CPCD50 5ton Diesel Forklift Truck With Different Mast for SaleUS$ 1 - 30,000MOQ: 1 Unit
-
Heli New 10 Ton CPCD100 Diesel Forklift With Solid Tire for Sale Supplier's ChoiceUS$ 1 - 30,000MOQ: 1 Unit
-
Longking 5ton Diesel Forklift Truck CPCD50 With Low Mast ForkliftUS$ 7,000 - 8,000MOQ: 1 Unit
Condition
New
Brand Name
WECAN
Model Number
GM700
Place of Origin
Jiangsu, China
Type
Skid Steer Loader
Moving Type
Wheel Loader
Dimension(Long * Breadth * High)
3850*2950*2650mm
Rated Load
748KG
Certification
ISO,CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
1.Good quality,low price.
2.Professional service and spare parts supply
3.Operating load:700kg
1. Integral structure made the machine more compact and durable.
2. An ideal arrange of component parts ,fully opened cab and rear cover,
Ensure easy access for maintenance.
3. Small sizes of width and height, active moving ,work in narrow space.
4. Electric fan in closed cab. Heater for optional, is more comfort and safe working condition for operator.
5. Adopt electrophoretic coating process, anti-rust.
| Model | GM700 | |||
| Chinese Engine | Rated Power (Kw) | 45Kw(61.2hp) | ||
| Rotating Speed (rpm) | 2500 | |||
| Noise | In Cab (dB) | ≤92 | ||
| Out of Cab (dB) | ≤106 | |||
| Hydraulic System | Cycle Time (s) | Raise | Dump | Lower |
| 3.5-4.5 | 2-2.5 | 3-3.5 | ||
| Performance | Operating Load (Kg) | 700 | ||
| Bucket Capacity (m3) | 0.4 | |||
| Max lifting force (Kg) | 1300 | |||
| Speed (Km/h) | 0-11.2 | |||
| Operating weight with standard bucket(Kg) | 2980 | |||
| Tyre | 10-16.5 | |||
DIMENSIONS | ||||
| Model | GM700 | Model | GM700 |
|
| Max height(mm) | 3980 | overall length to outside of tyre(mm) | 1555 |
|
| Dump height(mm) | 2320 | Ground clearance(mm) | 190 |
|
| Height to top of cab (mm) | 2130 | Clearance circuit front(mm) | 2200 |
|
| overall length with bucket(mm) | 3600 | Dump angle at max height(°) | 39° |
|
| Dump distance(mm) | 580 | Max attachment rollback when on ground(°) | 34° |
|
| overall length without bucket(mm)(mm) | 2850 | Angle of departure(°) | 23° |
|
| Bucket width(mm) | 1430 | |||
