Welcome to Oriemac!
As authorized dealer,we offer full kinds of construction machinery made by Chinese famous factory,including XCMG,SDLG,CHANGLIN,FOTON,LIUGONG,CHENGGONG.
Being in this line for 8 years ,we have exported thousands of products.You will get the
best service here and high quality products with competitive price!
Please contact us if you have any questions about the products.
Contact Person:Betty Ding
Skype: dgongzuo
Mobile/whatsapp/wechat: +86-182-2104-5926
Email:betty.ding at

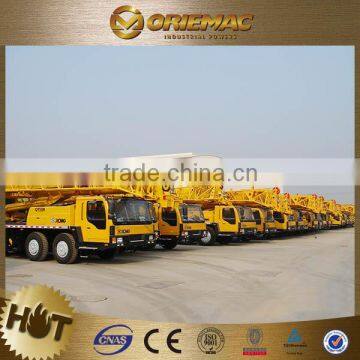

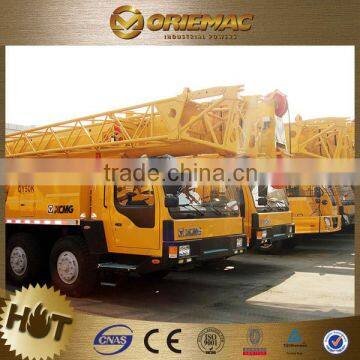

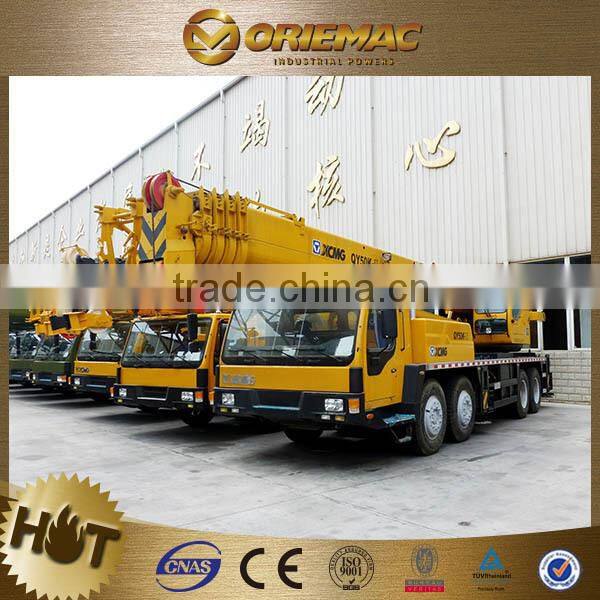

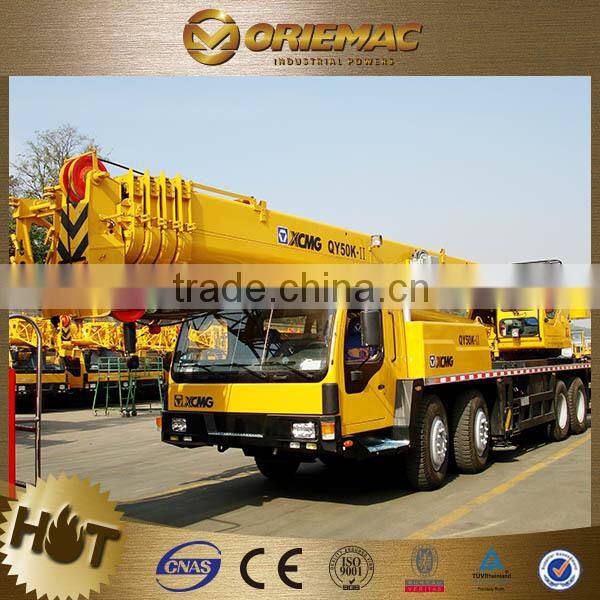

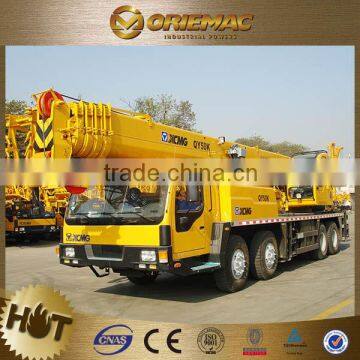

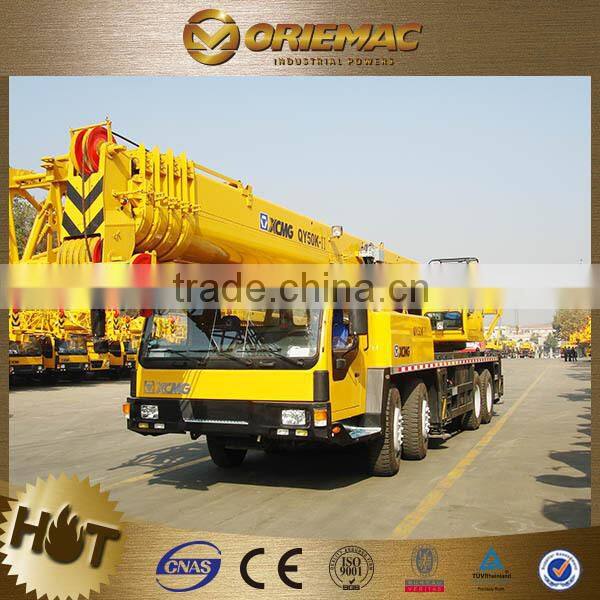

XCMG crane truck crane QY50KA 35 ton truck crane:
1. Main Technical Data Table in Travel configuration (Subject to improvement)
Category |
Item |
Unit |
Parameter |
|
Outline Dimensions |
Overall length |
mm |
13750 |
|
Overall width |
mm |
2800 |
||
Overall height |
mm |
3520 |
||
Wheel base |
1st and 2nd Axle |
mm |
1470 |
|
2nd and 3rd Axle |
mm |
4105 |
||
3rd and 4th Axle |
mm |
1350 |
||
Track |
Front wheel |
mm |
2304 |
|
Rear wheel |
mm |
2075 |
||
Weight |
Total vehicle mass in travel configuration |
kg |
41000 |
|
Axle load |
1st and 2nd Axle |
kg |
15000 |
|
3rd and 4th Axle |
kg |
26000 |
||
Power |
Engine rated power |
kw/(r/min) |
247/2200 |
|
Engine rated torque |
N.m/(r/min) |
1350/1400 |
||
Engine rated speed |
r/min |
2200 |
||
Travel Performance |
Max. travel speed |
km/h |
75 |
|
Min. travel speed |
km/h |
3 |
||
Min. turning diameter |
m |
24 |
||
Min. turning diameter at boom tip |
m |
26.8 |
||
Min. ground clearance |
mm |
261 |
||
Approach angle |
° |
17.5 |
||
Departure angle |
° |
11.6 |
||
Braking distance (at 30 km/h ) |
m |
≤10 |
||
Max. grade ability |
% |
40 |
||
2. Main Technical Data Table for Lifting Operation
Category |
Item |
Unit |
Parameter |
||
Main Lifting Performance |
Max. total rated lifting capacity |
t |
50 |
||
Min. rated working radius |
m |
3 |
|||
Turning radius at turntable tail |
mm |
3482 |
|||
Max. load moment |
Base boom |
KN.m |
1764 |
||
Fully-extended boom |
KN.m |
882 |
|||
Fully-extended boom + Jib |
KN.m |
547 |
|||
Outrigger span |
Longitudinal |
m |
5.91 |
||
Lateral |
m |
6.9 |
|||
Hoist height |
Base boom |
m |
11.5 |
||
Fully-extended boom |
m |
42.7 |
|||
Fully-extended boom + Jib |
m |
57.6 |
|||
Boom length |
Base boom |
m |
11.3 |
||
Fully-extended boom |
m |
42.7 |
|||
Fully-extended boom + Jib |
m |
57.7 |
|||
Jib offset angle |
° |
0, 15, 30 |
|||
|
Working Speed Parameter |
Elevating time |
Boom raising |
s |
88 |
|
Boom lowering |
s |
60 |
|||
Telescoping time |
Extend fully |
s |
180 |
||
Retract fully |
s |
140 |
|||
Max. slewing speed |
r/min |
2 |
|||
Outrigger extending and retracting time |
Outrigger beam |
Extending Simultaneously |
s |
30 |
|
|
Retracting Simultaneously |
s |
20 |
|||
|
Outrigger jack |
Extending Simultaneously |
s |
35 |
||
|
Retracting Simultaneously |
s |
30 |
|||
|
|||||
