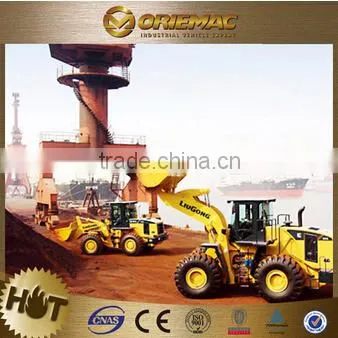

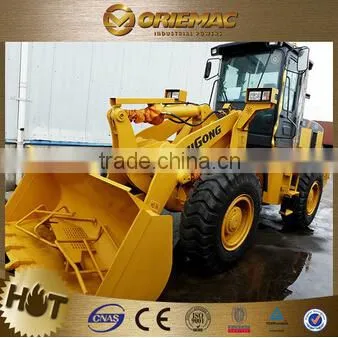

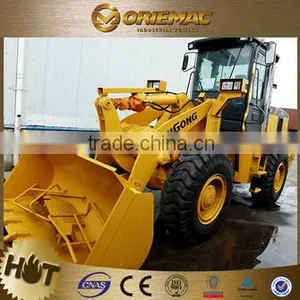

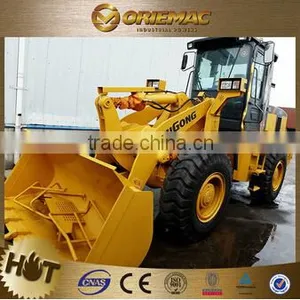

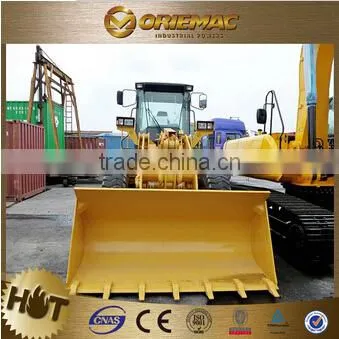

Popular brand LIUGONG Mini 1.6ton wheel loader CLG816C !!!
1.Engine:Tier 2 /Stage II,
2.Operation weight:5470 kg,
3.Rated power:47kw
Features:
Ultra-large comfortable safe cab space ·Ultra-large comfortable safe cab space with a panoramic visibility ·Dustproof,sound and shock absorption,heatproof plus ultraviolet radiation-proof ·Panoramic rearview mirror ·Professional-made and sofa driver seat
Duriable and efficient guarantee ·Toughly tested rigid structure proves stable ·The bucket is designed and produced with stiffener board to prevent bending deflection. ·Integral-type board prevent scattering of material and guaranteed the most material loading quantity
Outstanding Z zigzag linkage mechanism ·Powerful breakout force and lifting force means fast lifting and large loading. ·Large rollback angel provides steady material loading ability. ·Controls dump speed:lower dump speed guaranteed the safety of stevedore and linkage mechanism
Full parameters:
Parameters for Entire Loader
Bucket Capacity |
0.78m3 |
Rated Load |
1600kg |
Lifting Time of Acting Arm (Full Load) |
-s |
Sum of Three Items |
-s |
Traction |
-kN |
Max. Breakout Force |
62±5KNkN |
Max. Climbing Gradient |
-° |
Weight of Loader (with cab included) |
-kg |
Operating Weight |
5300±300kg |
Steering hydraulic system
stype |
Articulated frame.Full hydraulic steering |
Steering angle(left and right respectively) |
38° |
Steering pump |
gear pump(working pump also) |
Steering cylinder-bore X stroke |
Φ60mm×292mm |
Flow |
38L/min |
Relief valve setting |
14MPa |
Tire
Specification |
16/7020 |
Layer |
10 |
Working hydraulic system
system working pressure |
17.5MPa |
Boom cylinder-bore X stroke |
Φ80×605mm |
Tilt cylinder-bore X stroke |
Φ100×407mm |
