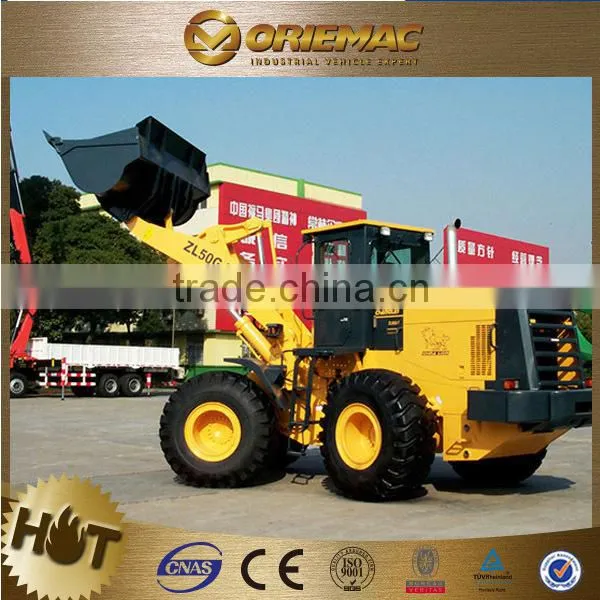

Popular brand mini wheel loader ZL50G with famous engine !!!
Specifications
Wheel loader ZL50G-6 Changlin
1.Power shift transmission(4 forward & 3 reverse)
2.KD switch
3.full hydraulic steering system
Wheel loader ZL50G-6 Changlin
Features of Wheel Loader:
1. 4 forward and 3 reverse power shift transmission
2. KD switch for easy and efficient operation
3. Load-sensed full hydraulic steering system dual-pump confluent flow working hydraulic and steering system
4. Combined seal cylinder achieves higher seal performance and more reliability
Specifications of Wheel Loader:
Overall Dimension | ||
1 |
Length(with bucket on ground) |
8215(mm) |
2 |
Width(to outside of wheels) |
2800(mm) |
3 |
Bucket width |
2946(mm) |
4 |
Height(To the top of the cab) |
3450(mm) |
5 |
Wheel base |
3350(mm) |
6 |
Tread |
2200(mm) |
7 |
Min. ground clearance |
450(mm) |
Main Technical Specification | ||
1 |
Rated load |
5000(Kg) |
2 |
Operating weight |
16300KG |
3 |
Rated bucket capacity |
3.0(m3) |
4 |
Max. breakout force |
160kN |
5 |
Max. traction |
150kN |
6 |
Max. gradient ability |
300 |
7 |
Max. dump clearance |
3050(mm) |
8 |
Dump reach |
1107(mm) |
9 |
Dump angle at any position |
≥450 |
10 |
Digging depth(with bucket bottom horizontal) |
165(mm) |
11 |
Min. turning radius |
|
|
(1) Outside of bucket |
6675(mm) |
(2) Outside of rear wheel |
5879(mm) |
|
12 |
Pivot angle frame |
400 |
13 |
Oscillating angle of rear axle |
+13o |
14 |
Lifting time of bucket |
≤5.8(sec.) |
15 |
Lowering time of bucket |
≤3.8(sec.) |
16 |
Dumping time |
≤1.2(sec.) |
17 |
Traveling speed(Km/h),4 forward and 3 reverse |
|
|
(1) 1st gear(F/R) |
6.7/6.7 |
(2) 2nd gear (F/R) |
12.2/12.2 |
|
(3) 3rd gear (F/R) |
25.6/25.6 |
|
(4) 4rd gear(F) |
35 |
|
