Bogie Trailer Bogie
Excellent performance
1.BPW bogie axle is for heavy duty 32 T ,28 T ,24 T
2.Spare parts is ex-changeable for BPW bogie .
3. Bogie is used on semi-trailer .our BPW type bogie is for heavy duty,each spare parts is ex-changeable for BPW bogie,good quality.One 20 feet container can fit six sets Bogies .
4: specification:
Alxle tube : 150x150x16
Brake size : Φ420x200
Bearing : ( 24 T 33213/33118 28 T 33215/32219 32 T 32314 /32222 )
Wheel bolt size : 10-M22X1.5
Wheel rim turn position : Φ280
Axle space :1550
Technical parameter
Model |
Rated Load(kg) |
Axle Tube(mm) |
Brake Lining |
Dual Spacing(mm) |
Distribution |
Tyre Screw |
Axle Spacing(mm)
|
|
KTDC24
|
24000 |
150*150*12 |
Φ420*200 |
1850 |
Φ335 |
10-M22 |
1400 |
|
KTDC28
|
28000 |
150*150*14 |
Φ420*200 |
1850 |
Φ335 |
10-M22 |
1550 |
|
KTDC32
|
32000 |
150*150*16 |
Φ420*200 |
1850 |
Φ335 |
10-M22 |
1550 |
Advantages
1.Full after-sales service ,Superior quality,Reasonable price ,Timely delivery .
2.The suspension can be produced by customers request.
3.Our suspension are popular sold to many countries in USA, Middle East and Southeast Asia and Africa etc.
4.We are manufacturer,We have past ISO/TS 16949 Certificate.

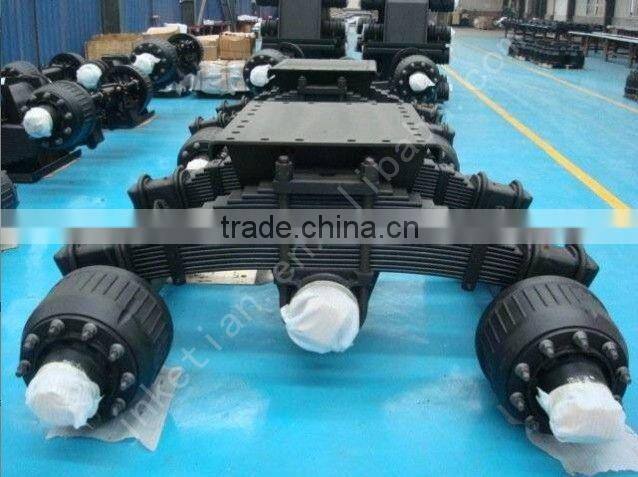

some main pictures
Jinan Ketian Auto Parts Co.,Lt is located in Jinan,Shandong province and our factory is at Liangshan county,which is a leading manufacturer and specializes in suspension systems,axles,landing gears,fifth wheels,king pins and other trailer parts.
our factory
our show

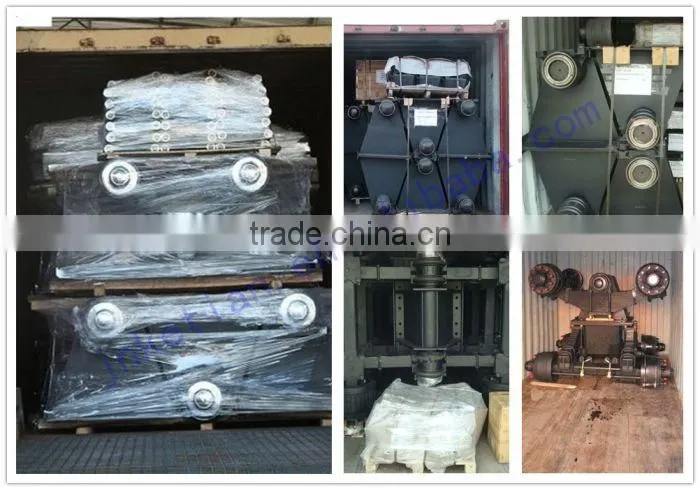

packing

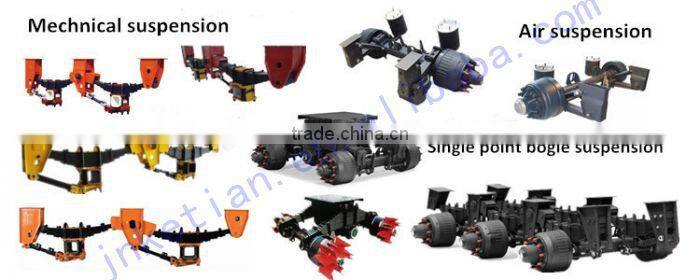

related products
Contact me:
Skype:leahyan03
Tel:86-13953162553
