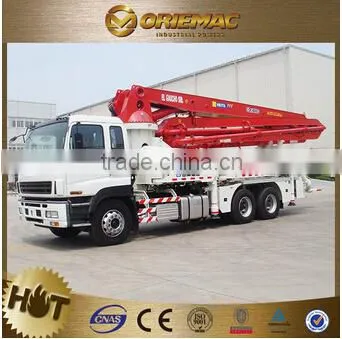

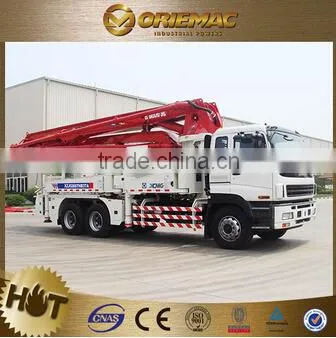

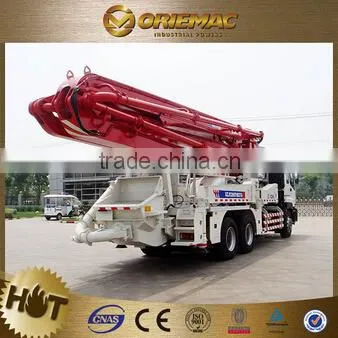

XCMG HB41 Small Portable Concrete Pump for Sale
US$ 1,000 - 567,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Power Type:
Diesel
Place of Origin:
Jiangsu, China
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale !!! HB41 Concrete PumpUS$ 1,000 - 567,000MOQ: 1 Set -
2015 New Price XCMG HB41 41m Portable Not Used Concrete Pump TruckUS$ 1,000 - 567,000MOQ: 1 Set
-
2015 New Price XCMG HB41 41m Concrete Pump TruckUS$ 1,000 - 567,000MOQ: 1 Set
-
Hot Selling!!! HB44 Truck-Mounted Concrete PumpUS$ 1,000 - 567,000MOQ: 1 Set
-
2015 China Brand XCMG HB44 Truck Mounted Concrete Pump for SaleUS$ 1,000 - 567,000MOQ: 1 Set
Condition
New
Power Type
Diesel
Place of Origin
Jiangsu, China
Brand Name
xcmg HB41
Model Number
HB41
Weight
30500kg
Dimension(L*W*H)
11100*2500*3990mm
Certification
ce ,iso
Warranty
1 year xcmg HB41
After-sales Service Provided
Engineers available to service machinery overseas
XCMG HB41 small portable Concrete Pump for sale !
Technical Parameter
| Travel | ||||||
|---|---|---|---|---|---|---|
| Category | Item | Unit | Parameter | |||
| Chassis | Model | FS1ERV | Actros3341 | FM | ||
| Manufacturer | Germany | |||||
| Max. speed | km/h | 85 | 85 | 90 | ||
| Max. gradeability | 46.30% | 61.90% | 30% | |||
| Min. turning diameter | m | 17.8 | 19.8 | 18.4 | ||
| Brake distance | m | ≤7 | ≤7 | ≤7 | ||
| Wheelbase | mm | 4640+1310 | 4500+1350 | 4900+1370 | ||
| Tread (front/rear) | mm | 2050/1855 | 2034/1804 | 2019/1834 | ||
| Approach angle/departure angle | . | 22/10 | 16/10 | 18/10 | ||
| Min. clearance | mm | 245 | 300 | 270 | ||
| Tyre specification | 295/80R22.5 | 315/80r22.5 | 12.00R20 | |||
| Engine | Model | E13C TL | OM501LA.|||/17 | D13 | ||
| Output power | kw/(r/min) | 302/1800 | 300/1800 | 294/1800 | ||
| Max. torque | N.m/(r/min) | 1618/1100 | 2000/1080 | 2000/1050 | ||
| Displacement | L | 12.9 | 11.946 | 12.8 | ||
| Emission Standard | Nation III GBIII | Nation III GBIII | Nation III GBIII | |||
| Other | Dimension (length x width x height) | mm | 11100x2500x3990 | 11060x2500x3990 | 11350x2500x3990 | |
| Total vehicle weight | kg | 30500 | 30600 | 31400 | ||
| Fuel tank capacity | L | 400 | 400 | 400 | ||
| Fuel consumption per 100km | L/100km | 33.3 | 40 | 40 | ||
| Pumping operation | ||||||
| Category | ItemITEM | UnitUNIT | ParameterPARAMETER | |||
| Pumping system | Theoretical output(high pressure/low pressure) | m³/h | 70/140 | |||
| Concrete pumping pressure(high pressure/low pressure) | Mpa | 11.8/6.38 | ||||
| Theoretical pumping times(high pressure/low pressure) | times/min | 15/27 | ||||
| Max. diameter of pumping concrete aggregate | mm | 40 | ||||
| Feeding height | mm | 1530 | ||||
| Pumping slump range | cm | |||||
| Placing boom | Reach height | m | 40.5 | |||
| Reach depth | m | 27.5 | ||||
| Slewing radius | m | 36 | ||||
| Slewing angle | . | ±270 | ||||
| 1st boom stretch angle | . | 90 | ||||
| 2nd boom stretch angle | . | 180 | ||||
| 3rd boom stretch angle | . | 180 | ||||
| 4th boom stretch angle | . | 240 | ||||
| 5th boom stretch angle | . | 250 | ||||
| Outrigger span | Outrigger longitudinal span | mm | 7800±50 | |||
| Front outrigger transverse span | mm | 8350±50 | ||||
| Rear outrigger transverse span | mm | 7200±50 | ||||
| Other | Dosing type | S valve | ||||
| Lubricating method | Automatic lubrication | |||||
| Controlling method | Manual/remote control | |||||
| Water tank capacity | L | 600 | ||||
| Max. pressure of water pump | Mpa | 2 | ||||
