5pcs/set 3D Printer Endstop Mechanical Endstop Switch Module V1.2 for RepRap Ramps1.4 With Cables Micro Switch
US$ 0.1 - 1
MOQ: 1 Set
Key Specifications
Get Latest Price
Model Number:
Endstop
Place of Origin:
Guangdong, China
Brand Name:
OEM
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
3D Printer Accessories 10pcs/set KW4-3Z-3 Straight Shank Micro Switch Limit Switch 250V5A SS-5GL Endstop GreenUS$ 0.1 - 6.98MOQ: 1 Set -
3D Printer Electronic Accessories Dual Power Supply 12V/24V PCB Heatbed MK2BUS$ 11.98 - 11.98MOQ: 1 Piece
-
5pcs/set A4988 Stepper Motor Driver 3D Printer Step Stick for RepRap Prusa Mendel Ramps 1.4 With Heat SinksUS$ 1 - 12.89MOQ: 1 Set
-
3D Printer Parts 5A 250V Three-legged Endstop Black Mechanical Limit Switch With Shank Touch Panel Tact SwitchUS$ 0.7 - 0.8MOQ: 10 Pieces
-
3D Lenticular Printer KW4-3Z-3 Straight Shank Micro Switch Limit Switch 250V5A SS-5GL Endstop GreenUS$ 0.7 - 0.8MOQ: 10 Pieces
Model Number
Endstop
Place of Origin
Guangdong, China
Brand Name
OEM
Product Description

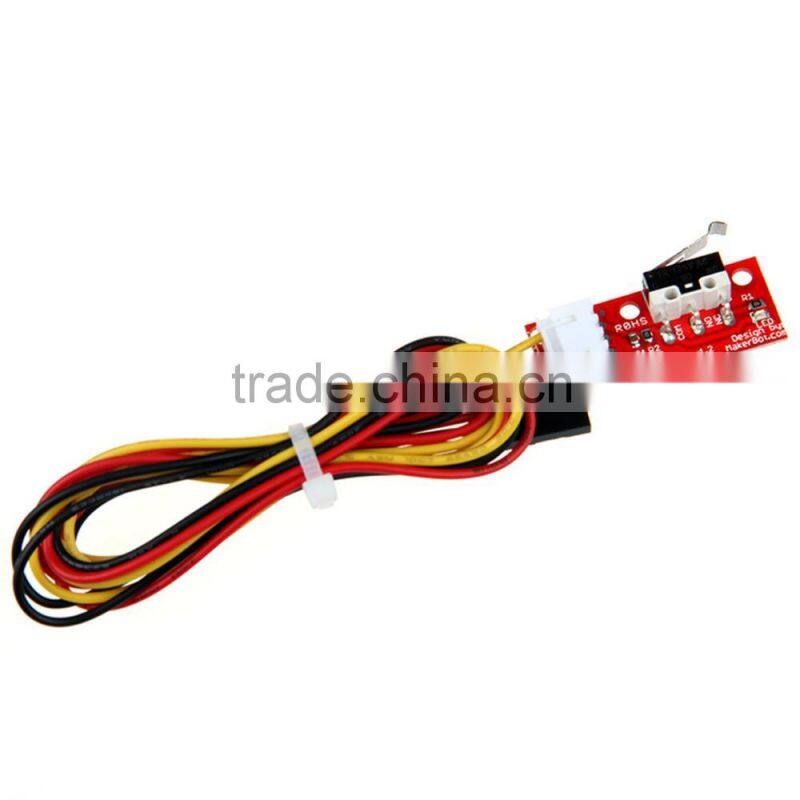

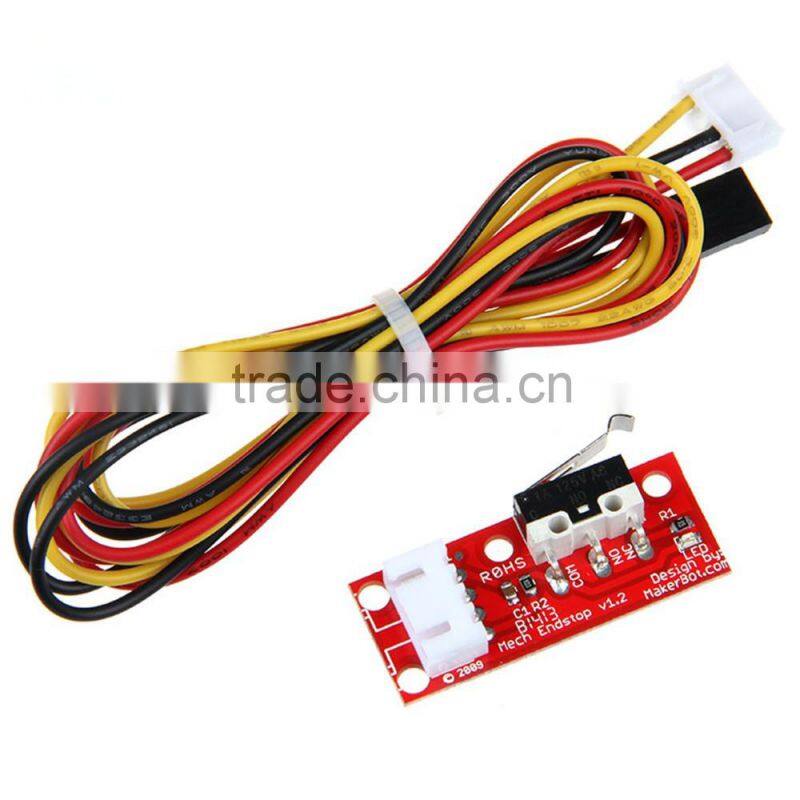

5pcs/set 3D printer endstop Mechanical Endstop Switch Module V1.2 for RepRap Ramps1.4 with cables
Package List :( With anti-static bags, each bag includes the followings)
Mechanical Endstop Switch Module*1pc
3-pin 70cm cable (using line 22, 17 shares of copper wire)*1pc
Customized with high quality wire, it can be resistant to 2A and 300V voltage. Insulation is very wide temperature range(it can reach 80 degrees), which is much better than the ordinary thin copper wires. Not easy to pull off, while plug is convenient.

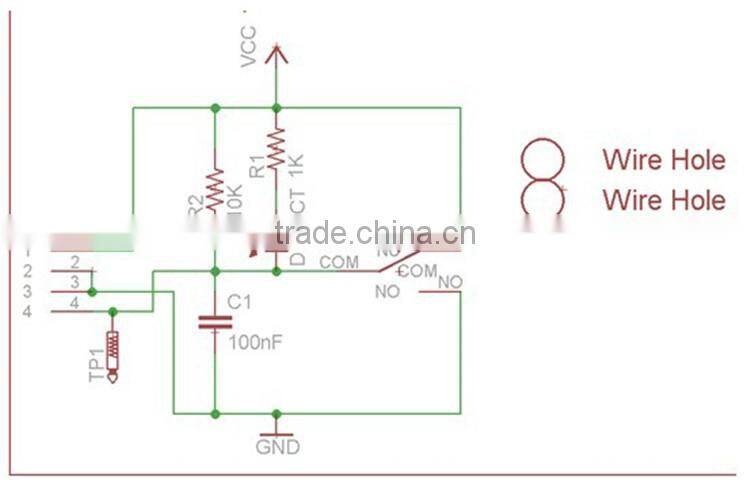

Mechanical limit switch Schematic
Mechanical switch Size: 42mm * 18mm
Analytical principle
1 end: power supply (VCC)
2 end: ground (GND)
3 end: connect with 2
4 end: Signal
When touching no obstacles, signal terminal connects VCC, take the value of the high level, namely 1.
When touching obstacle, the signal terminal connect GND by mechanical switch, take the value of low, namely 0.
Based on the above logic, you can set to the low level when trigger, the microcontroller receives a low level (1), to control the motor stops.
If you use Marlin firmware, Configuration.h not need to modify the appropriate configuration files, keep the default:
const bool X_ENDSTOPS_INVERTING = true ;.
const bool Y_ENDSTOPS_INVERTING = true;
const bool Z_ENDSTOPS_INVERTING = true;
Tip: Genarally, the system need at least three mechanical switches.
Packaging & Shipping

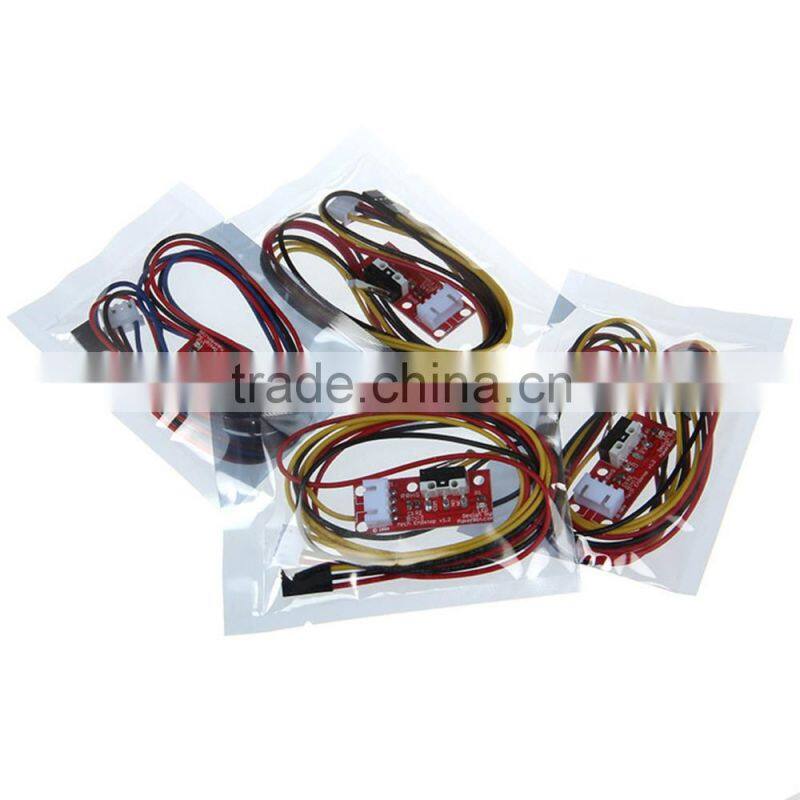

With anti-static bags, each bag includes the followings
Mechanical Endstop Switch Module*1pc
3-pin 70cm cable (using line 22, 17 shares of copper wire)*1pc
- Unit Type:
- lot (5 pieces/set)
- Package Weight:
- 0.120kg (0.26lb.)
- Package Size:
- 10cm x 10cm x 5cm (3.94in x 3.94in x 1.97in)
Our Services
Good after-sell servies .If you have any question during the procession,please free to contact us for support ,we would be glad to be at you service.
Wholesale support,If you want to purchase the products in large quantity or customized,please leave you messages with you detailed needs.
Warranty ,We provide 6 months warranty for 3D printers and 3 months for the accessories since the package received
