Extruder 3D Printer Kit Chitu Mini V5.1 Single Extruder Motherboard Thermistor with 2.8" Touch Screen
- 10000 Piece / Pieces per Month
- ShenZhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Model Number: | pr-Mini V5.1, 3D Printer Controller | Type: | Voltage Regulator | Brand Name: | Hongansheng |
Place of Origin: | Guangdong, China |
Product Description
Extruder 3D Printer Kit Chitu Mini V5.1 Single Extruder Motherboard Thermistor with 2.8" Touch Screen Support WiFi APP Control
Shipping List:

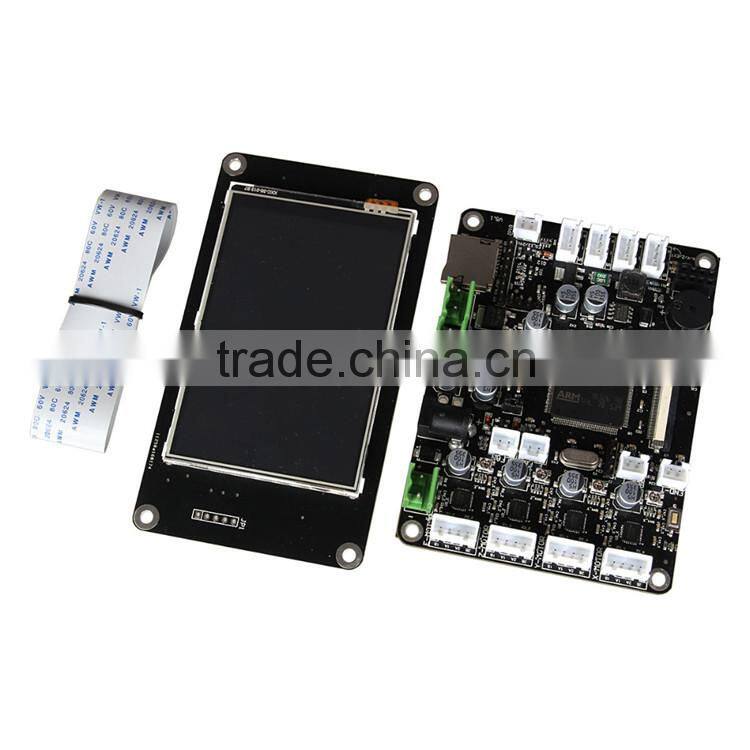

Chitu Mini V5.1 motherboard (with Thermistor) + 2.8" TFT Touch Screen + 50cm FFC cable
Product Features
•Support Color Touch Sceeen with no lag
•ARM STM32 Microprocessor
•Allegro A4988 Motor Driver (1/16 microstepping)
•Compatible with most structures (Delta/Hbot/cartesian)
•Uses the self developed ChiTu firmware with important data and settings (closed source)
•Uses configuration file to anchor the firmware, setup your printer without worry for firmware error.
•Very stable and enduring long print hours.
• Optimized PID parameters in the firmware.
• 12/24V Compatible.
• Not limited to any print size, build as big printer as you want!
• Compatible With 4 motors interface!
• Upgradeable design letting you add extra hardware to your 3D printer board: Wi-Fi and extra powder module add-on.
• Support Wi-Fi- with the Wi-Fi-module add-on you can equip your ChiTu Mini to become wireless. Controll and print all wireless.
• Includes app for Wi-Fi control.
• Limit switches can be used to achieve broken filament detection and automatic leveling
• Supports bilingualism- English and Chinese (our add-on-service let you change the interface to your local language)
• Compatible with Simplify3D, Repetier-host, Octoprint, Astroprint.
• Compatible with most slicer such as Cura, Slic3r, preform etc.
• Auto-leveling

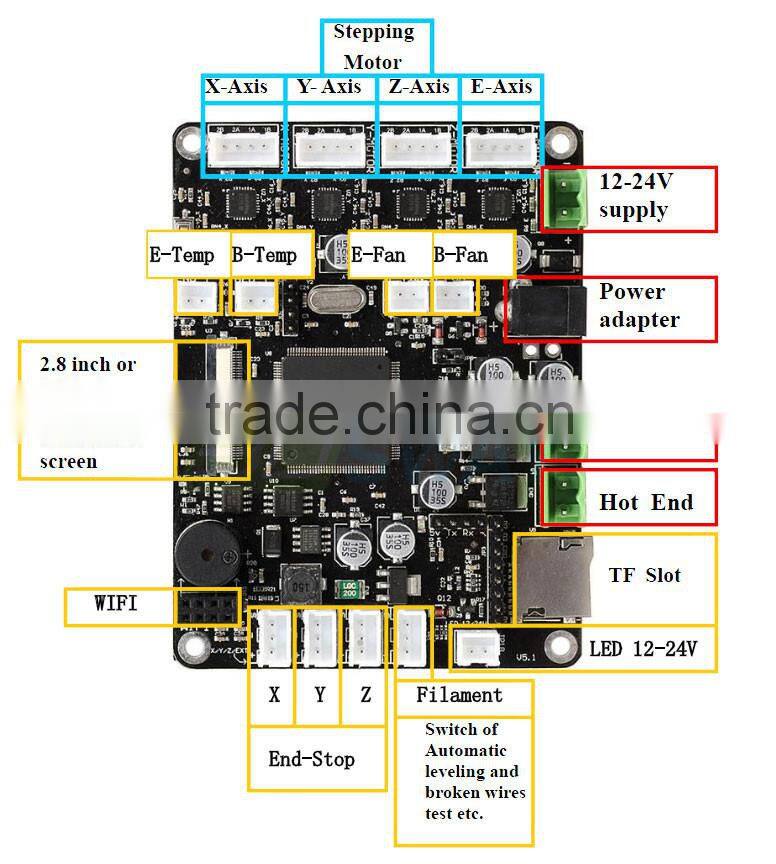

Mainboard Parameters

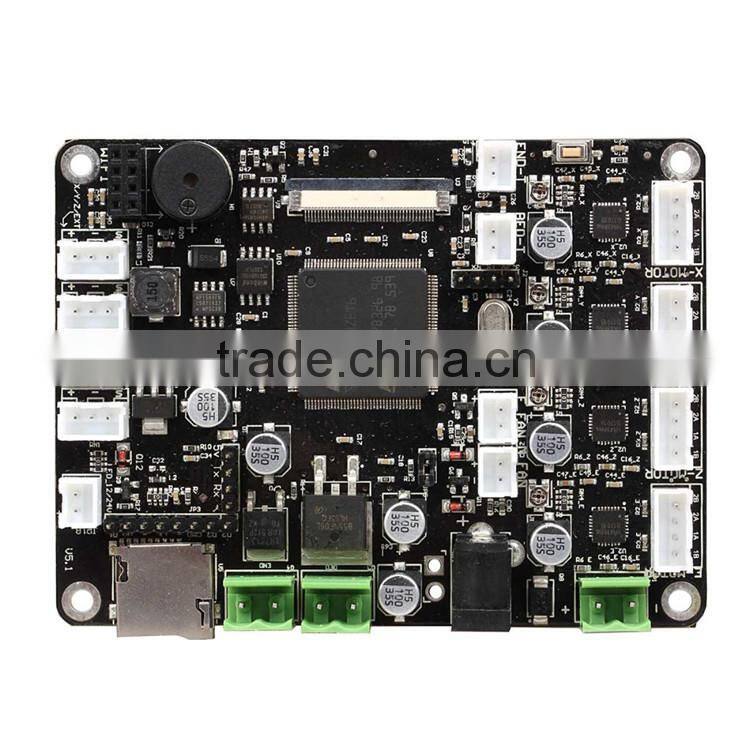

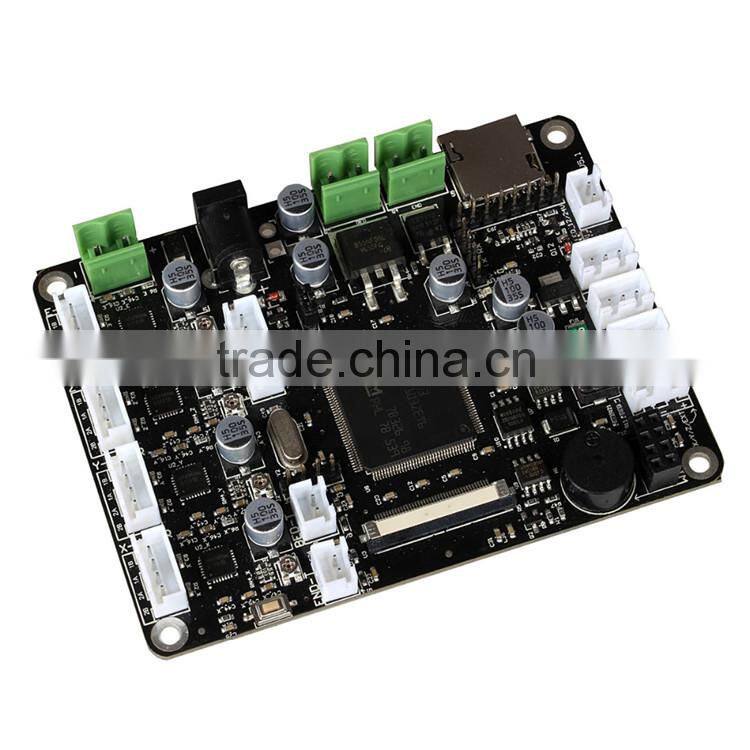

External Dimension: 100*75mm
Microprocessor: ARM chip STM32 (STM32F103ZET6)
Input Voltage: 12V~24V, 10~15A
Power Interface: Ordinary switch power supply or ordinary adapter
Motor Driver: Allegro A4988 (1/16 microstepping)
Motor Driven Interface: Single head extrusion features 4 motor interface & 16 segments
Temperature Sensor Interface: 2 paths of 100K NTC (thermistor)
Color Touch Screen: 2.8 or 3.5 inches of TFT
Connectivity: SD card, square USB that is convenient for plug and play; communication Baud Rate is 115200 (Wi-Fi if you have the Wi-Fi module)
File Format Supported: G-code
Machine Structure Supported: XYZ type, Ultimaker type, Hbot type, Delta, Kossel and CoreXY type.
Recommendation of Software: Cura/Repetier-host/Makerware/Simplify3d/CBD
App provided from CBD-Tech: Yes, both need Wi-Fi to work- Android and IOS (english version TBA)

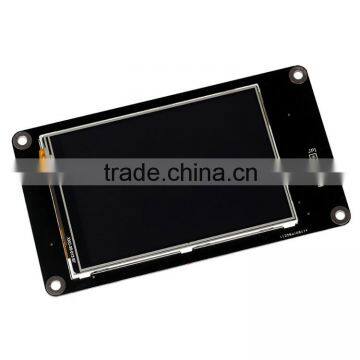

2.8 Inch Touchscreen Size: 60mmx100mm
3.5 Inch Touchscreen Size: 65mmx115mm
Manual: Yes full english manual and schematics
Drivers: Yes, full english drivers included
Expandable modules: Wi-Fi module (completely open communication protocol) , extra power module ,SD card module and SB drive module.

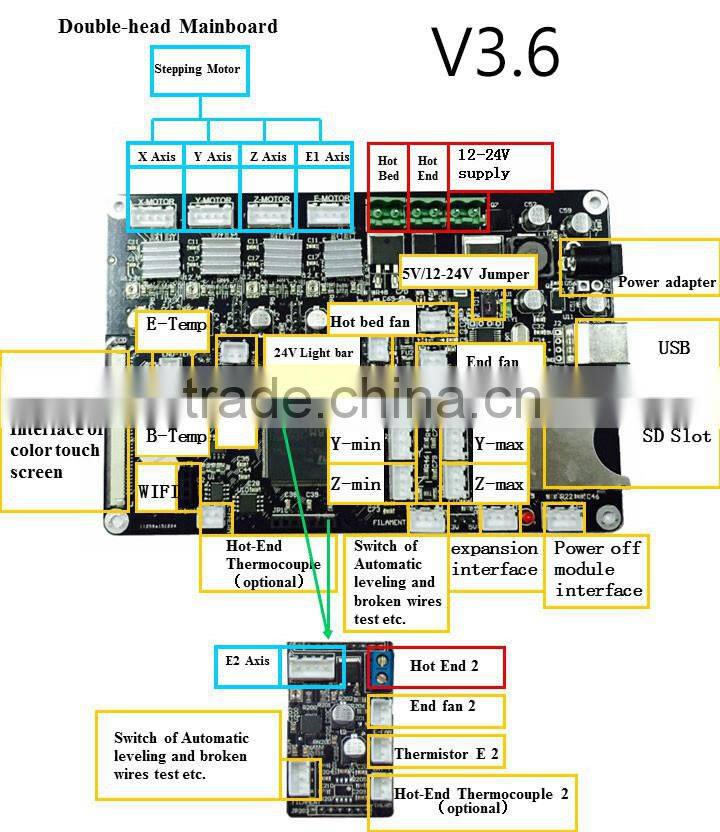

What are the differences between ChiTu V3.6 and ChiTu Mini V5.1?
ChiTu Mini V5.1 was made with the aim to cut down price and let manufacturers enjoy a smaller 3D printer controller board.
While ChiTu Mini offer the same prestanda as ChiTu V3.6 it lacks some features.
Following parameters set it apart from ChiTu V3.6:
- smaller in size
- cheaper
- only using thermistor
- only support single extrusion
- do not support power module add-on (only the extra power module add-on (also called MOS) and Wi-Fi add-on)
- temperature sensor interface: Mini only have 2 paths 100K NTC (while ChiTu V3.6 have 3 paths)
-can only connect 4 motots while CBD Chitu 3.6 can use 5 motors
- No USB integrated USB slave only SD card integrated slave
Please click the pictures below for more details about the modules.
Good after-sell servies .If you have any question during the procession,please free to contact us for support ,we would be glad to be at you service.
Wholesale support,If you want to purchase the products in large quantity or customized,please leave you messages with you detailed needs.
Warranty ,We provide 6 months warranty for 3D printers and 3 months for the accessories since the package received
Hongansheng is a manufacture specialized in developing and distributing 3D printer Parts & accessories,and filaments, Welcome to contact us for more details about 3D printers and business opportunity
