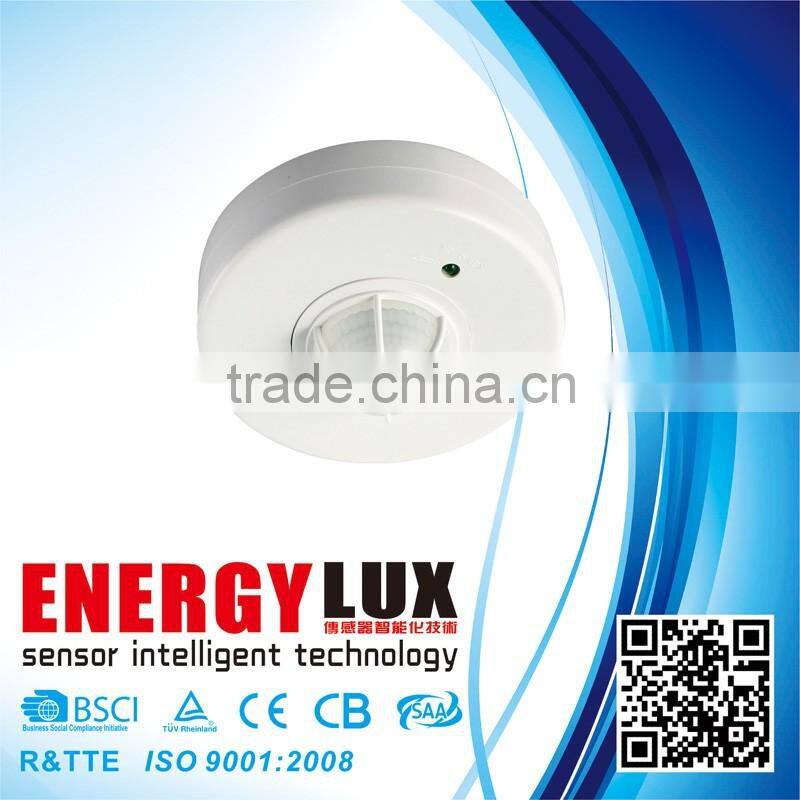

ES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCH

ES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCH thumbnail-1
ES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCH photo-1
US$ 1 - 4 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Energylux
Model Number:
ES-P13A
Contact Supplier Request Quote Chat Now
Ningbo Energylux Optoelectronics Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo/Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Energylux
Model Number ES-P13A
Usage Speed Sensor
Theory Inductance Sensor
Output Switching Transducer



Product Description

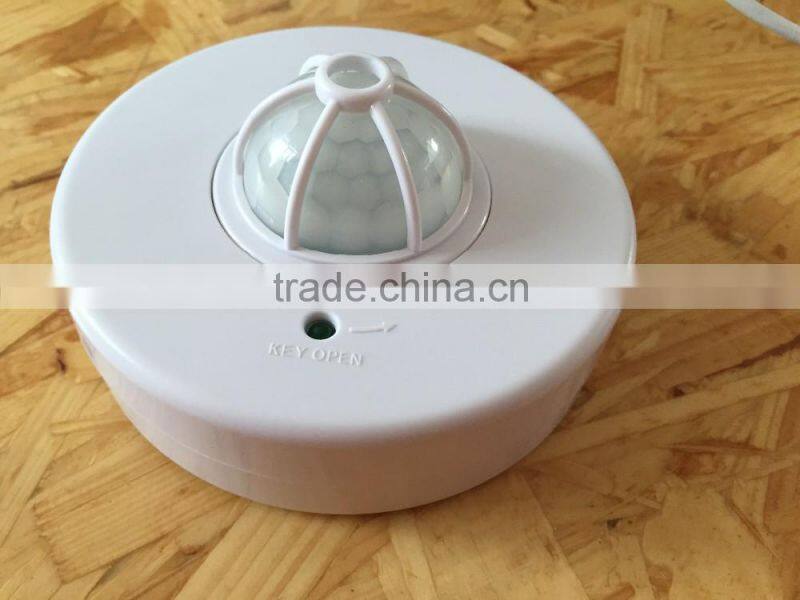

ES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCH

saving-enegy switch(low consumption) wide used and very convenient





MODEL ES-P13A




ES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCH
DETECTION RANGE 6M
DETECTION ANGLE   360°
POWER SOURCE

110V-130V/AC            220-240V/AC
POWER FREQUENCY 50/60HZ
RATED LOAD

800W(110-130V/AC)

1200W(220-240V/AC)
TIME SETTING 10sec-7±2min
WORKING HUMIDITY <93%RH
WORK TEMPERATURE -10°C~+40°C
INSTALLING HEIGHT 2m-4.5m
NET WEIGHT PER CARTON(KGS)  7.5
GROSS WEIGHT PER CARTON (KGS) 10.8
QUANTITY PER CARTON(PCS) 50
PACKING SIZE(CM³)

63*34.5*25.8



FUNCTION

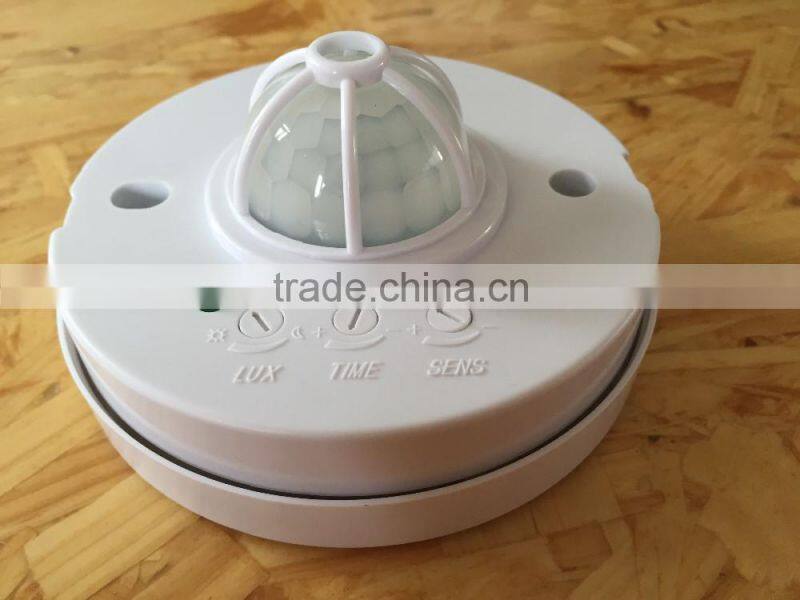

  • Identify day and night automatically. Can adjust ambient light according to your desire: when turn to SUN (max), it will work in the daytime and at night. When turn to MOON (min), it will only work under less than 3LUX circumstance. As for Adjustment, please refer to testing way.
  • Time-delay is added continually: when it receives the second induction signal after the first inductor, it will compute time once more on the rest of the first time-delay basic (Set time) .
  • Time-delay adjustment: it can be set according to your desire. The minimum is 10±3 sec; the maximum is 7±2min.

INSTALLATION:

  • INSTALLATION:  (see the figure)

    • Ø Switch off the power.

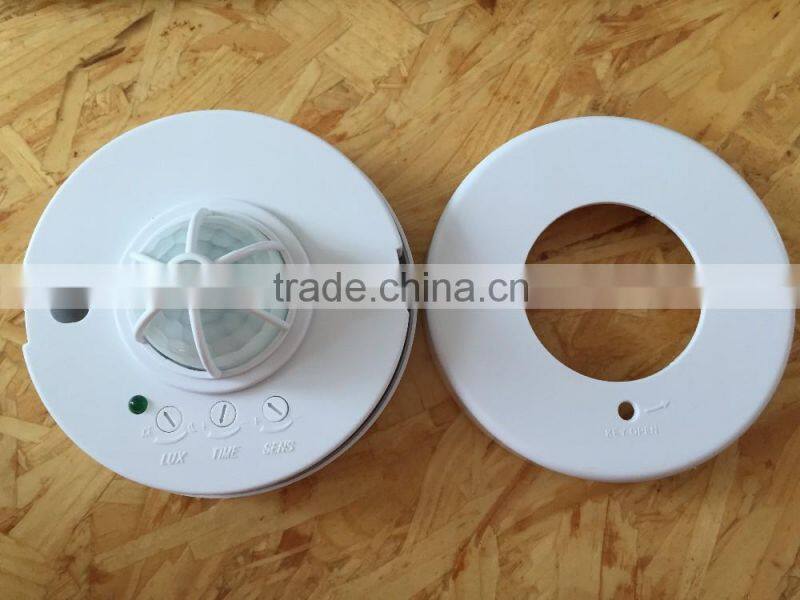

    • Ø Turn clockwise the bottom-  stand and take off it. The power wire cross the hole in the middle of bottom-stand.
    • Ø The bottom-stand is fixed on the selected position with inflated screw.

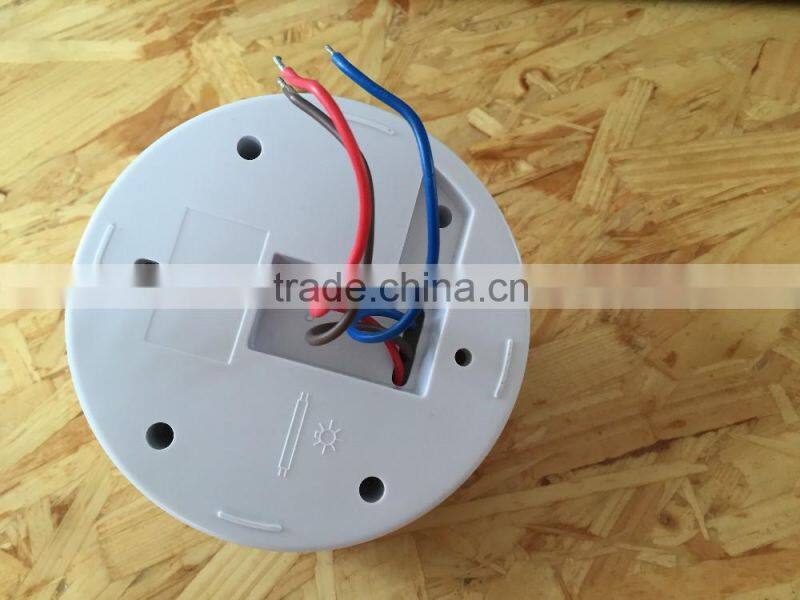

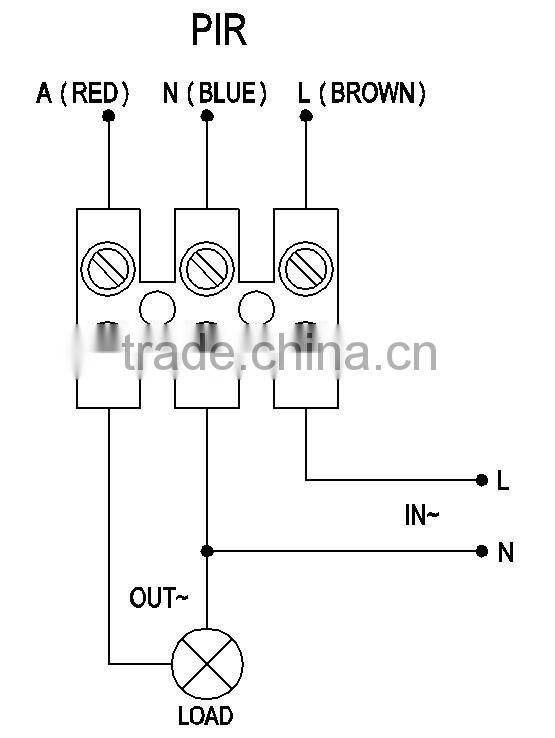

    • Ø Connect the power and the load into the connection-wire column of the sensor according to connection-wire diagram.
    • Ø The sensor aimed at the mouth of bottom-stand and turned anti-clockwise.
    •
  • ES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCHES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCHES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCHES-P13A INFRARED MOTION SWITCH/ MOTION DETECTOR/SMART SWITCH
Packaging & Shipping



PACKAGING DETIAL         one gift box per piece, 50pcs one carton(adjustable)                       By sea/air(avaible)
N.W/G.W(KGS)               7.5/10.8
PACKING SIZE(CM)         63*34.5*25.8







Company Information



Energylux founded in 1989, starting from rubber business. Than move to smart electronical business, our product list as following:

  • PIR motion sensor series
  • Microwave sensor series
  • PIR sensor lamp series
  • Microwave sensor lamp series
  • PhotocellSensor bulb and sensor holder
  • Smoke alarm
