Specifications
festo solenoid valvelow price and good quality
FESTO original

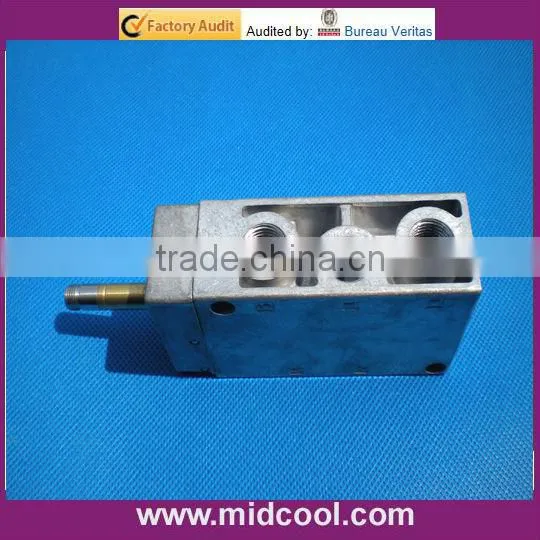

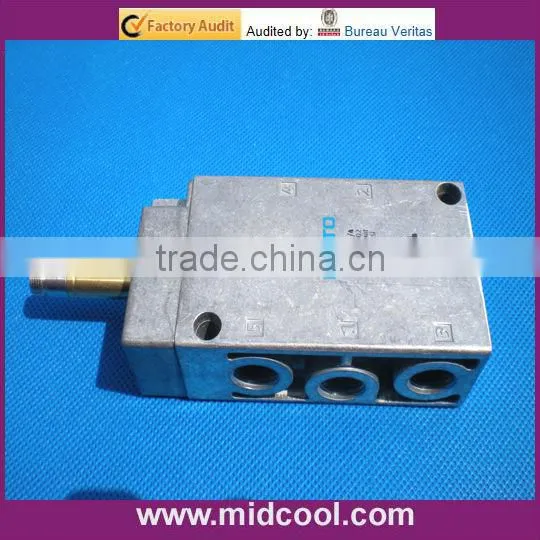

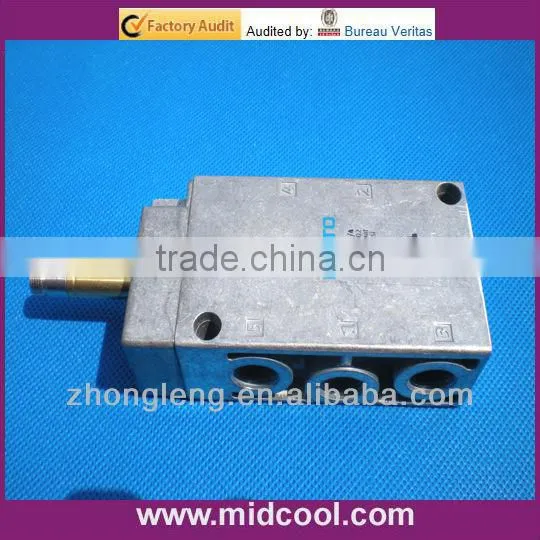

high quality festo solenoid valve
General technical data | |||
Pneumatic connection |
G1/8 |
G1/4 |
G1/2 |
Valve function |
5/2-way, single solenoid |
||
Constructional design |
Poppet valve |
||
Sealing principle |
Soft |
||
Actuation type |
Electrical |
||
Type of reset |
Mechanical spring |
||
Type of control |
Piloted |
||
Direction of flow |
Direction of flow |
||
Pilot air supply |
Internal or external |
||
Exhaust function |
With flow control |
||
Manual override |
Detenting |
||
Type of mounting |
Via through holes |
||
Mounting position |
Any |
||
Nominal size |
5 |
7 |
14 |
Standard nominal flow rate |
500 |
1000 |
3700 |
Product weight |
270 |
290 |
1135 |
Operating and environmental conditions | |||
Pneumatic connection |
G1/8 |
G1/4 |
G1/2 |
Operating medium |
Compressed air in accordance with ISO 8573-1:2010 [7:4:4] |
||
Note on operating/pilot medium |
Operation with lubricated medium possible (in which case lubricated operation will always be required) |
||
Internal pilot air supply |
1.8 … 8 |
2.2 … 8 |
2 … 8 |
External pilot air supply |
0 … 10 |
0 … 8 |
0 … 8 |
Pilot pressure |
1 … 8 |
1.5 … 8 |
1.5 … 8 |
Ambient temperature |
–5 … +40 |
||
Temperature of medium |
–10 … +60 |
||
| PNEUMATIC CONNECTION | TYPE |
G1/8 |
MFH-5-1/8 |
| G1/4 | MFH-5-1/4 |
