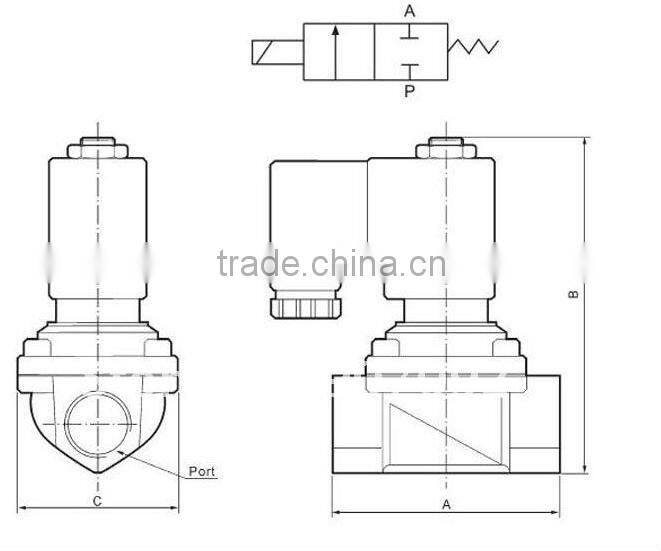

PU220-04A G1/2'' Size Direct Drive Solenoid Valve Model2/2 Way Brass N/C
US$ 1 - 1,000
/ Piece
1 Piece(Min. Order)
- Ningbo or Shanghai
- T/T Credit Card
You May Like
-
0955505 1'' Port Size Normally Open Diaphragms Water Solenoid Brass Valves
-
2S250-25-G Underwater Solenoid Fluid Control Valves Waterproof
-
2W160-15 2 Inch Water Solenoid Valve Brass 2 Way
-
2L300-40 12v Solenoid Valve Pneumatic 2/2 Way
-
Asco Pulse Valve Right Angle Pneumatic SCG353A044
-
DNC63x50 Single Acting Air Gripper Cylinder Spring Return Quality Choice
Product Details
| Standard or Nonstandard | Standard | Structure | Control | |
| Pressure | Medium Pressure | Power | Solenoid | |
| Material | Brass | Temperature of Media | Normal Temperature | |
| Media | Water | Port Size | 1/8-2'' | |
| Place of Origin | Zhejiang, China | Model Number | PU | |
| Brand Name | MIDCOOL |
Product Description
Specifications
PU220-04A G1/2'' Size Direct Drive Solenoid Valve Model2/2 Way Brass N/CHigh quality,low price.
Our goods are 100% brand new.
PU220-04A G1/2'' Size Direct Drive Solenoid Valve Model2/2 Way Brass N/C
Specification:
PLS CHECK WITH US BEFORE U PAY THE AMOUNT,WE WOULD MODIFY THE PRICE FOR U.
Product Description:
Model | PU220-02 | PU220-04 | PU220-06 | PU220-08 |
Fluid | Air, Water, Oil | |||
Operation | 220: Direct Drive Type 225: Guid Type | |||
Type | Normal close type | |||
Aperture of fl ow rate(mm) | 2.3 | 13 | 20 | 25 |
Cv value | 0.18 | 4.00 | 8.60 | 11.00 |
Joint pipe bore | G1/4″ | G1/2'' | G3/4'' | G1'' |
Operation fl uid viscosity | 50 CST Below | |||
Operating pressure | 0 ~ 0.7MPa | |||
Max. Proof pressure | 1.05MPa | |||
Operating temperature | -5 ~ +80C | |||
