AF4000-06D 3/4'' Air Filter With Auto Drain Metal Body

Name: AF4000-06D 3/4'' Air Filter With Auto Drain Metal Body
Brand: MIDCOOL
Availability: InStock

FOB Price

US$ 1 - 1,000 / Piece

1 Piece(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	MIDCOOL
Model Number	AF4000-06D

AF4000-06D 3/4'' Air Filter With Auto Drain Metal Body
High quality,low price.
Our goods are 100% brand new.

AF4000-06D 3/4'' Air Filter With Auto Drain Metal Body

Specification:

Ensured pressure Resistance	1.5MPa(15kgf/cm²)
Highest Working Pressure	1.0MPa(10kgf/cm²)
Ambient and Fluid Temperature	5-60C
* Filter Precision	25 µm
Container Material	Polycarbonate
Protective Cover	AF1000-2000(Not Available)

Model	Specifications				Accessories	Drain Function	Auto Drain Model
	* Rated Flow (L/min)	Port Size (G)	Bowl Capacity (CM³)	Weight (kg)	Bracket
AF1000-M5	110	M5	4	0.07	-	Manual Drain
AF2000-01	750	1/8	15	0.19	B240		AF2000-01D
AF2000-02		1/4					AF2000-02D
AF3000-02	1500	1/4	20	0.29	B340	a. Air Shut off Drain b. Manual Drain	AF3000-02D
AF3000-03		3/8					AF3000-03D
AF4000-03	4000	3/8	45	0.55	B440		AF4000-03D
AF4000-04		1/2					AF4000-04D
AF4000-06	6000	3/4	45	0.58	B540		AF4000-06D
AF5000-06	7000	3/4	130	1.08	B640		AF5000-06D
AF5000-10		1					AF5000-10D

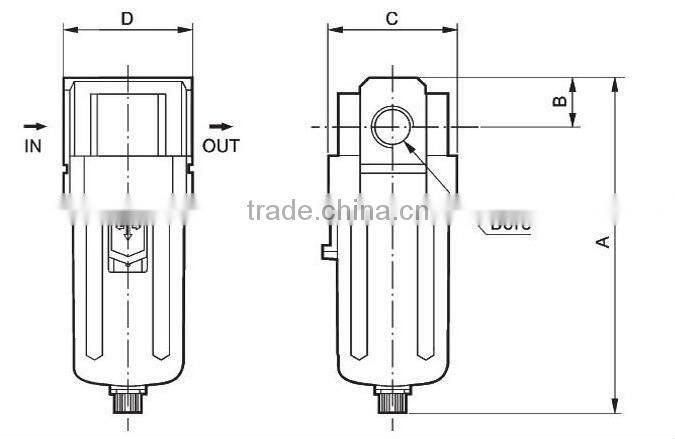

AF1000-2000

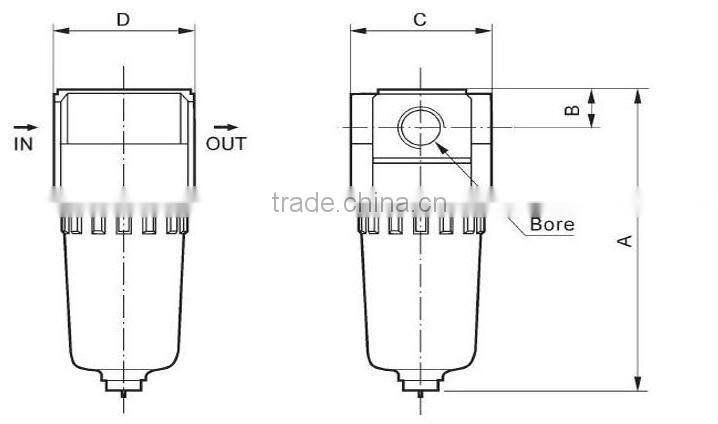

AF3000-5000
