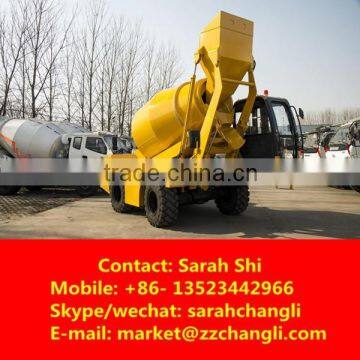

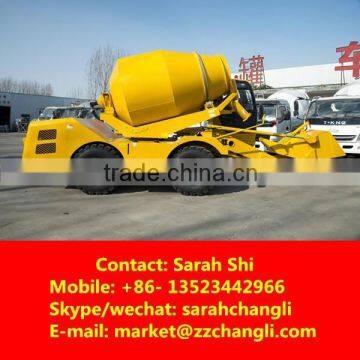

Cummins Diesel Engine 3m3 Self Loading Concrete Mixer Machine for Sale

Dongfeng Cummins engine

German brand Bosch Rexroth pump

Drum 300 degree slewing

4 wheel drive and front wheel steering

Mixing unit: Drum capacity 5,000 liters. Concrete output: 3m3 per batch. Double mixing screws. Drum rotation by hydraulic motor and planetary reducers. Mixing and discharging speed independent from r.p.m of diesel engine. Discharge concrete by reversing drum. The mixing unit is slewing hydraulically through 300°for high discharge over 2m to the four sides of the vehicle.

Engine:diesel Cummins 4BTA3.9-C125, water-cooled, 4 cylinders. Rated power 93kW(126.5hp) set at 2,200rpm. Engine mounted transversal on the rear..

Transmission: Bosch Rexroth pump. Pump and motor are connected to the differentials through a 2 speed reducer (working and transfer). 4 wheel drive and front wheel steering.

Speed: Working speed from 0 to 9km/h, road transfer from 0-23km/h.

Driving seat: Front cab on side of loading shovel. ROPS-FOPS type.

Joymix: All hydraulic functions of shovel controlled by a single fully servo controlled joystick.

Loading shovel: Capacity 600 liters complete with hydraulic opening gate.

Chute: Slewing and manual tilting. Easy detach for the convenience of discharging.

Water system: Self-contained. Hydraulic driven water pump, washing outlet. High pressure water pump.

Gradient: Fully loaded 30%.

Brakes: Oil bath disc brakes inside differential axles.

Electric system: 24 Volt battery for electric starter and road lighting.

Tanks: Water 300 liters. Diesel 128 liters. Hydraulic oil 140 liters.

Chassis: Steel profile specially engineered for off-road operations.

Weight: About 7,300kg equally distributed on both axles.

1. Free training program available at our factory, including truck driving, mixer operation and maintenance. Working video can be sent to you for reference.
2. Technician and engineer available to solve your problem by mail, telephone, photo or go to your construction site.
3. Quality spare parts sent out within 24 hours for your repair and maintenance needs.

 Zhengzhou Changli Machinery Manufacturing Co., Ltd, as a TOP3 concrete machinery manufacturer in Henan, China since 1982, our products have been exported to over 40 countries and get highly appraised. More than 90% clients will choose to buy from us again when they have new related orders.

We are supplier of World TOP 500 enterprise - Lafarge.

Our Order Quality and On-time Shipment is guaranteed by .  The Trade Assurance Amount is USD135,000.00.

We are looking for cooperative busienss partners overseas for our Concrete Machinery (Concrete Mixer and Concrete Batching Plants).
