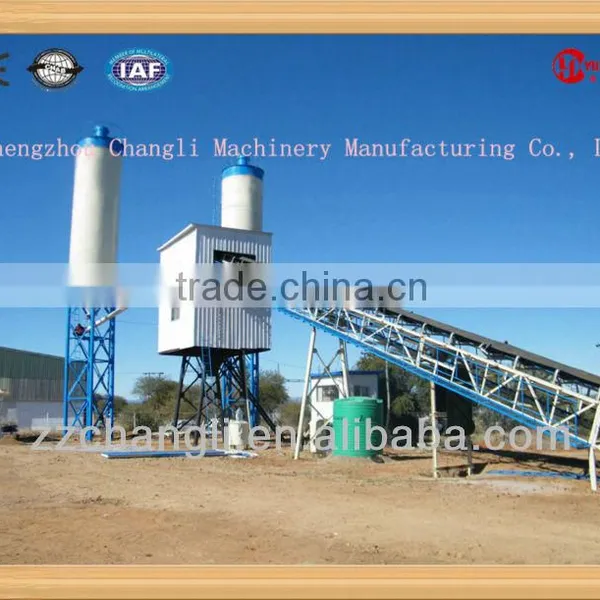

The Product Name: HZS60 Concrete Plant:
Capacity: 60 m3/h
Mixing Time: 60S
Max Aggregate Size: 60 mm
Discharging Height: 3800 mm
Total Power: 80KW
Total Weight: 50Ton
Total Dimensions: 25000×10000×19400 mm
1. MIXING SYSTEM

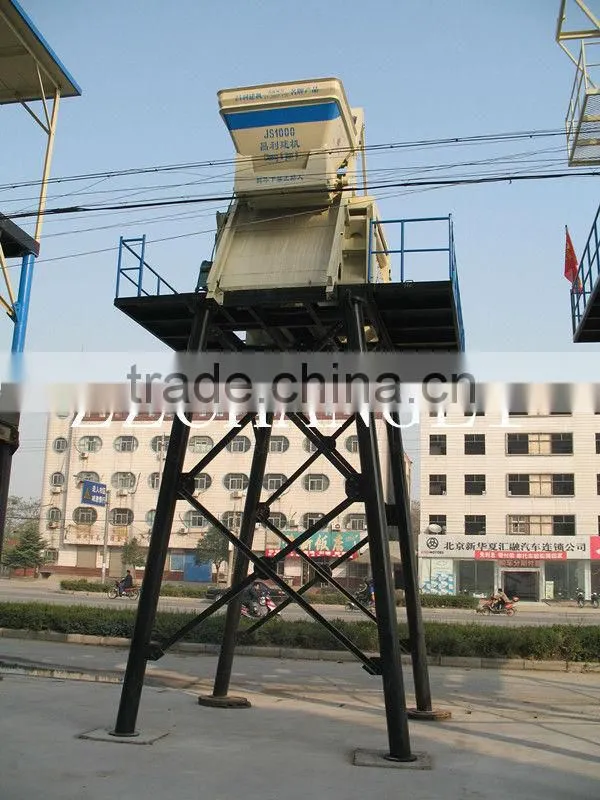

Twin Shaft Concrete Mixer: JS1000
Volume: 1600L
Capacity: 1000L
Mixing blade: 2×8 pcs
Mixing Speed: 25.5 r.min
Mixer Motor: 37kw
Weight: 9880kg
Dimensions: 4640×2250×2250mm
2. AGGREGATE SYSTEM

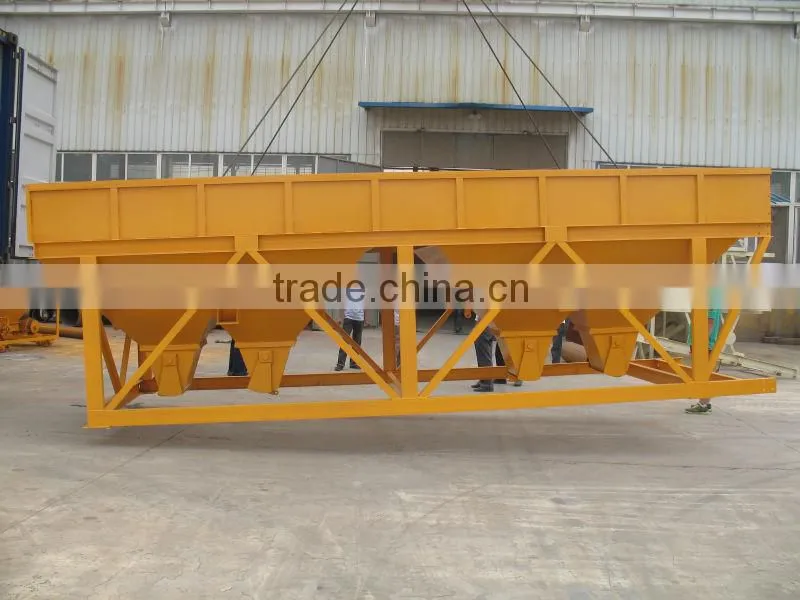

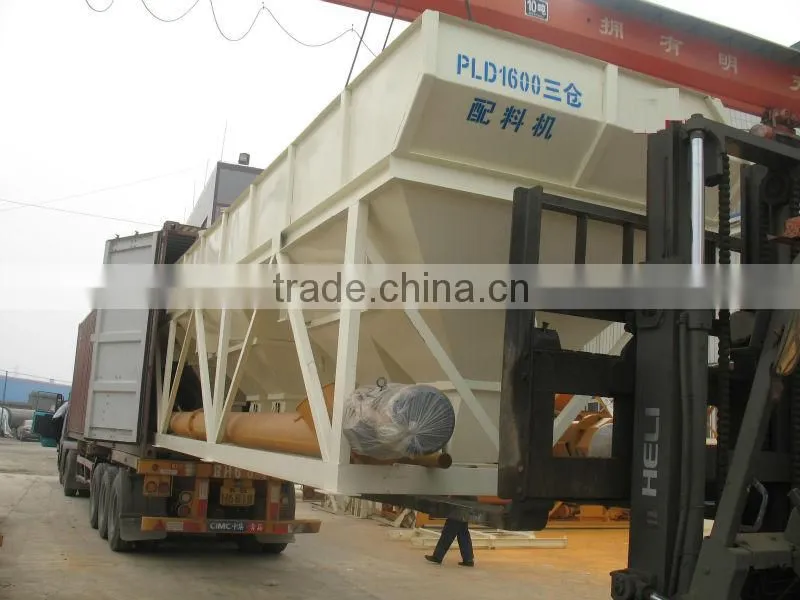

Aggregate batcher: PLD1600
Volume: 8.38×4 m3
Capacity: 80 m3/h
Power: 4×5 kw
Weight: 6300 kg
Dimension: 13900×2250×3800mm
Aggregate Belt Conveyor 1 unit
Width: 800 mm
Speed: 1.6m/s
3.CEMENT SYSTEM (OPTIONAL)

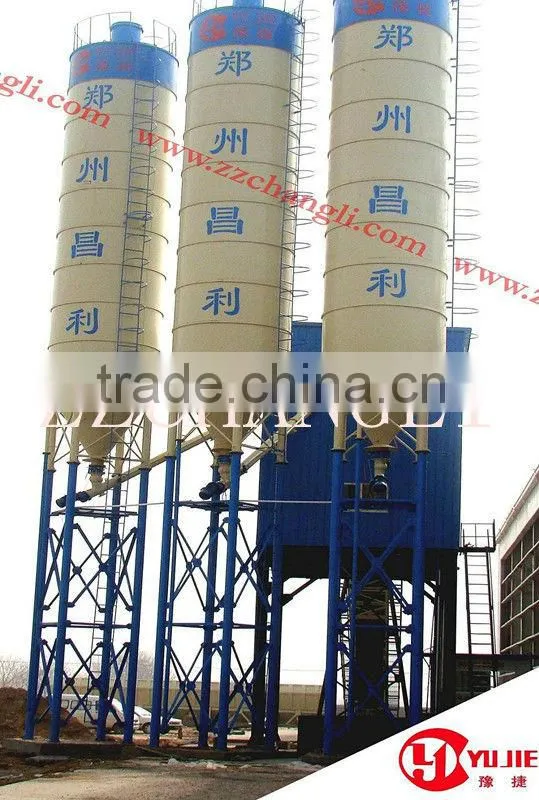

Cement silo 2 units
Capacity: 100 t×2=200 t
Silo Diameter: Φ3000

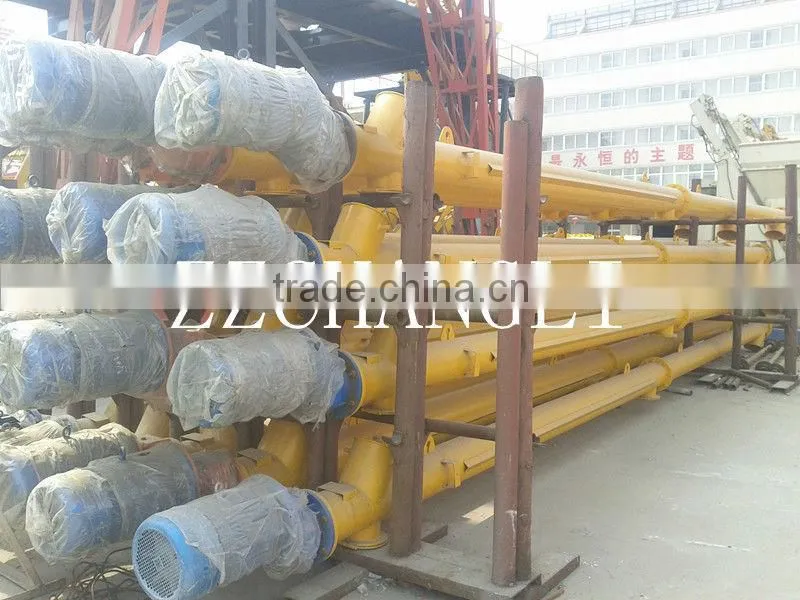

Cement Screw Feeder 2 units
Diameter: Φ273 mm
Length: 8 m
4. ADDITIVE SYSTEM (OPTIONAL)
Additive silo Capacity: 1m3
Pneumatic Valve: Φ50 mm
Pump: 3kw
5.WATER SYSTEM
Motor Power: 3kw
Butterfly Valve: Φ150 mm
Capacity: 80m3/h
6.AIR SYSTEM
Air Compressor 1unit
Power: 7.5 kw
Pressure: 1.0 Mpa
Air flew: 1.2 m3/min
7. WEIGHING SYSTEM
Aggregate Weighing 1unit
Weighing Capacity: 3000kg
Precision: ±1%
Cement Weighing 1unit
Weighing Capacity: 600kg
Precision: ±1%
Water Weighing 1unit
Weighing Capacity: 250 kg
Precision: ±1%
Additive Weighing: 1unit
Weighing Capacity: 40 kg
Precision: ±1%
8. CONTROL SYSTEM
PLC command and control operation .
Main electrical components : SCHNEIDER or SIMENSE
17’’ colorful computer
Manuel and Auto Control is freely changeable
Contact Person:Lisa
Mainly responsible for English and Russian countries.(speak English &Russian)
