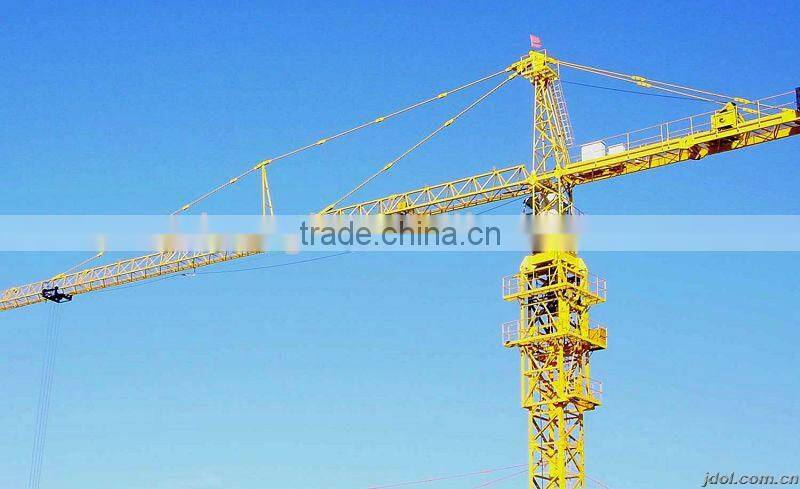

The best quality self erecting tower crane
The QTZ series of tower cranes are among Changli Group’s leading products. QTZ tower cranes are famous for their large operating ranges, varied working methods and wide uses. This series of tower cranes has a horizontal jib frame, a jib-trolley radius-changing mechanism and a hydraulic self-raising mechanism. It is original in design, reliable in operation and satisfactory in shape. Equipped with all necessary safety devices, these cranes show a good speed-control capacity, satisfactory operating stability and high work efficiency. They can be widely used for the construction of high-rise hotels, residential buildings, high-rise industrial buildings, large-span factory buildings and tower-like buildings like tall chimneys.
The tower crane is equipped with all kinds of reliable safety devices, such as hoisting height limiter, slewing range limiter and multifunctional limiter to control the load moment, hoisting capacity and trolley traveling range. Its PLC (Programmable Logic Controller) unit can diagnose the cause of breakdowns. Its Safety Monitoring System (also known as Black Box) displays the data of working radiuses, heights, moments and weights.
| Type of Tower Crane | QTZ60 Series | |||||
| QTZ63 (5013) | QTZ63P (5010) | QTZ63P (5011) | ||||
| Metric Lifting Moment (KN.m) | 630 | |||||
| Wokring Radium (m) | 50 | 50 | 50 | |||
| Hoisting Capacity (T) | 1.3-6.0 | 1.0-5.0 | 1.1-5.0 | |||
| Hoisting | Independent Stationary (m) | 39 | 32 | 32 | ||
| Height | Attached Stationary (m) | 120 | 120 | 120 | ||
| Hoisting | 2 Fall | 75/38/7 | 50.8/25.4/9 | 50.8/25.4/9 | ||
| Speed | 4 Fall | 37.5/18.5/3.5 | 25.4/12/4.5 | 25.4/12/4.5 | ||
| Slewing Speed (r/min) | 0-0.6 | 0-0.64 | 0-0.64 | |||
| Trolley Travel Speed (m/min) | 38/19 | 38/19 | 38/19 | |||
| Section of Tower Mast (mm) | 1600x1600 | 1600x1600 | 1600x1600 | |||
| Material of Main Tower Mast Section (mm) | ∠160x160x16 | ∠160x160x14 | ∠160x160x14 | |||
| Gib | Upper Branch | Seamless Steel Pipe | Square Tube | Square Tube | ||
| Lower Branch | Square Tube | Square Tube | Square Tube |
About us:
About Zhengzhou Changli Machinery Manufacturing Co.,Ltd,which is specilized in construction machine.As a modern lorge-scale production enterprise in the construction machinery base,Zhengzhou Changli Machienry Manufacturing Co.,Ltd.Has a professional design team and an excellent tech skills group.Now the advanced producting equipment and rerfect after-sale service are the symbol of Zhengzhou Changli. We Zhengzhou Changli will persist in technical innovation,constantly increasing the core competitiveness,so as to be one of the most attractive suppliers of construction machinery.
Our Certification and Major Honors
ISO9001, CE,BV,SGS
China Well-known Trademark
China Top Enterprise
China Product Quality Trustworthy Enterprise
Our Quality and Reputation Proof
As reward and affirmation on our technology research capacity, our product quality and service we are honored with China Well-known Trademark, our product are honored with China National Trustworthy Quality Product as well as many other honors.
Our International Market
We have established overseas projects in 28 countries and regions. And we need your support to introduce our high quality product and service to your honored company and country.
Welcome to your inquiry for more technical advantage introduction of our tower crane
...
