Hot Sale!!! Modular Full-weighing MWCB200-200T/H Soil Stabilizer Batch Plant

Full-weighing MWCB200-200T/H soil stabilizer batch plant

1.Characters of   soil stabilizer batch plant

200,300,400,500,600TPH Stabilized Soil Mixing Plant , stationary or mobile type

MWCB series of full-weighing of modular soil-cement mixing plant has the following features: good adaptability of materials, multiple dosages, high reliability, easy operation, compact structure and reasonable layout. It is very suitable for various constructions which need a great amount of subbase material such as highway,railway,municipal engineering and airport.

The plant adopts industrial computer control to form automatic control system. It is composed of six major parts: aggregate supplying system, stabilizer (cement, lime powder) supplying system, water supplying system, mixing system, mixed material conveying and storing system, control system. It can be separated according to the modular structure: aggregate hopper, mixer, storing hopper.

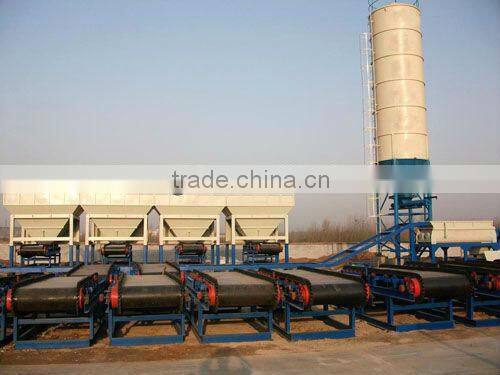

1.Material supply machine

Modularization design, easy transportation, continuous belt weighing, electromagnetic timing, material bin board connection, proof board bolt connection, can be exchanged realizing two sides material supply, equipped with many anti-deflection measures; also equipped with cleaning device and material scraping device, avoid belt internal and external adhesive material.

2.Vertical filler silo

35M3 vertical filler silo, equipped with material measuring device, top-silo dust catcher and air force agglomeration exploding device.

3.Mixing mainframe

The mainframe adopts double shaft compulsory continuous and well-proportioned mixing, no-scaleboard technique reducing blade abrasion; the mixing blade adopt special wearable material with a long using life; water spraying machine can sprinkle the water equably on the material and can realize well mixing; equipped with emergency stop switch, when there is urgency accident or cleaning the mixer, insure the safety of workers and equipment, the special mixer cleaning tool and mixer structure are convenient for cleaning, outside bearing without mud and protect the bearing;

4.Mixture conveying

The conveying belt is connecting with the material receiving device, avoid material leaking when discharging the mixture out of the mixer; the belt pressing wheel can be adjusted, which make the conveying belt arch well; folding structure is convenient for transportation; equipped with many anti-deflection measures, also equipped with cleaning device and material scraping device, avoid belt internal and external adhesive material

2.Main parameters of soil stabilizer batch plant

  stabilized station ;stabilized soil mixing station ; soil stabilizer mixing plant ; soil cement mixing plant

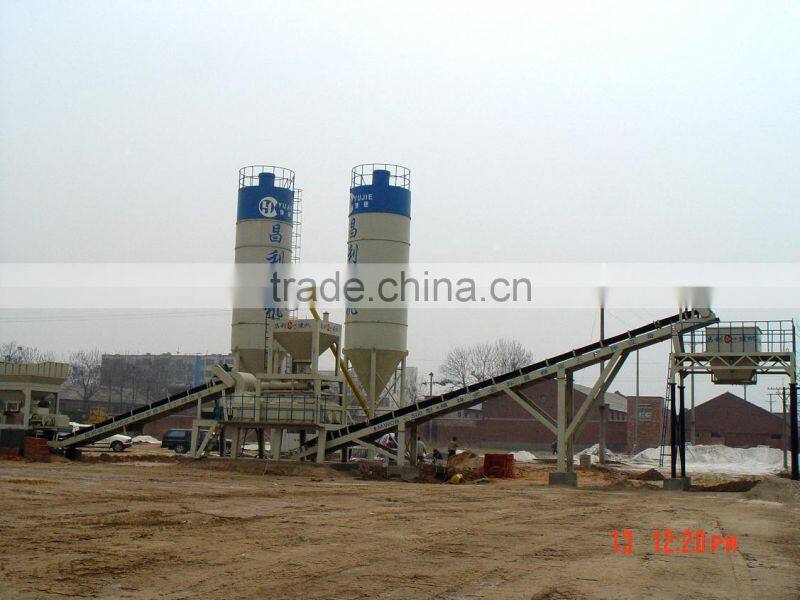

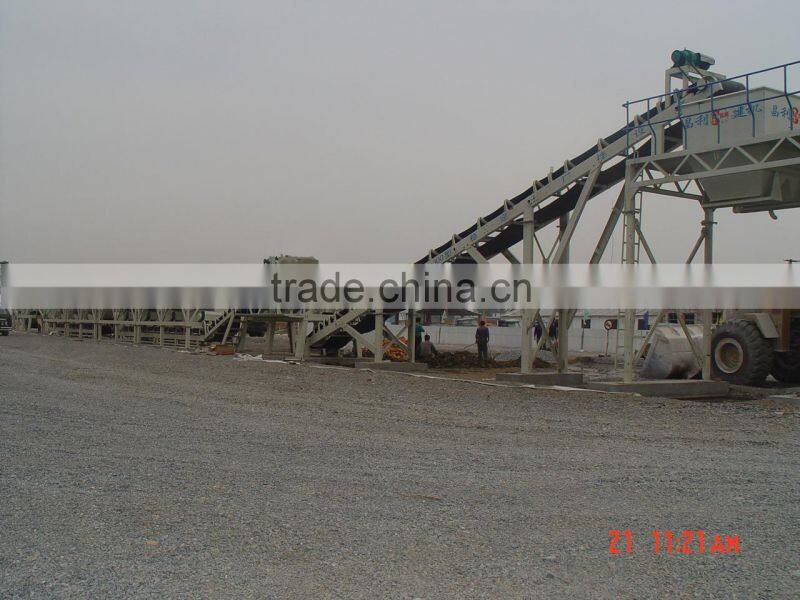

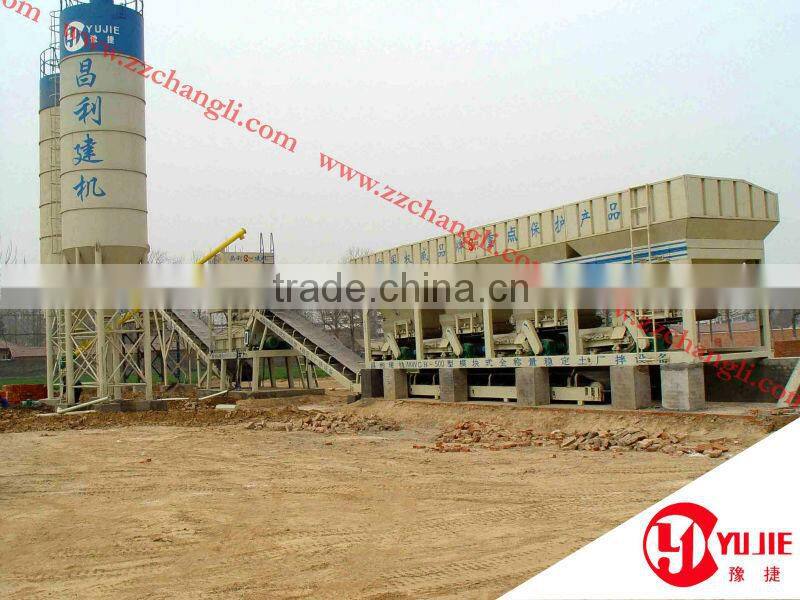

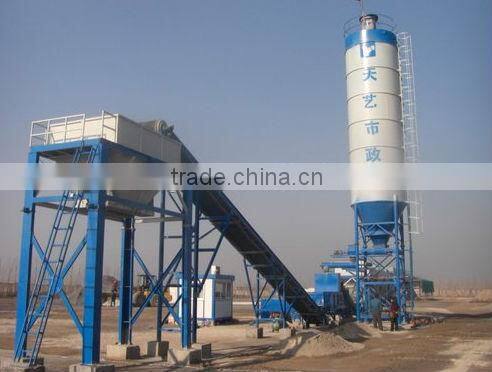

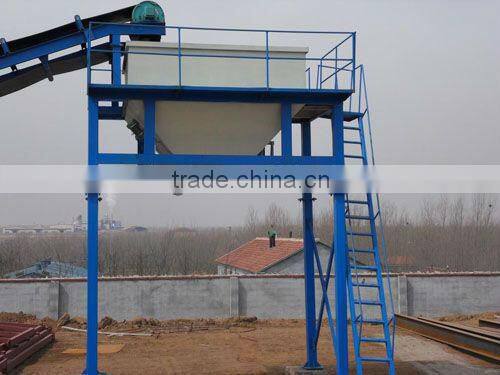

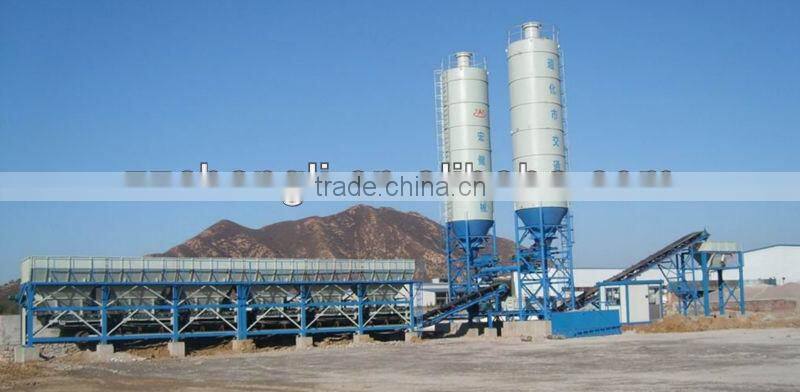

me pictures of soil stabilizer batch plant

  soil stabilizer batching plant
