High quality factory supply 300/400/500/600T modular stablized soil mixing station
Main characters of modular stabilized soil batching plant
1.The machine has volume measuring and electromagnetic speed regulation.
2.The mixer is advanced performance and high- class seal technique. The seal of end of axes is easy to replace. There is overhaul door on the side of machine. The mixer is big capacity and high productivity.
3.The batching system of aggregate adopts speed regulation belt conveyer and volume measuring.
4.The powder batching system adopts stellated feeding device. It is stabile and credibility and change prescription rapidly.
5.There is manual and automatic control. It is good credibility and easy to operate. The operation is controlled on the console.
6.It adopts electromagnetic speed regulation. The main electrical component is from France Schneider Company.
7.The transportation of finished product material adopts advanced loop rubber belt. It is large capacity and runs reposefully.
8.The machine is module type structure. It is easy to assemble,disassemble and transport.
Technical parameters of modular stabilized soil batching plant
Main Technical Parameter | ||||
Model | MWCB300 | MWCB400 | MWCB500 | MWCB600 |
Theoretical Productivity (t/h) | 300 | 400 | 500 | 600 |
Total Installation Power (kw) | 98 | 118 | 150 | 200 |
Total Weight (T) | 30 | 35 | 40 | 50 |
Max. Aggregate Size (Pebble/Gravel) | 60 | 60 | 60 | 60 |
Aggregate Weighing Accuracy | ±2% | ±2% | ±2% | ±2% |
Cement Weighing Accuracy | ±1% | ±1% | ±1% | ±1% |
Water Supply Accuracy | ±1.5% | ±1.5% | ±1.5% | ±1.5% |
Area Occupation(L*W) | 44*5 | 50*5 | 50*5 | 52*6 |
Control Mode | Auto/Semi-auto | |||

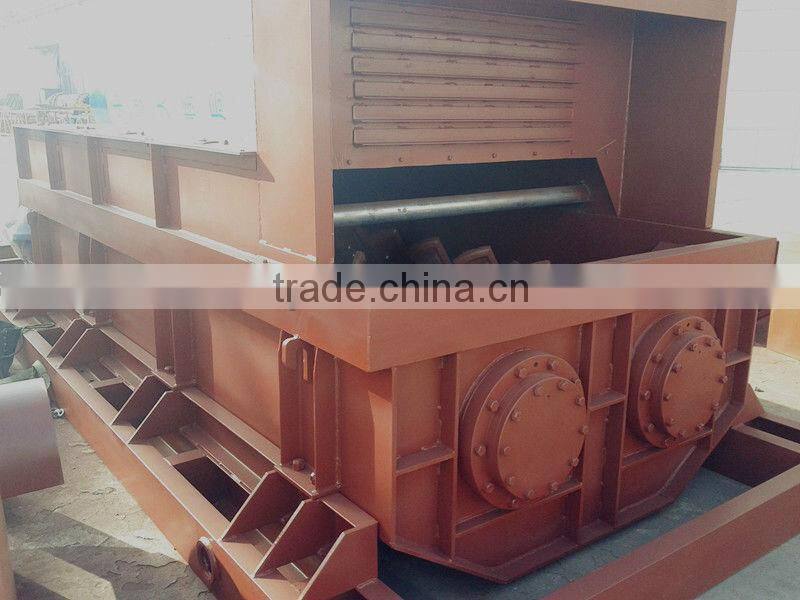

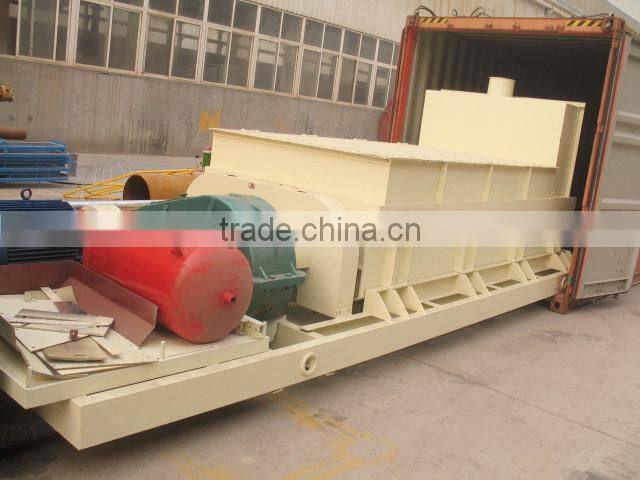

The picture of mixer

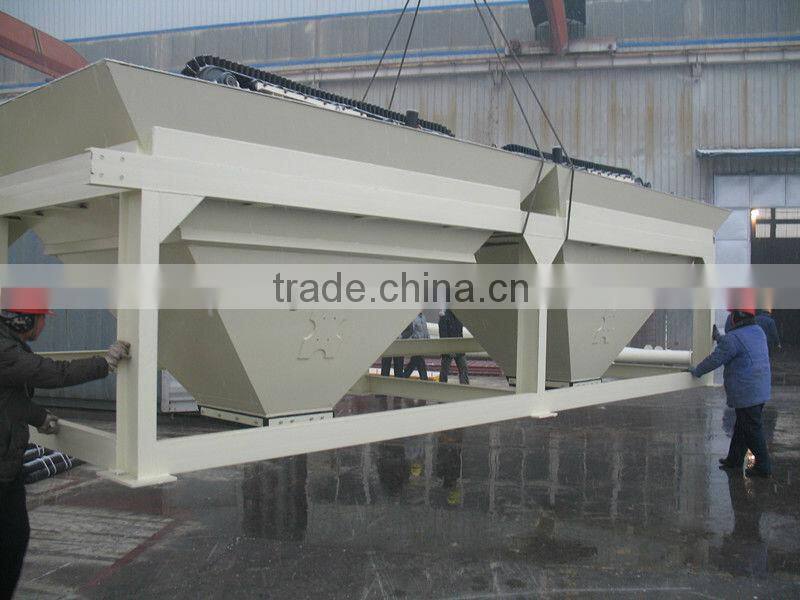

Batching machine

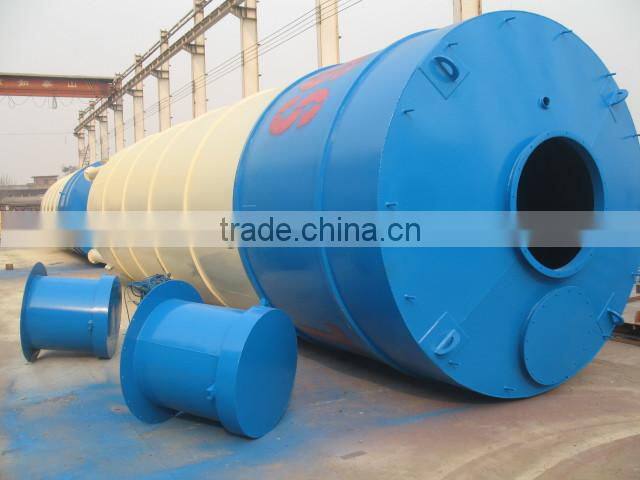

The picture of silo

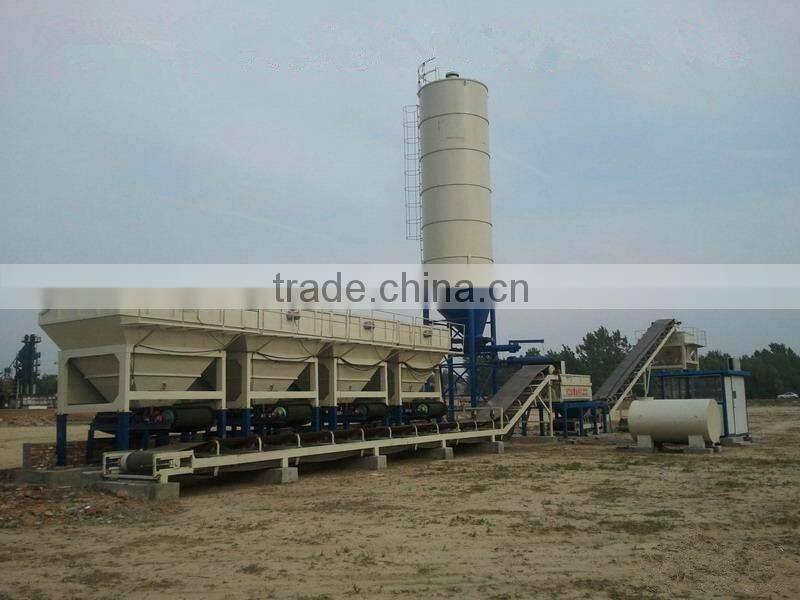

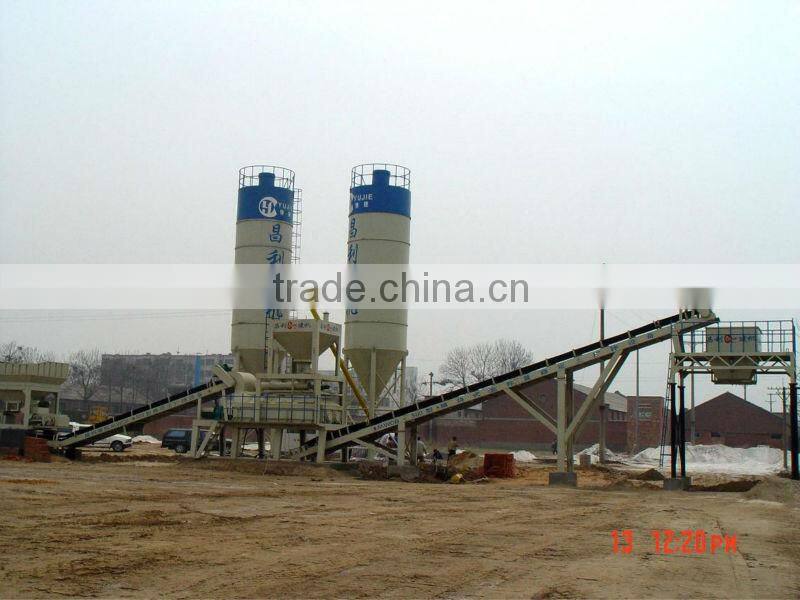

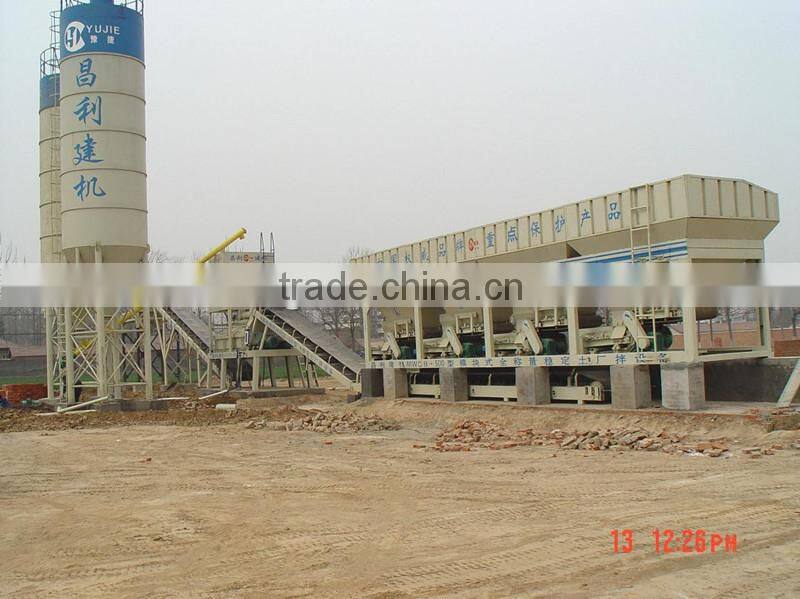

The pictures of Fixed modular stabilized soil batching plant

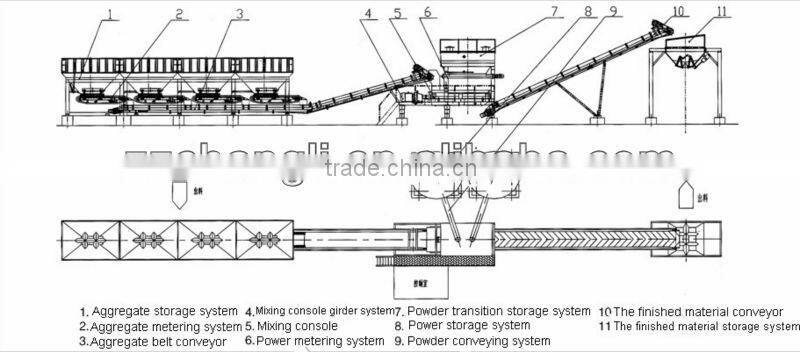

Sketch maps of modular stabilized soil batching plant

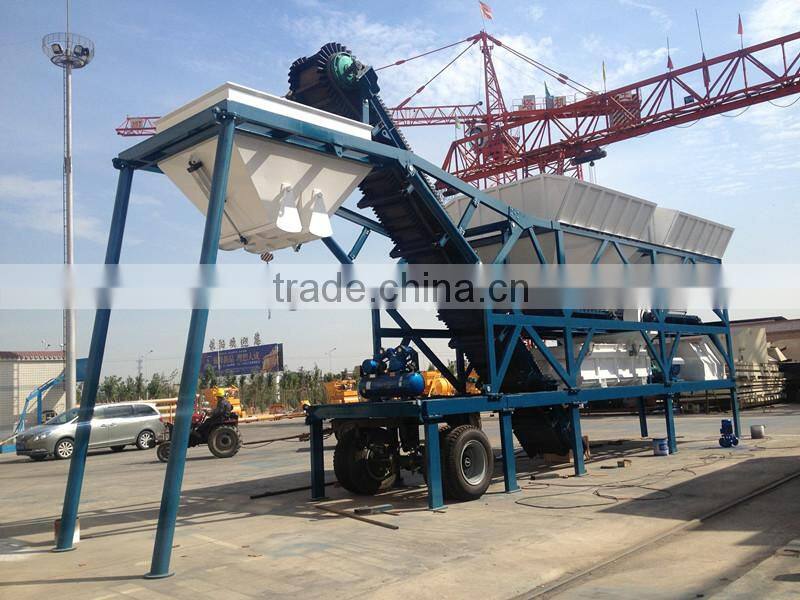

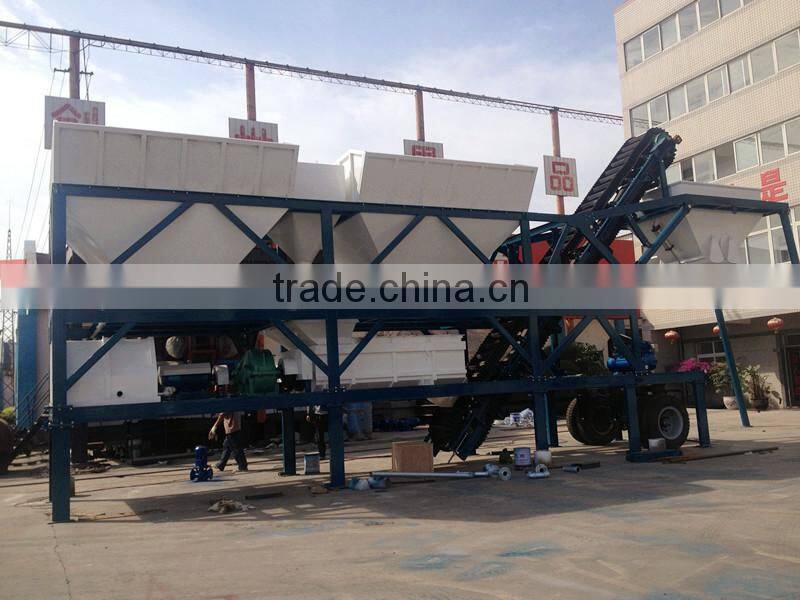

More pictures of Mobile modular stabilized soil batching plant
Our Service Clients
Our Clients includes those FORTUNE 500 companies like CHINA RAILWAY, CHINA SINOHYDRO,CHINA METALLURY, CHINA STATE CONSTRUCTION ENGINEERING, CAMCE and China national top companies like CHINA SOUTH-TO-NORTH WATER PROJECT, CHINA MECHANICAL EQUIPMENT CORP etc.
Our International Market
We have established overseas projects in 28 countries and regions. And we need your support to introduce our high quality product and service to your honored company and country.
After-Sale Service:
1. Operator Training;
2. Spare Parts Supply.
