MWCB400 Modular Stabilized Soil Mixing Station,soldering soldering station,infrared soldering station
*************************************************************************************************
Soil Stabilization Mixing Station
300t/h,400t/h,500t/h,600t/h
I. Brief Introduction of Soil Stabilization Mixing Station
1. Used to produce stabilized soil for road base construction.
2. Consists of Batching Machine, Raw Material Belt Conveyor, Power Silos, Screw Conveyor, Continuous Mixer, Ready Products Belt Conveyor, Finished Products Storage Silo, Control Room and Pneumatic System.
3. Different productivity meets different needs, MWCB300-300T/H, MWCB400-400T/H,MWCB500-50T/H,MWCB600-600T/
4. Widely used in the construction fields of road, airport, dock and other stabilized road base material construction project.
II. Parameters of Soil Stabilization Mixing Station
Main Technical Parameter | ||||
Model |
MWCB300 |
MWCB400 |
MWCB500 |
MWCB600 |
Theoretical Productivity (t/h) |
300 |
400 |
500 |
600 |
Total Installation Power (kw) |
98 |
118 |
150 |
200 |
Total Weight (T) |
30 |
35 |
40 |
50 |
Max. Aggregate Size (Pebble/Gravel) |
60 |
60 |
60 |
60 |
Aggregate Weighing Accuracy |
±2% |
±2% |
±2% |
±2% |
Cement Weighing Accuracy |
±1% |
±1% |
±1% |
±1% |
Water Supply Accuracy |
±1.5% |
±1.5% |
±1.5% |
±1.5% |
Area Occupation(L*W) |
44*5 |
50*5 |
50*5 |
52*6 |
Control Mode |
Auto/Semi-auto |
|||
III. Salient Features of Soil Stabilization Mixing Station
1. Adopting double horizontal shaft continuous mixer;
2. Equipped with industrial computer for automatic control and it can be operated manually or automatically;
3. The modular structure facilities the installation of transportation;
4. The batching plant is equipped with electronic belt scale and electronic screw scale;
5. The water supply system adopts turbine flow transducer;
6. Can realize the containerized transport.
IV. Sketch Map of Soil Stabilization Mixing Station

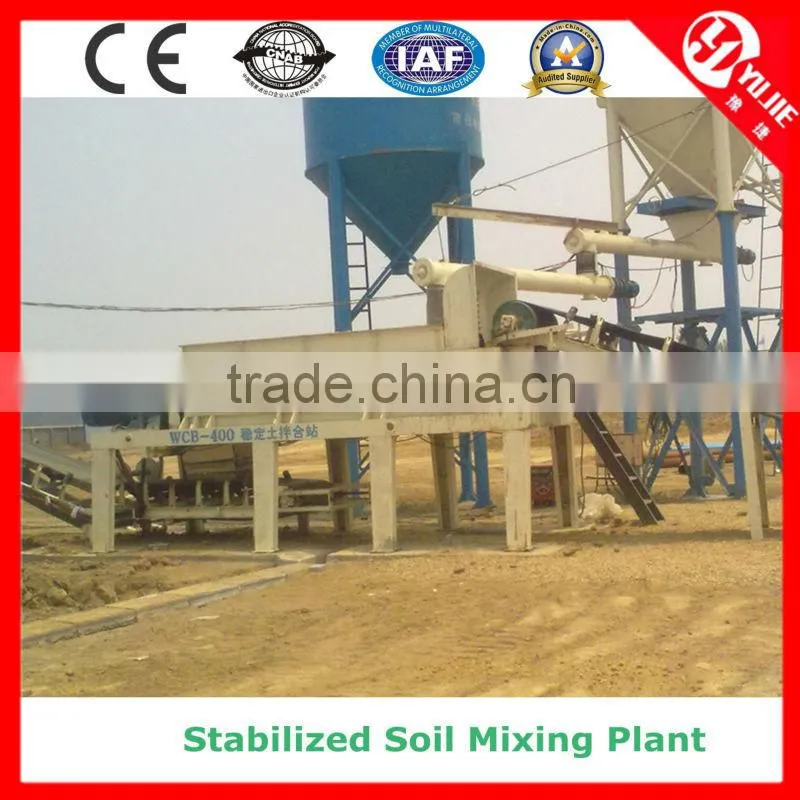

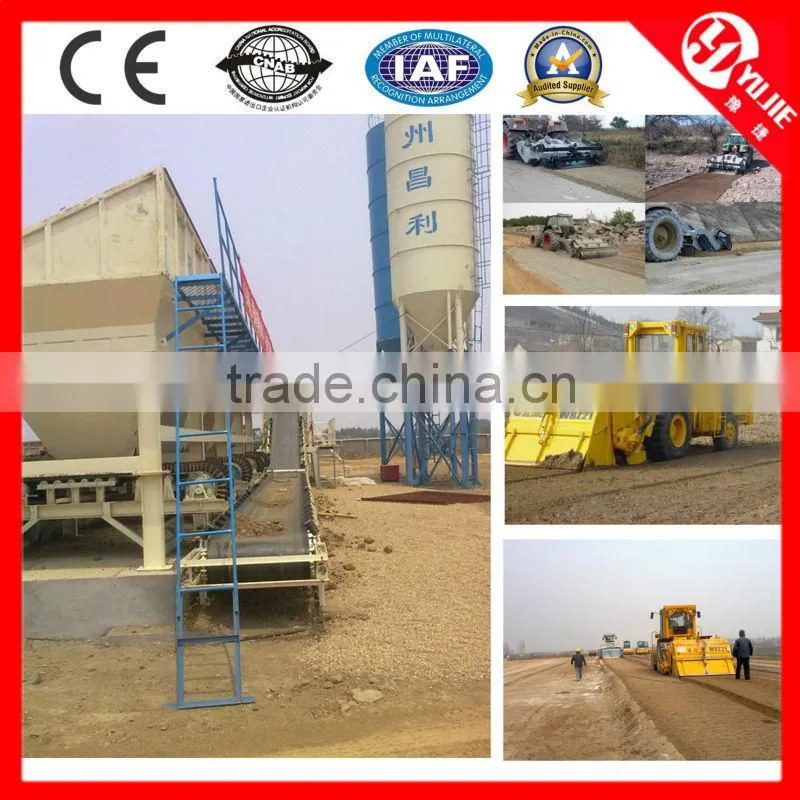

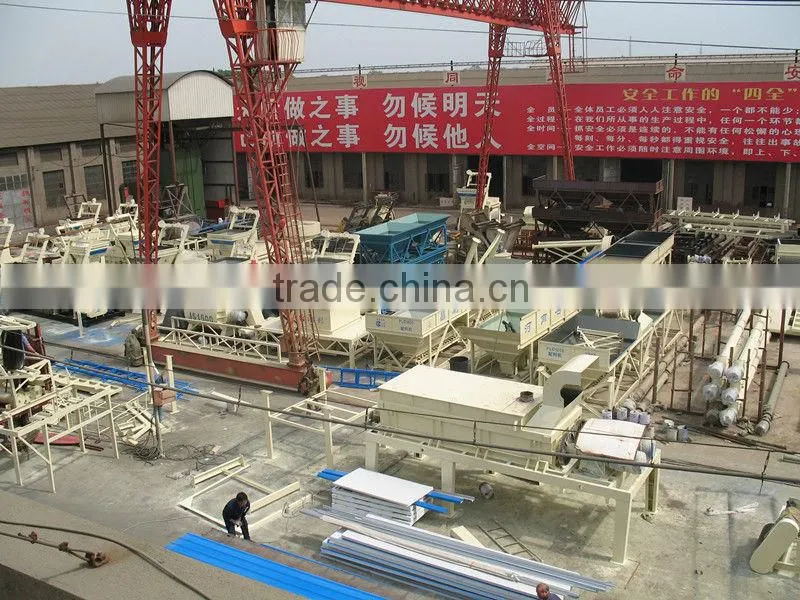

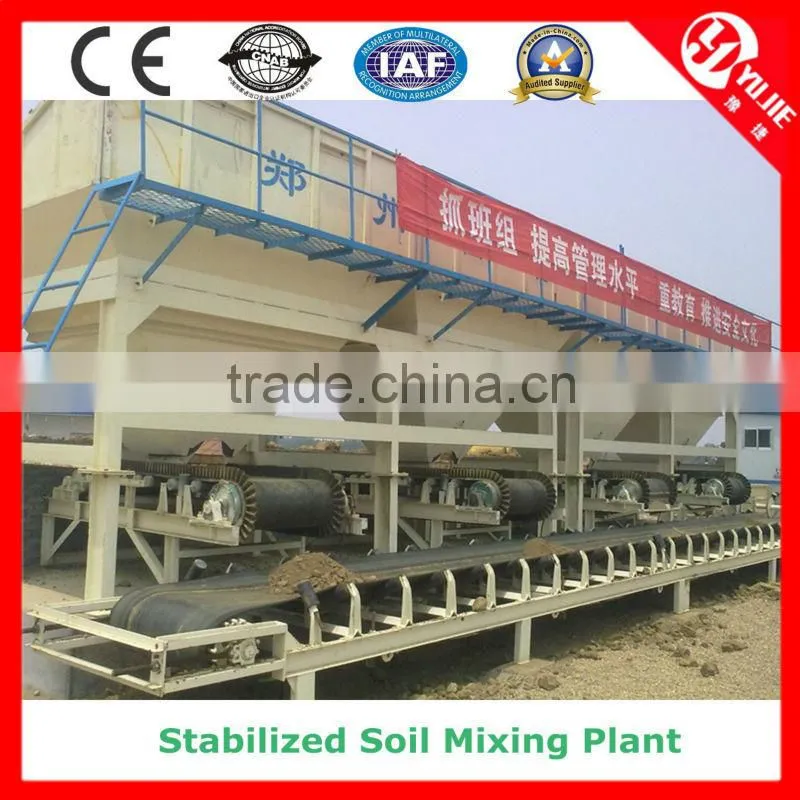

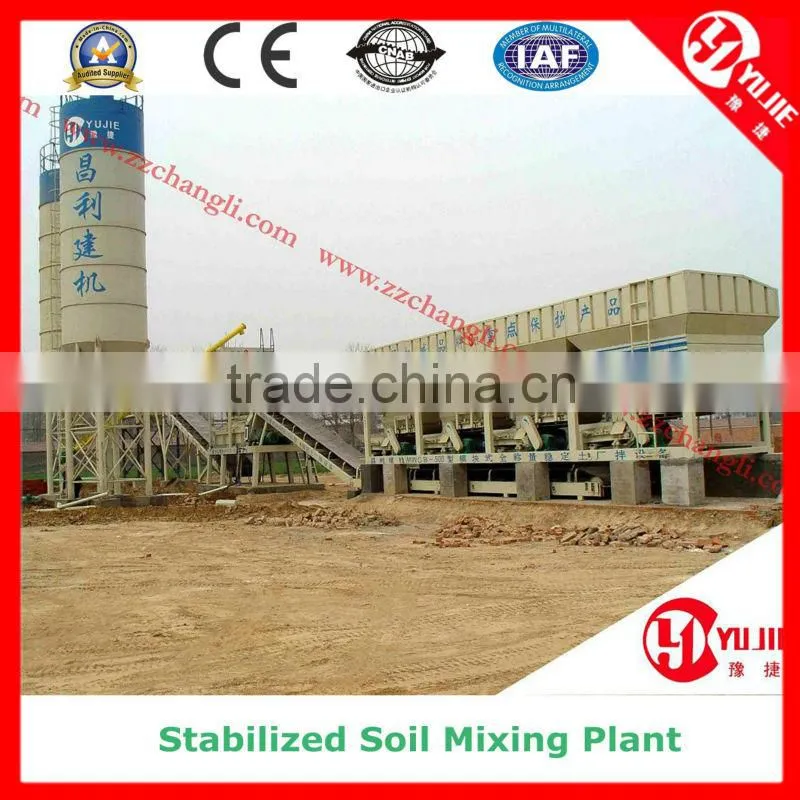

VI. Display of Products and Our Factory
VII. Welcome to Visit Us!
VIII. Transaction Terms for Soil Stabilization Mixing Station
1. Packing: Nude Packing delivered in 40HQ
2. Production Lead Time:15~25 working days
3. Payment Terms: T/T, L/C
4. Waranty Period:12 months
5. Logo and Color: As per customer's requirement
Should any inquiry for our Cement Soil Continuous Mixing Station, pls feel free to contact us, we are very pleased to make you our best offer!
Contact person:Angelia Gu
Tel:0086-18937636161
Skype: angeliagu
