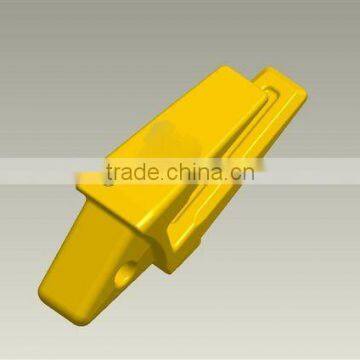

Help CenterExcavators Bucket Adapter/20Y-939-1180/carbon Steel/ Alloy Steel/special Alloy Steel
Related Products
-
Adapter 207-934-7120-55NegotiableMOQ: 3 Tons -
207-70-14151-A Bucket TeethNegotiableMOQ: 3 Tons
-
Adapter 6I6602RCNegotiableMOQ: 3 Tons
-
Excavators Bucket Adapter/CAT330/1590464/carbon Steel/ Alloy Steel/tool SteelUS$ 1.5 - 1.5MOQ: 3 Tons
-
Excavators Bucket Tooth/7T3401/carbon Steel/ Alloy Steel/special Alloy SteelUS$ 1.5 - 1.5MOQ: 3 Tons
Specifications
Specifications1, Full line products2, Certified foundry
3, Capacity 1800ton/month
4. Uncompromis
Tuoxing Bucket Teeth leading advantage:
1. Aggressive leading edge design
2. Variety of approved tooth systems
3. More Side cutters / Wear shroud options
4. Reduced weight by the use of high abrasion resistant materials
5. More usable wear metal for longer point life
6. Slimmer profile for better penetration
7. Greater nose strength and fatigue life
8. Alloys provide longer wear life and greater impact resistance
Process :
Lost Wax Casting
Investment Casting
Soluble Glass Precision Casting
Tolerance : ISO/GB CT9
Capacity : Wall thickness≥8mm Length less than1000 mm weight : 05KG~100KG
Standard : ISO , DIN , GB , AAR , BS
Certificate : ISO9001: 2008 . TS16949:2009

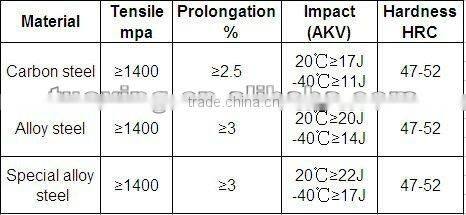

1Bucket Teeth Material Available: Carbon steel, Alloy steel and
special alloy steel.
2The whole process from casting to heat treatment is strictly inspected by our professional workers to ensure the quality. The hardness of our Bucket Teeth & Adapters are up to HRC48-53, with excellent elongation and tensile strength, so very suitable for many different hard working conditions.
3.Excavator Part Type:
Caterpillar bucket teeth & adapter: CAT 200, 320, 330, 350, 920 etc.
Side cutter: CAT200, 300, 320, 330.
KOMATSU bucket teeth &adapter: PC60, 100, 120, 200, 220, 300 etc.
Side cutter: PC60, PC100, PC200, PC300, PC400
ESCO bucket teeth & adapter: 30S, 35S, 40S etc.
JCB center teeth & side cutter.
DAEWOO bucket teeth & adapter: DH55, DH130, DH220, DH280, DH360, DH420.
Side cutter: DH55, Dh220, Dh360, etc.
Solar V Series.
4. Our products are being exported throughout the world. Our sales volume increasingly grows and our products have gained many customers' recognition for high quality. We exported to North- America, Western Europe, Eastern Europe, Middle-East, Asian areas and countries.
