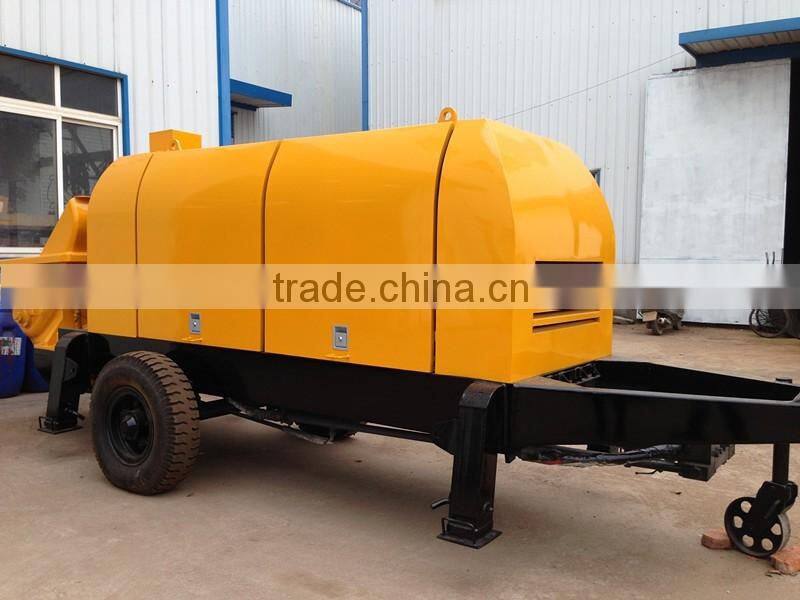

Small capacity concrete pump machine
products characteristics
Power system
Hydraulic oil pump: Germany Rexroth or Japan Kawasaki are adjusted.
Diesel power: Germany Deutz, Weichai, Schneider, Japan Siemens, Mitsubishi are adjusted.
The main power could be adjusted by the user
Electronic control system
Japan Mitsubishi Programmable Logic Controller (PLC) electronic control system.
Main electric elements are imported original Schneider, Siemens, OMRON, LG etc.
The control mode: manual operation and wireless remote control
Humanity and intelligent electronic control system optimizes the person-machine interface.8-digital pumping time accumulation timer provides exact data for the user, Automatic anti-pump function and optimized program design. Automatic trouble monitoring function.
Hydraulic system
The unique open hydraulic system and hydraulic cushion technology contribute to the smaller exchange impact and less heat of the system. Meanwhile, with the famous brand of main pump and hydraulic valve, the safety and reliability of the concrete pump are guaranteed.
The hydraulic pipeline selects the high performance seamless steel pipes and all pipe joints and high-pressure hoses are of the famous brands.
A number of high pressure accumulators and their excellent cushion performance reduce the requirement of S pipe vale for the concrete. The concrete is delivered freely.
Pumping system
Pumping displacement variable adjustment: Change the pumping displacement according to the construction to meet the requirement of the condition.
Reducing design of the hopper could release the reducing pressure of the concrete into the delivery pipe maximally, and prolong the service life of the S pipe outlet.
Lubrication System
The patented central automatic lubrication system comes with a piston grease-pump, features high pressure and reliability, which can realize automatic lubrication of piston. The filters at the outlet and the inlet of oil ports as double protections guarantee the system reliability.
Cooling System
Compulsory air-cooled heat exchanger keeps the temperature of the hydraulic oil below 60 degree,that ensures the whole hydraulic system works at normal status.
Product parameters
Item | Unit | HBTS30-10-45 | HBTS40-10-75 | |||
Theoretical output | m3/h | 30 | 45 | |||
Max. concrete pressure | MPa | 10 | 10 | |||
Specification of pumpable concrete | Slump constant | cm | 8-23,optimal:8-18 | |||
| / | Aggregate size | mm | Macadam≤40;pebble≤50 | |||
Charging hopper | Volume | L | 400 | |||
Height | mm | 1375 | ||||
The mode of distribution valve | S valve | |||||
Oil tank capacity | L | 500 | ||||
Electromotor | Power | Kw | 45 | 75 | ||
Pipe diameter | mm | φ125 | ||||
Pipe cleaning mode | Compressed air or high pressure water washing | |||||
External dimensions(L× W× H) | mm | 4800×1800×1930 | 4800×1800×1930 | |||
Weight | kg | 4500 | 4500 | |||

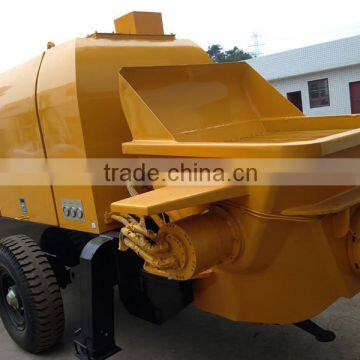

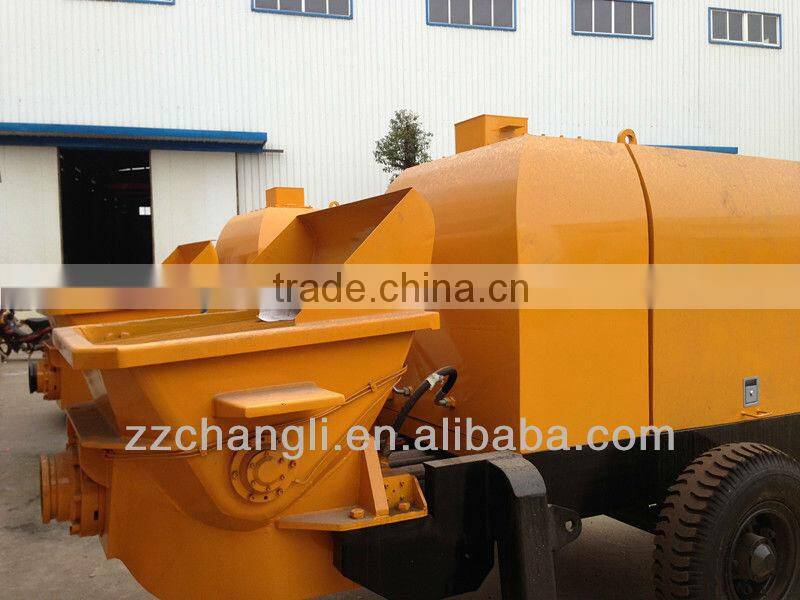

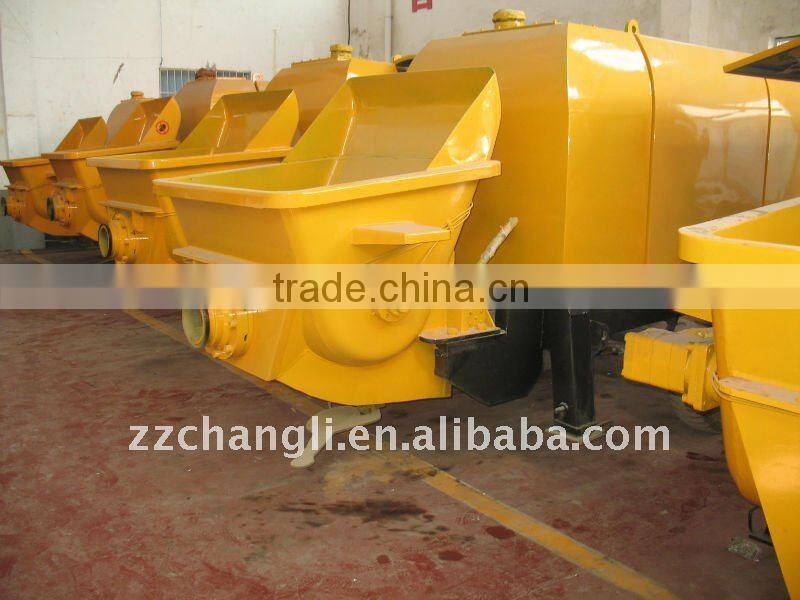

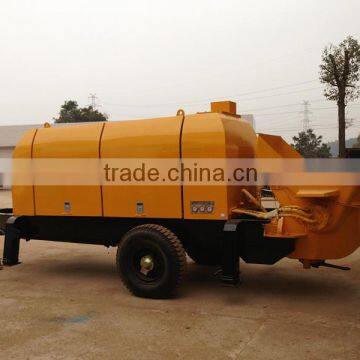

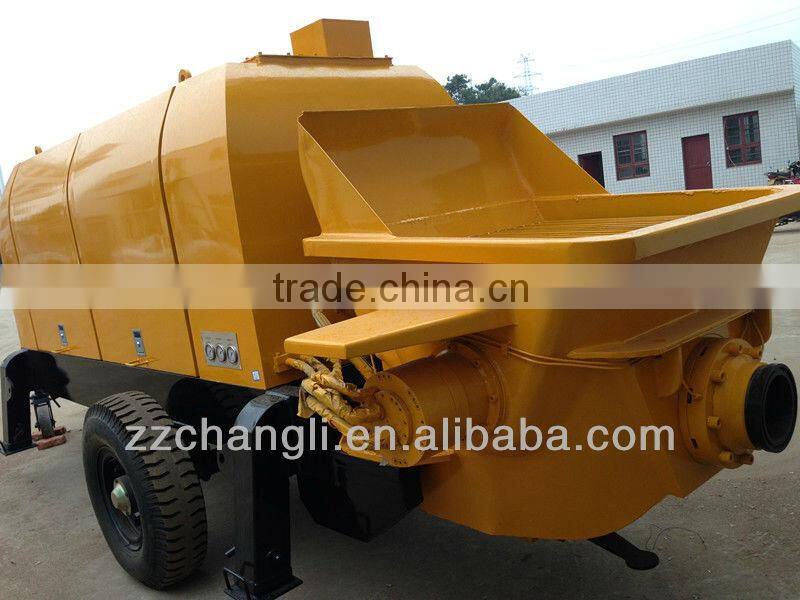

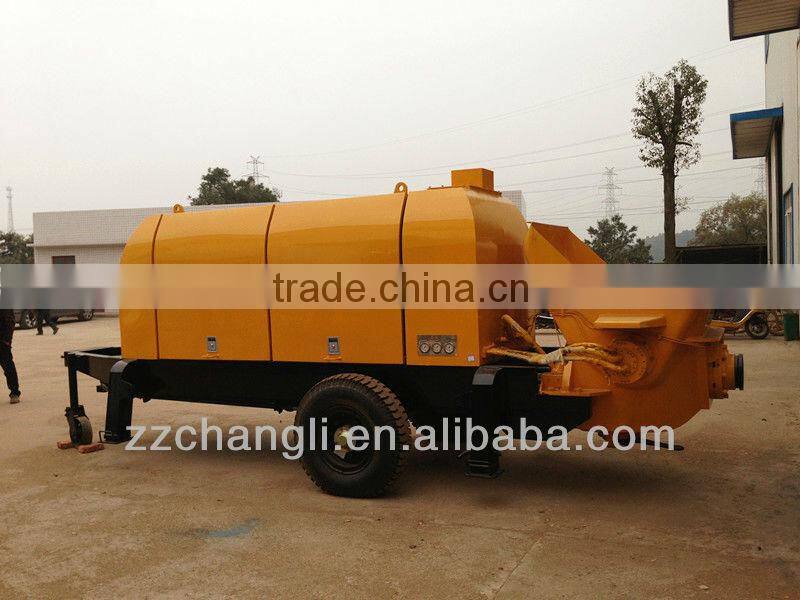

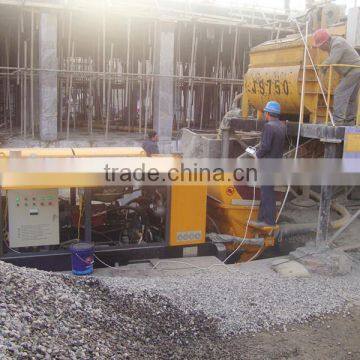

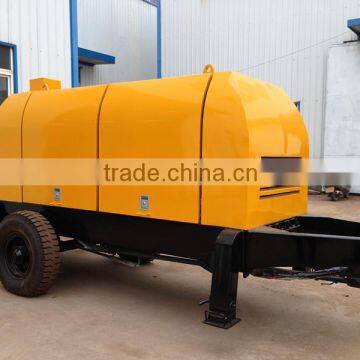

The pictures of concrete pump
Welcome to contact us if you are intersted in our products,We will offer our best service for you !
