40m3/h concrete mixer pump
I. Main fetures of concrete mixer pump
Hydraulic Systems:
1.This product adopts double pump, double loop open type hydraulic system, the main pumping oil and S
valve swing oil is independent each other,to make the system is simple, long service life,higher reliability and
be easy for failure diagnosis.
2.Pumping oil reversing by using the directional control valve reducing pressure device, avoid impulsion,
makes pumping oil reversing steady and reliable.
1.This product adopts double pump, double loop open type hydraulic system, the main pumping oil and S
valve swing oil is independent each other,to make the system is simple, long service life,higher reliability and
be easy for failure diagnosis.
2.Pumping oil reversing by using the directional control valve reducing pressure device, avoid impulsion,
makes pumping oil reversing steady and reliable.
3.Pump hydraulic system with a safety overflow protection, at the same time, the main pump with the system
overpressure, the pump pressure automatically cut off the closure device, so that the main pump to get the
multi-level and reliable protection.
4.Swing oil adopts constant pressure pump to supply oil, large swaying force and high energy-saving.
Electric Control System
The salient features of the electronic control system is advanced technology, simple, and high reliability.
1.The pump is the exclusive use of the programmable logic controller.Using software replace intermediate
relay and time relay etc.separate control elements. ,greatly reducing the use of the number and amount of
wiring for electrical components, and significantly improve the reliability of the electrical control system.At the
same time the programmable logic controller with input and output fault indication make troubleshooting simple and clear.
2.More than 90% the electrical components adopt Siemens imported parts, to ensure the reliability of the
components.
3.Motor start-up using the Y —Δ type of conversion , to avoid negative consequences caused by direct
start-up.
concrete mixer pump -----Machinery (mixing) distributing valve system:
1.The mixer with a unique structure make the hydraulic motor and stirring bearing completely isolated, even if
the mixing seal wear and leakage pulp that does not affect the hydraulic motor. At the same time, dualmotor,
to ensure that the mixing torque is large enough, it also can stir normally in poor material conditions.
2.The wearing parts, such as the glasses plate and the cutting ring , have a long service life through
continuous technology research.
concrete mixer pump -----Lubrication system:
The lubrication system uses a centralized automatic lubrication system of the double pump,lubrication pump
suction and pressure oil exit are equipped with filters,avoid oil separator oil is dirty and clogged. Progressive
oil separator with overflow indication can make the blockages automatically display, and concrete pipe doesn't flow back,to ensure lubrication system operate reliably, extending the service life of S valve.
concrete mixer pump -----Cooling system:
Adopt mandatory aircooled radiator device,to ensure that the hydraulic system oil temperature control in the
normal scope of work and to protect the hydraulic system of the host is working in proper condition.
II. concrete pumping machine -----Concrete Mixer Pump Technical Parameters
Items |
HBTS60.13.90E |
HBTS80.13.90E |
HBTS60.16.110E |
HBTS80.16.110E |
Max Theoretical Throughput (m3/h) |
90 |
81 |
67 |
81
|
Maximum Pumping Pressure (MPa) |
13 |
13 |
16 |
16
|
Hydraulic System |
Open Double-pump and Double-loop System |
Open Double-pump and Double-loop System |
Open Double-pump and Double-loop System |
Open Double-pump and Double-loop System |
Hydraulic System Pressure (MPa) |
32 |
32 |
32 |
32 |
Motor Type |
Y280M-4 |
Y280M-4/Y315M-4 |
Y315M-4 |
Y315M-4 |
Motor Power (kw) |
90 |
90/110 |
110 |
110 |
Rotate Speed (r/min) |
1480 |
1480 |
1480 |
1480 |
Rated Flow of the Main Oil Pump (L/min) |
281 |
281 |
385 |
385
|
Conveying Cylinder Bore (mm) |
125 |
125 |
140 |
140 |
Master Cylinder Stroke |
1600 |
1800 |
1600 |
1800 |
Concrete Delivery Cylinder Bore/Stroke (mm) |
200/1600 |
200/1600/1800 |
200/1600 |
200/1800 |
Hydraulic Tank Volume (L) |
580 |
580 |
580 |
580 |
Hopper Volume (m3) |
0.68 |
0.68 |
0.68 |
0.68 |
Feeding Height (mm) |
1450 |
1450 |
1450 |
1450 |
Maximum Theoretical Transmission Distance (Vertical/Horizontal) (m) |
280/1200 |
280/1200 |
360/1600 |
360/1600 |
The Degree of Concrete Collapse (mm) |
120~230 |
120~230 |
120~230 |
120~230 |
Overall Dimensions (L x W x H) (mm) |
6000x2100x2600 |
6000x2100x2600 |
6000x2100x2600 |
6000x2100x pumps 2600 |
Weight (kg) |
6000 |
6100/6300 |
6300 |
6500 |

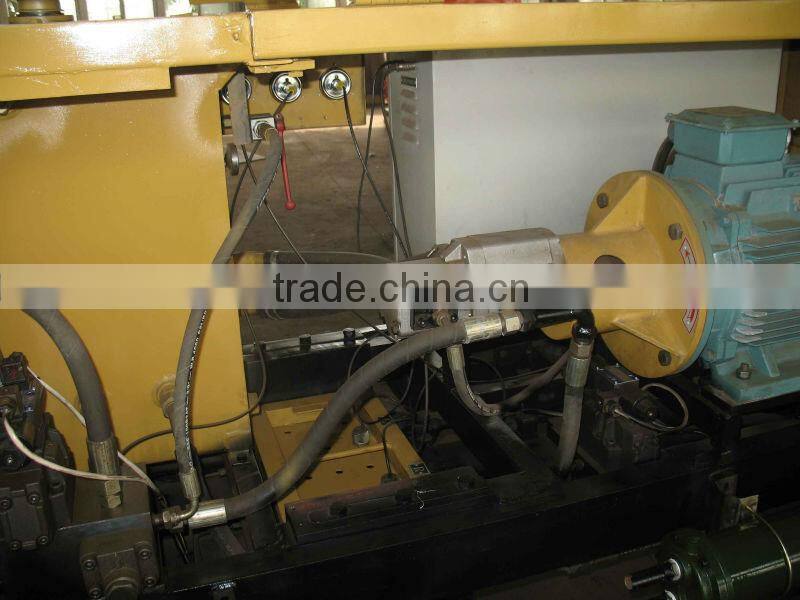

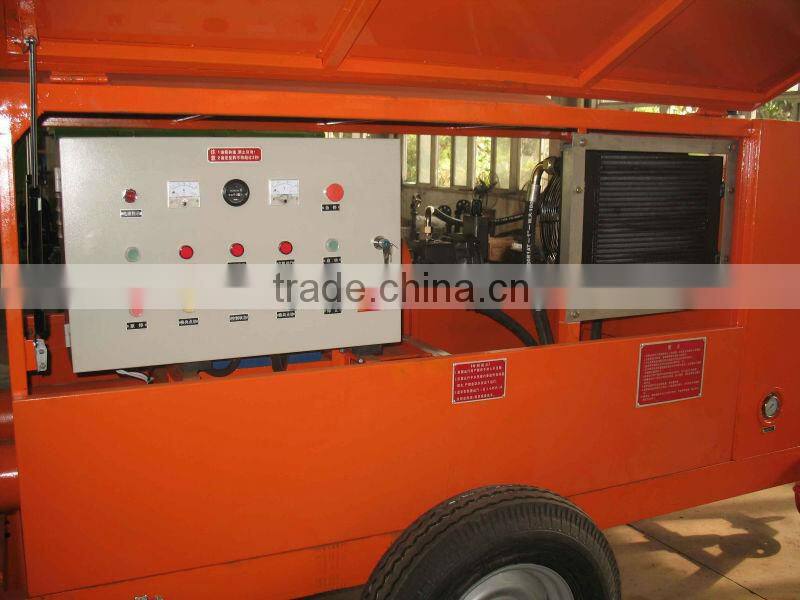

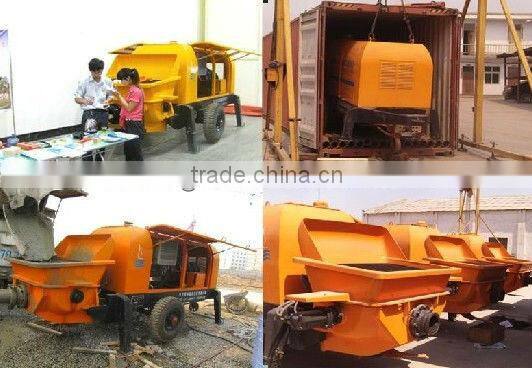

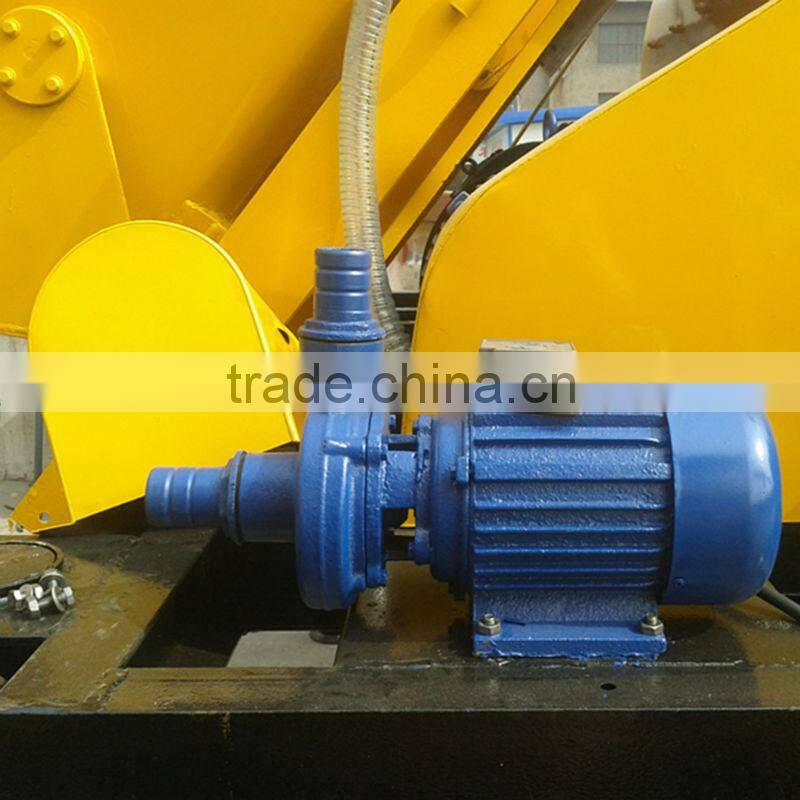

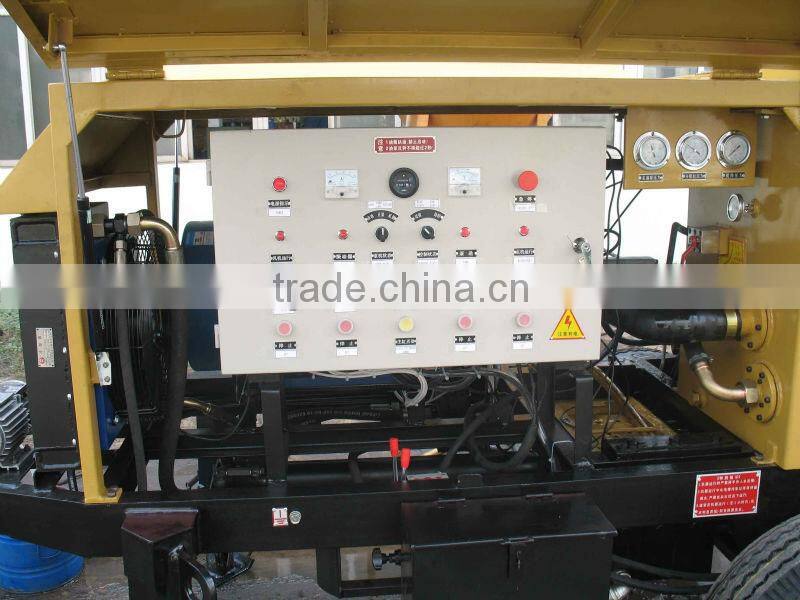

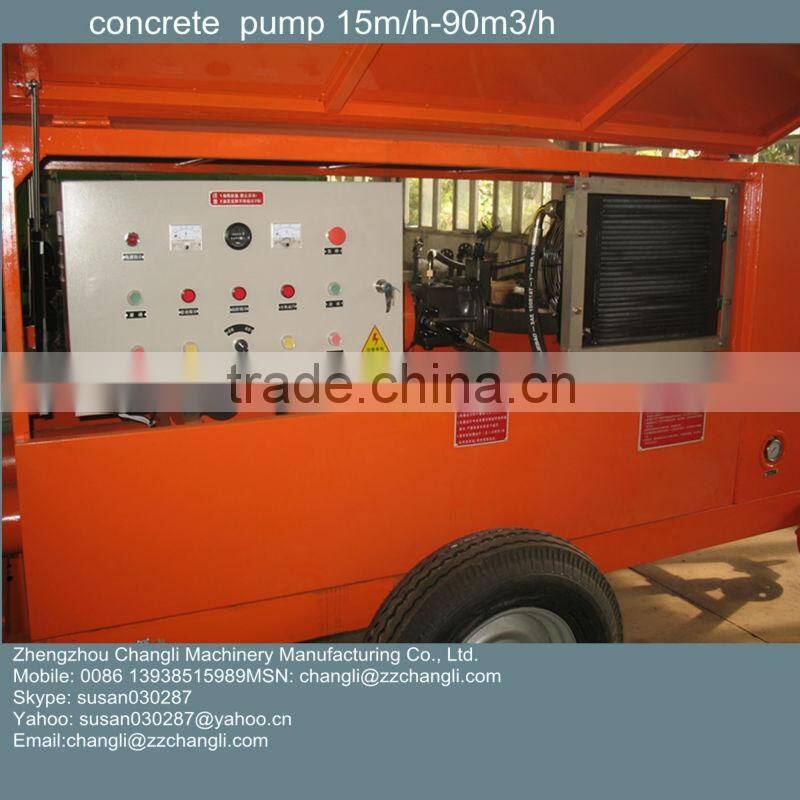

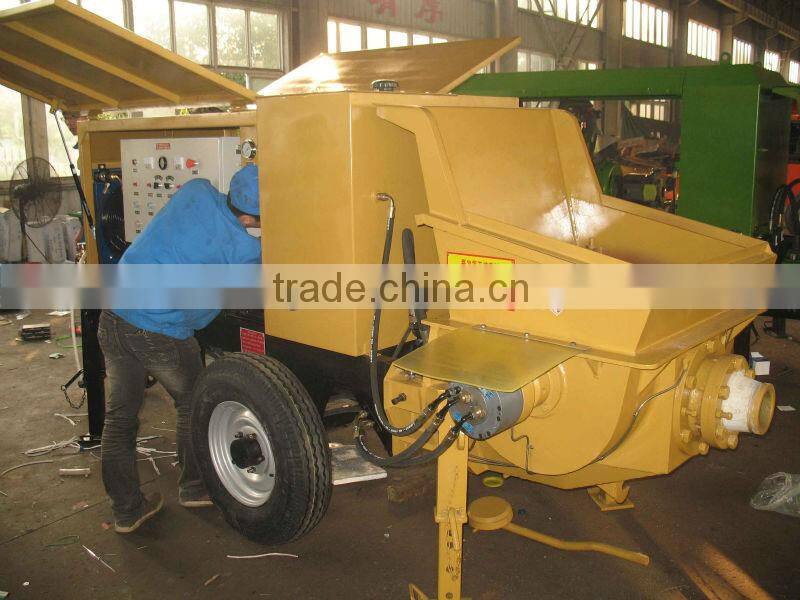

III. Some pictures of concrete mixer pumping machine
