SPRING Driving Windproof Blackout Screens

SPECIFICATION OF SCREEN

OPERATION: SPRING, MOTORIZED, CHAIN.

100% BLACKOUT. ANTI-MOSQUITO.

Isolate the thermal radiation transmittance to 0.1% for energy saving, also isolate the noisy.

Strong wind or shock won’t destroy the products.

Rail guide tube make sure the the fabric smooth and level.

Multi-Purpose Design Possible

For vertical, cant and level surface, indoor and outdoor.

Large Size Possible: Max Width: 6m. Max Height: >7m

TEST:

TENSION TEST

Permissible Tension Tmax

Tmax=Fmax/W=13.5(kg/cm)

WIND/RAIN RESISTANCE TEST

Rain Flow Rate:4L/sqm per minute

Permissible Pressure: 250Pa~750Pa(25.5kg/sqm~76.5kg/sqm)

Permissible Wind Pressure:±3600Pa(±367 kg/sqm)

Test Fabrics:Mesh type fiberglass:SERGE

COLLISION TEST

Test:Weight-ball(1kg) drops from different heights toward the screen

Result:Center Fabrics is broken first before the Slide-Fastener structure

Test Fabrics:Mesh type Fiberglass:SERGE

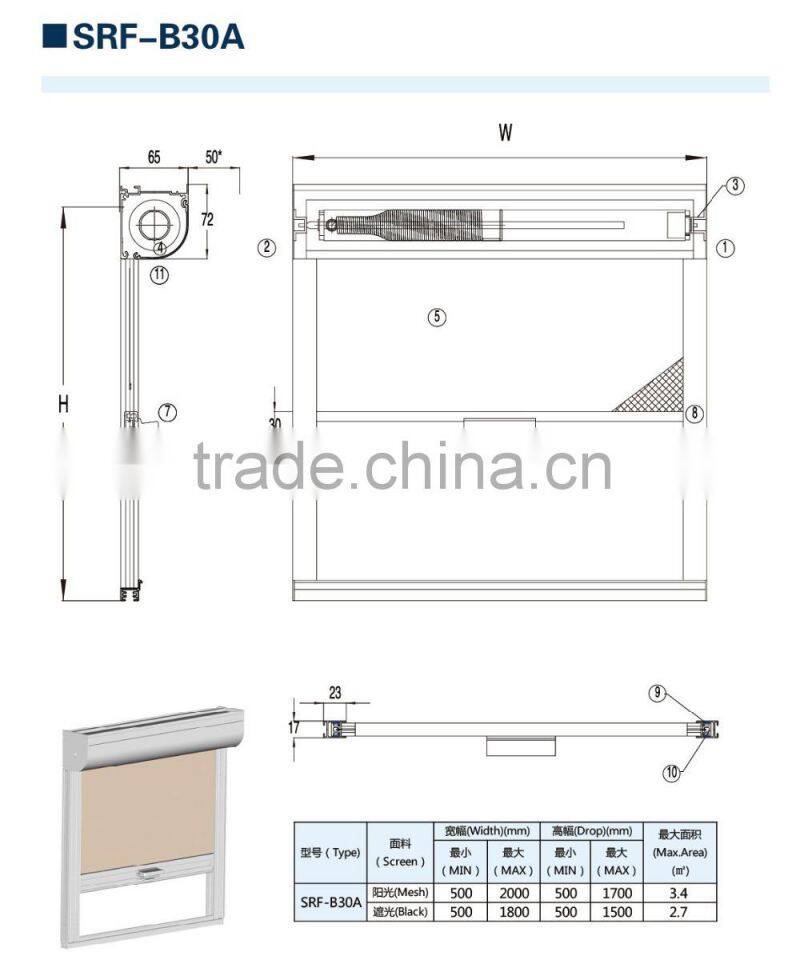

AVAILBE SIZE OF SRF SERIES

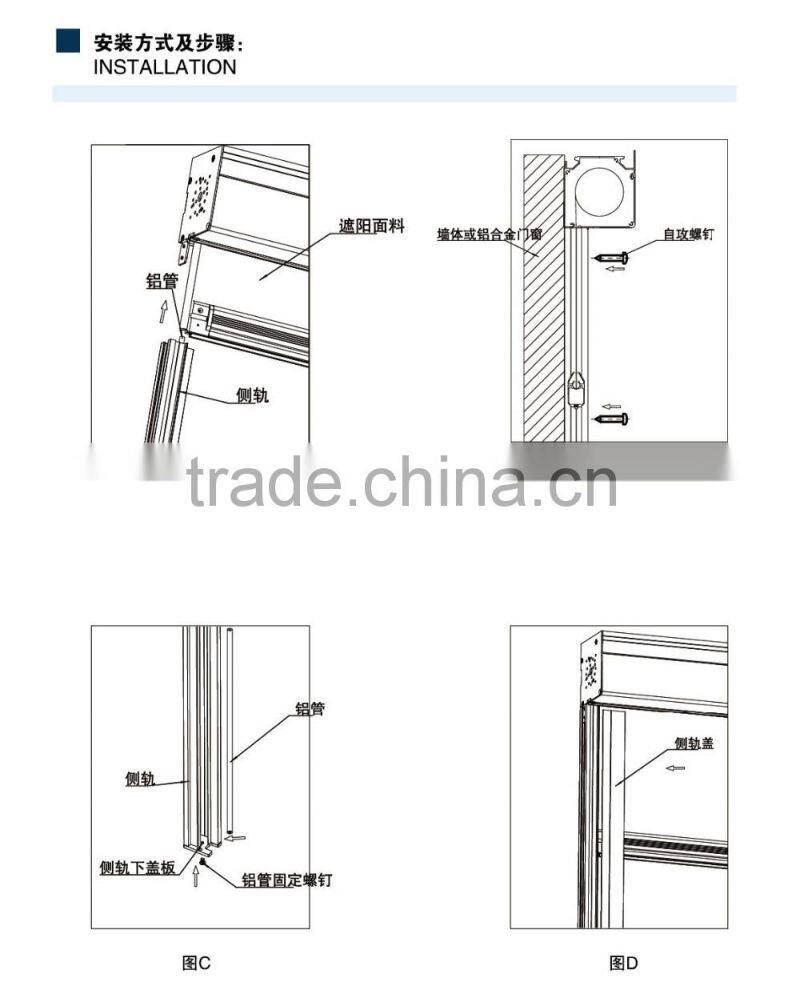

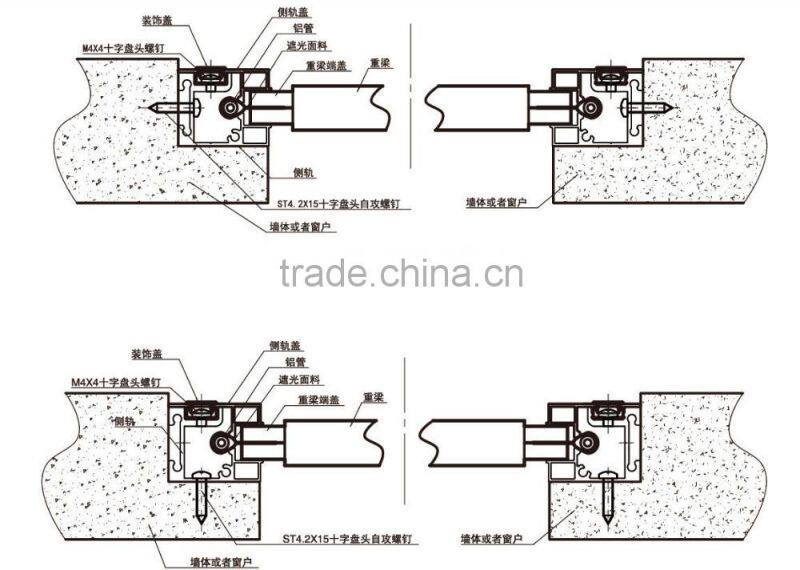

INSTALLATION:

1. Unassemble Rail Guide Cover, rail guide tube and Rail Guide.

2. Insert the plug of cassette awning plug into stock of rail guide.
3. Fix the rail guide and cassette by screw.

4. Insert the rail guide tube into fabric, then rote the rail guide tube on the screw in the rail guide end cap.

5. Fix the rail guide cover by screw and seal the hole by plastic round cap.
