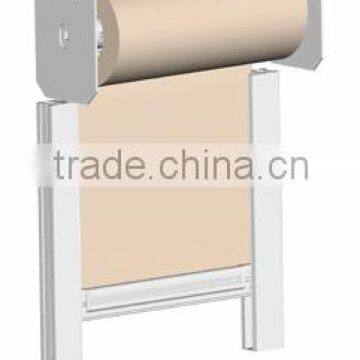

Electric Windproof Window screens
ERF-B60A
SPECIFICATION OF SCREEN
OPERATION: SPRING, MOTORIZED, CHAIN.
100% BLACKOUT. ANTI-MOSQUITO.
Isolate the thermal radiation transmittance to 0.1% for energy saving, also isolate the noisy.
Strong wind or shock won’t destroy the products.
Rail guide tube make sure the the fabric smooth and level.
Multi-Purpose Design Possible
For vertical, cant and level surface, indoor and outdoor.
Large Size Possible: Max Width: 6m. Max Height: >7m
TEST:

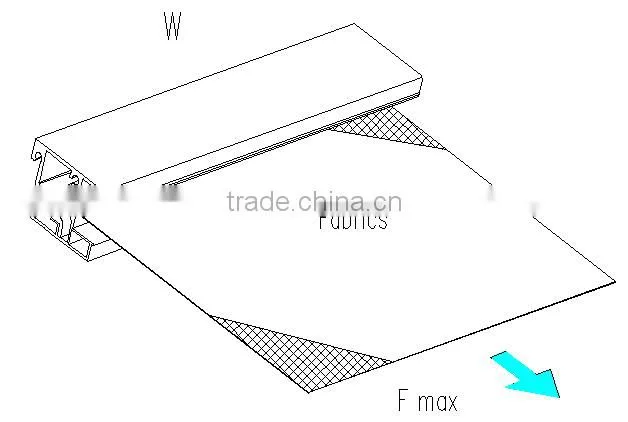

TENSION TEST
Permissible Tension Tmax
Tmax=Fmax/W=13.5(kg/cm)

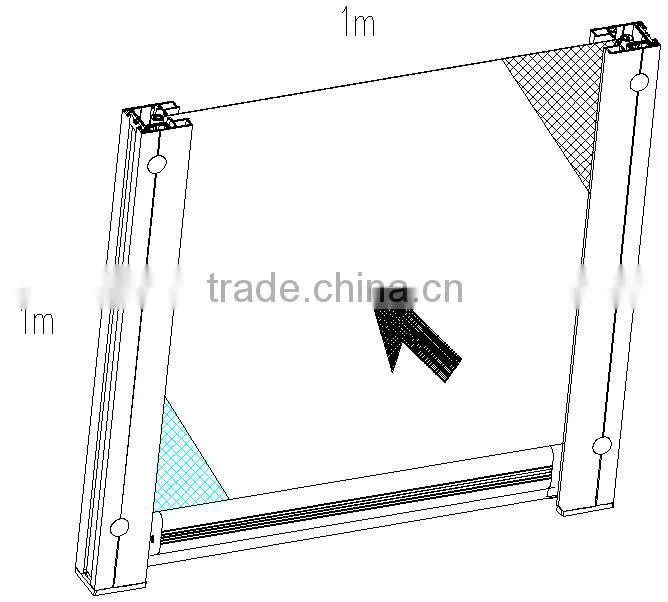

WIND/RAIN RESISTANCE TEST
Rain Flow Rate:4L/sqm per minute
Permissible Pressure: 250Pa~750Pa(25.5kg/sqm~76.5kg/sqm)
Permissible Wind Pressure:±3600Pa(±367 kg/sqm)
Test Fabrics:Mesh type fiberglass:SERGE

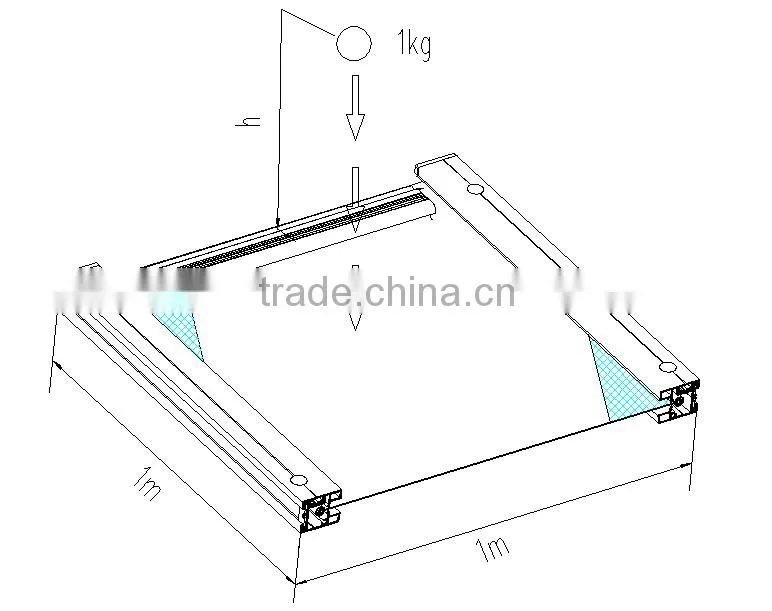

COLLISION TEST
Test:Weight-ball(1kg) drops from different heights toward the screen
Result:Center Fabrics is broken first before the Slide-Fastener structure
Test Fabrics:Mesh type Fiberglass:SERGE

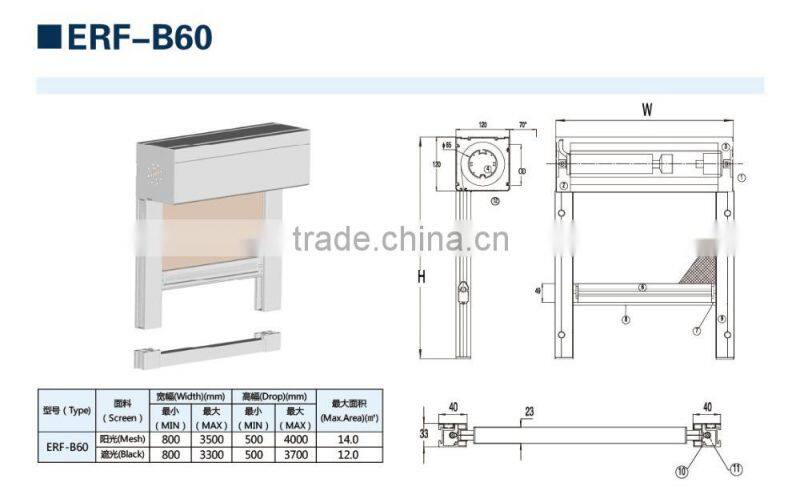

AVAILABLE SIZE FOR ERF-B SERIES
| Type | Screen | Width (mm) | Drop(mm) | Max.Area (Square Meter) | ||
| MIN | MAX | MIN | MAX | |||
| ERF-B40A | Mesh | 700 | 2800 | 500 | 2600 | 7.2 |
| Black | 700 | 2600 | 500 | 2300 | 6.0 | |
| ERF-B40 | Mesh | 700 | 2800 | 500 | 3000 | 8.4 |
| Black | 700 | 2600 | 500 | 2700 | 7.0 | |
| ERF-B60 | Mesh | 800 | 3500 | 500 | 4000 | 14.0 |
| Black | 800 | 3300 | 500 | 3700 | 12.0 | |
| ERF-B80 | Mesh | 800 | 5000 | 500 | 3800 | 19.0 |
| Black | 800 | 4500 | 500 | 3500 | 16.0 | |

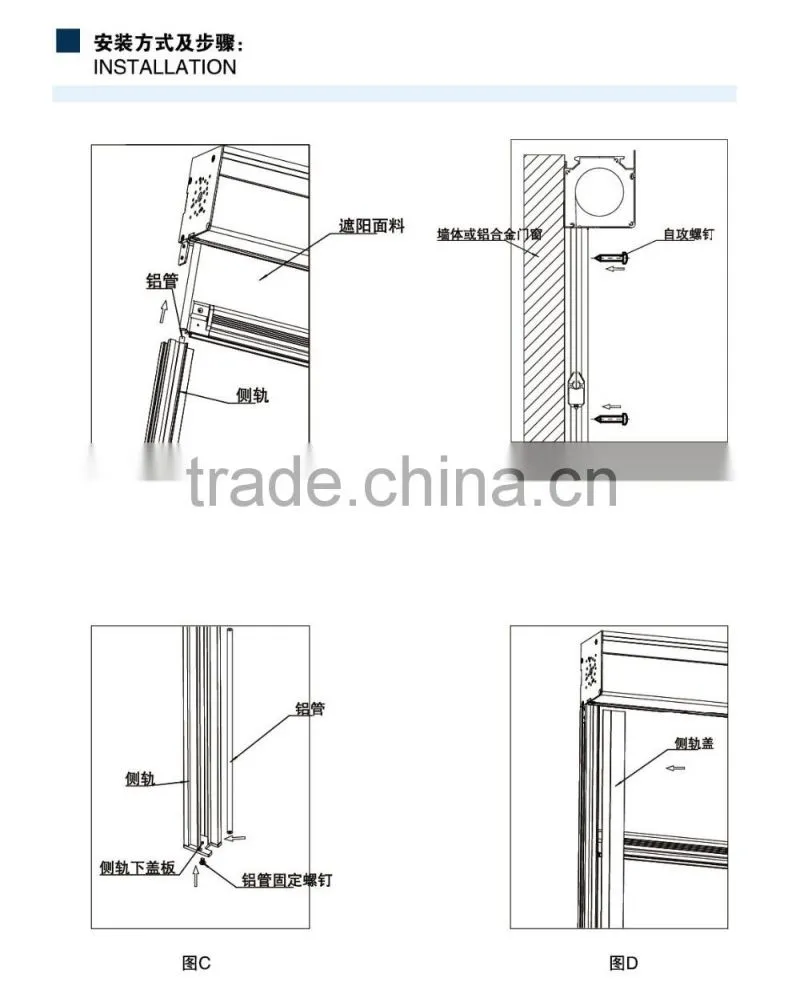

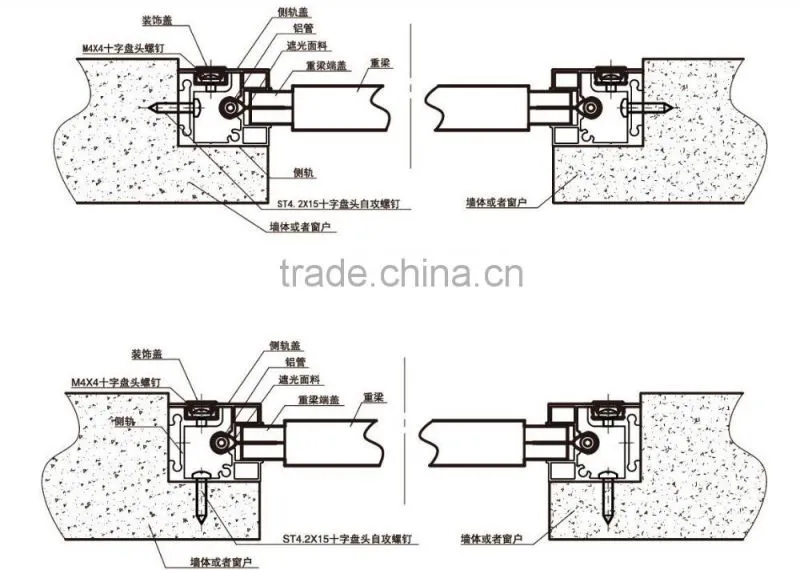

INSTALLATION:
- Unassemble Rail Guide Cover, rail guide tube and Rail Guide.
- Insert the plug of cassette awning plug into stock of rail guide.
- Fix the rail guide and cassette by screw.
- Insert the rail guide tube into fabric, then rote the rail guide tube on the screw in the rail guide end cap.
- Fix the rail guide cover by screw and seal the hole by plastic round cap.
GUARANTEE | ||
COMPONENTS |
GUARANTEE |
MAKR |
FRAME |
TWO YEARS GUARANTEE |
|
FABRIC |
TWO YEARS GUARANTEE FOR ACRYLIC FIVE YEARS GUARANTEE FOR EUROPE ACRYLIC |
|
MOTOR |
FIVE YEARS GUARANTEE |
ONLY REPLACEMENT |

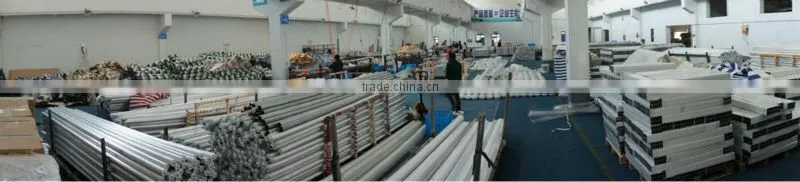

HANGZHOU SHY SHADING TECHNOLOGY CO.,LTD. is founded in 2005 with SHY CO.,LTD which is located in Tsu City, Japan and have produced sunshade products since 1919. The company is specialized in high-end sunshade and energy-saving products, including awnings, roller blinds, tubular motors, etc.
We have our own R&D center with a strong, professional, hard working and high efficient team. We can design and produce different style and function awning and roller blinds according to customer's requirement and produced under serious quality control system.
Driven by innovation, we commit ourselves to the new sunshade and environment-friendly products for the benefit of people across the world.
