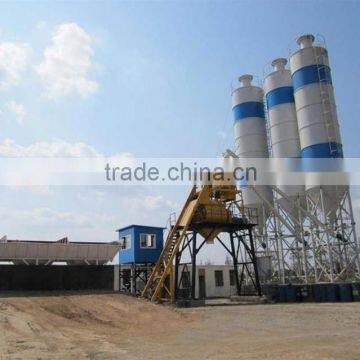

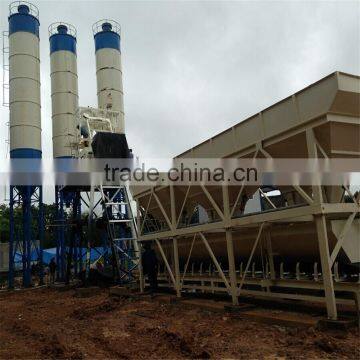

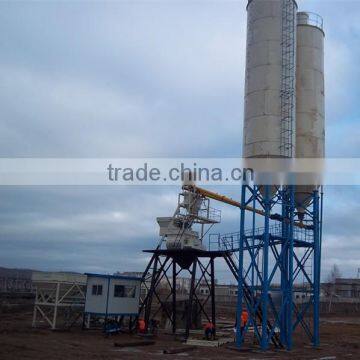

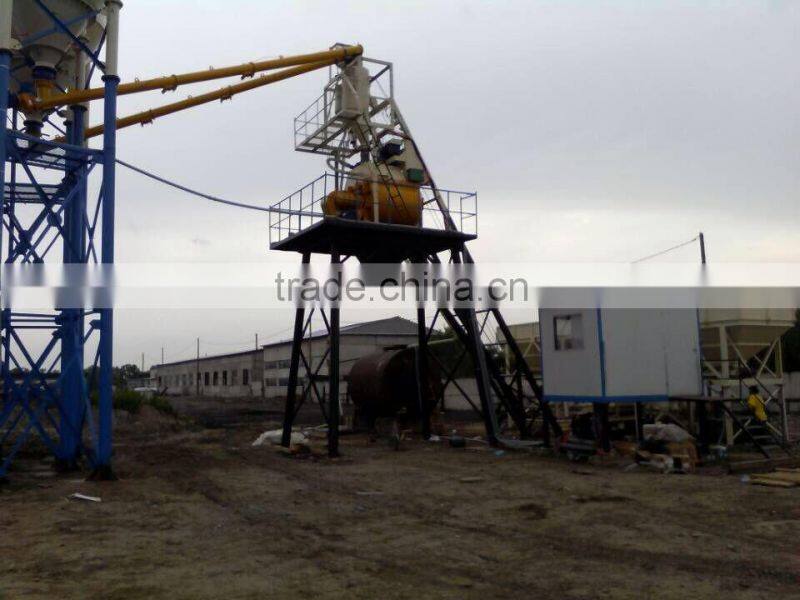

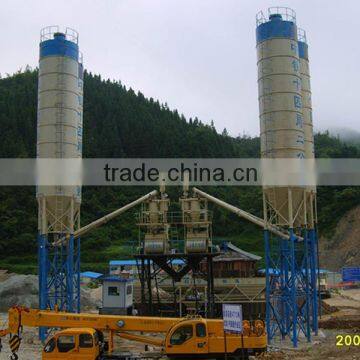

ready mix concrete plant HZS35
Main Parameters about our HZS35 concrete batching plant
Item |
Unit |
Parameter |
|
Max. Productivity |
m3/h |
35 |
|
Nominal Capacity of Mixer |
m3 |
0.75 |
|
Aggregate Storage Capacity |
m3 |
3×2 |
|
Rated Delivery Volume of Screw Conveyor |
t/h |
35 |
|
Capacity of Cement Cabin |
t |
100 |
|
Mixing Motor Power |
kw |
30 |
|
Lifting Motor Power |
kw |
7.5 |
|
Discharge Height |
m |
3.8 |
|
Max. Weigh |
Aggregate |
kg |
2000 |
Cement |
kg |
400 |
|
Water |
kg |
200 |
|
Additive |
kg |
40 |
|
Measuring Accuracy |
Aggregate |
% |
±2 |
Powder |
% |
±1 |
|
Water |
% |
±1 |
|
Additive |
% |
±1 |
|
Advantages of this type concrete batching plant:
1. Lower cost, high efficiency to product.
2. Needs small spaces can installation, and easy to moving to another space.
3. with 34 years product exoerience, we can gurranty about our quality and service.

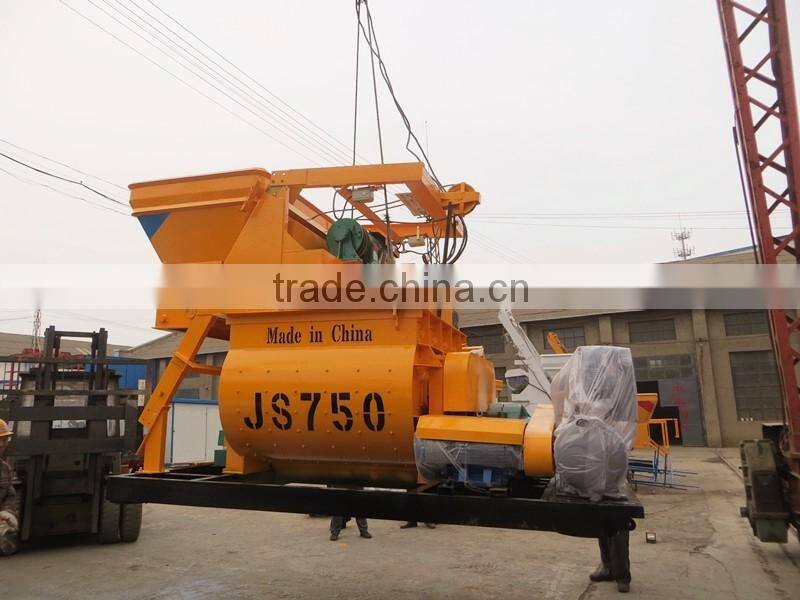

Mixing system(Twin-shaft concrete mixer JS750)
Batching system(PLD serious concrete batching plant with accurate weighing system)
Cement silo and screw conveyor(30T, 50T, 60T, 80T etc. for your choice)
Control system(control panel easy to learn)
Weighing system(water, cement, fly ash, additive weighing system)
