Home > Products > plating ball valve > Ball Valve,full Flow ,female/female,flat Lever Handle Model LX1008
Ball Valve,full Flow ,female/female,flat Lever Handle Model LX1008
- ningbo shanghai
- T/T
You May Like
-
China Manufacture Forged Brass Ball Valve,High-quality Ball Valve,Yuhuan Brass Ball Valve
-
Brass Material and Water Media 1/2" Brass Electric Motorized Ball Valve
-
Brass Material Hpb57-3,CW617n,Hpb59-1 Brass Ball Valve Iron Handle
-
Made in China High Quality Brass Ball Valve for Water 3/4" up to 2"
-
2016 Hot Sales Paltingflow Full Port With Steel Handle Brass Ball Valve
-
High Quality Popular Type PN25 Safe Brass Ball Valve
Product Details
| Standard or Nonstandard | Standard | Structure | Ball | |
| Pressure | Medium Pressure | Power | Hydraulic | |
| Material | Brass | Temperature of Media | High Temperature | |
| Media | Water | Port Size | 1/2"-2" | |
| Place of Origin | Zhejiang, China | Model Number | LX1008 | |
| Brand Name | yapai | Application | General |
Product Description
THANK YOUR FOR INTERESTING OUR PRODUCTS
WE PROVIDE SAMPLE FREE! PLEASE CONTACT Minnie 8613626625015(Whatsapp)

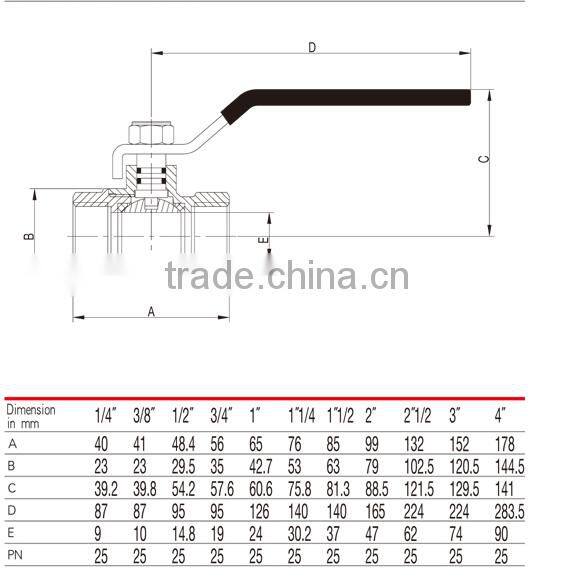

| Product Description of brass ball valve |
Forged Brass ball valve (Lead Free)
Features
Working pressure 25 bar (362.5 psi)
Working temperature from -10℃ to +120℃(from 14°F to 248°F)
Thread ISO228 (equivalent to DIN 259 and BS2779)
Opening/closing test 10000 times
Suitable for water services,heating and air-conditioning plants,compressed air systems.
| NO. | ITEM | TOTAL | MATERIAL |
| 1 | BALL VALVE BODY | 1 | BRASS |
| 2 | SEALING WASHER | 2 | PTFE |
| 3 | BALL | 1 | BRASS |
| 4 | O-RING | 1 | NBR |
| 5 | PACKING NUT | 1 | BRASS |
| 6 | STEM | 1 | BRASS |
| 7 | HANDLE NUT | 1 | PLATED STEEL |
| 8 | LOCK WASHER | 1 | PLATED STEEL |
| 9 | BALL PACKING | 1 | PTFE |
| 10 | HANDLE | 1 | PLATED STEEL |
| 11 | BALL VALVE CAP | 1 | BRASS |



Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe.
Q: Can I get samples from your factory?
A:Yes, samples can be provided,however,you pay freight.
Q:What’s your payment term?
A:T/T 30% down payment, balance to be paid before shipment,
L/C at sight, Western Union, Paypal, Alibaba online orders, etc.
Q: What is delivery time?
A: A week for sample;15-30 days for mass production.
Q: If products have some quality problem, how would you deal with?
A: We will responsible for all the quality problems.
Contact Us
- Taizhou Yapai Valve Co., Ltd.
- Contact nameMinnie hu Chat Now
- Phone86 -0576 -80735009
- AddressLongxi Industrial Zone ,Yuhuan County, Taizhou, Zhejiang, China (Mainland), Taizhou, Zhejiang
