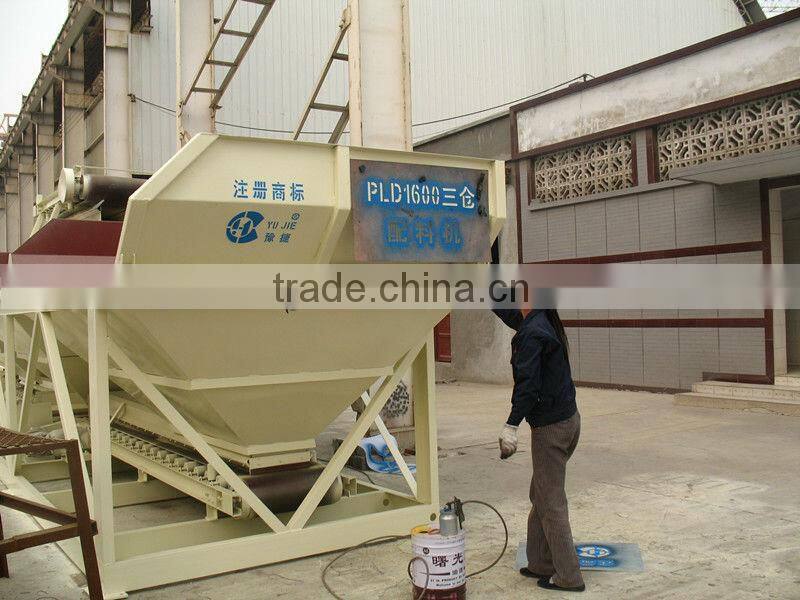

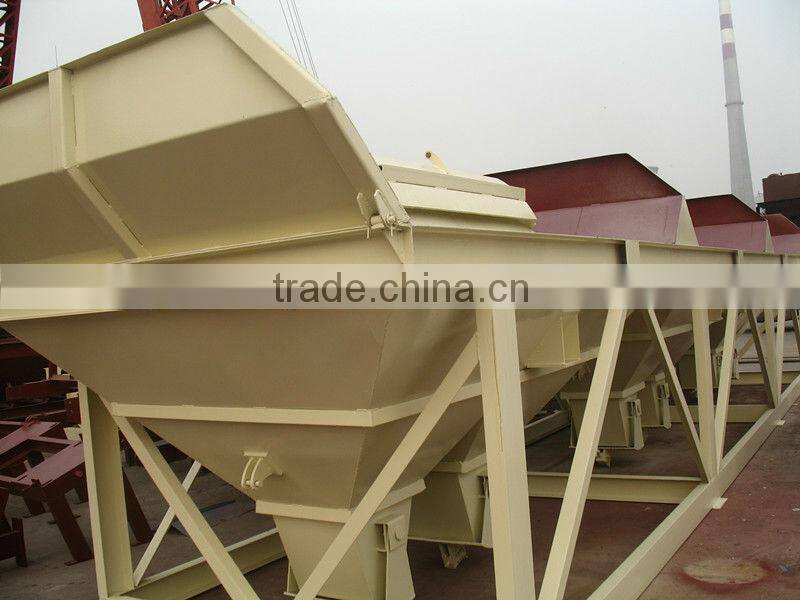

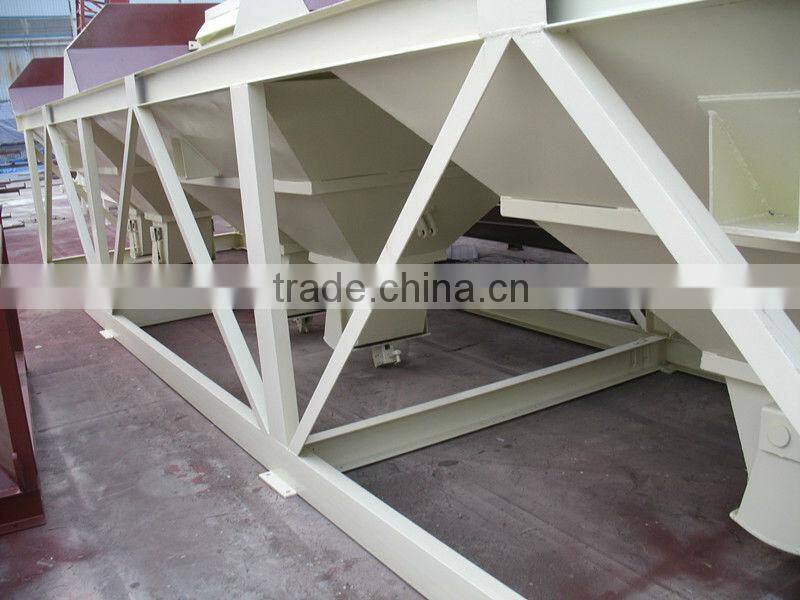

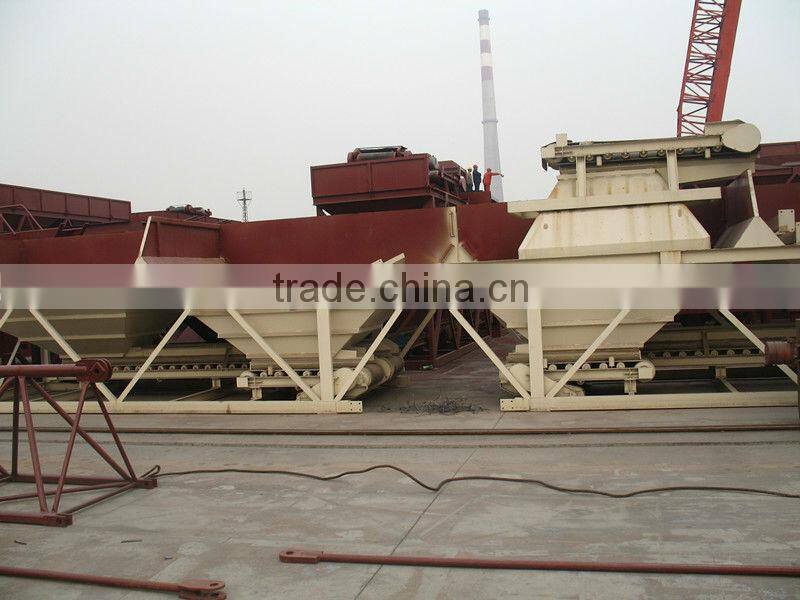

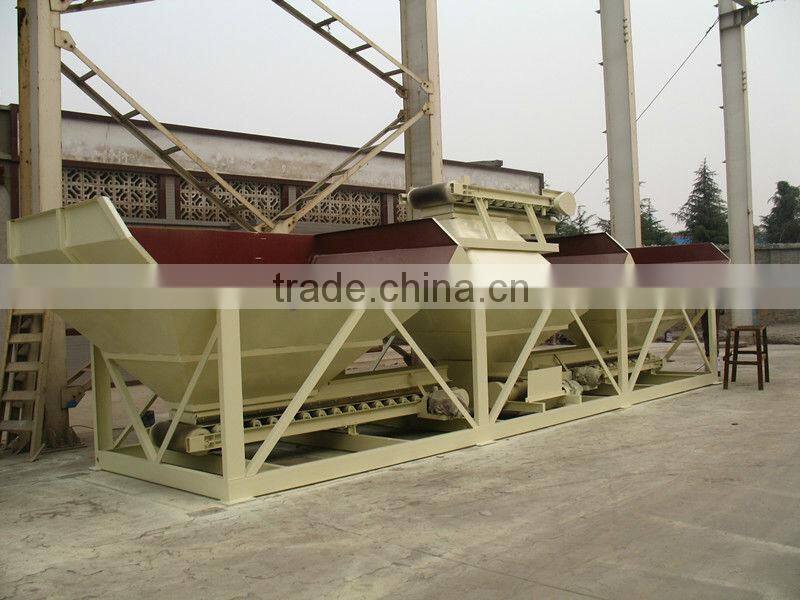

PLD1600-3 Belt Conveying Concrete Batching Machine for Concrete Batching Station
1. Brief Introduction
PLD Concrete Batching Machine is a kind of front-desk automatic batching equipment equipped with the mixer. This concrete batching machine can finish automatically the batching process of sand, stone, cement etc. 3~6 kinds of material according to the cement proportion designed by user. This concrete batching machine can batch materials to one or two mixer, so it effectively improves the working efficiency.
2. Salient Features
PLD Concrete Batching Machine adopt electronic weighing, computer control, digital display, and wired remote control. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, easy operation, reasonable design, compact structure and long service life. PLD Concrete Batching Machine is widely used in all kinds of large and medium-sized construction project and concrete mixing station.
3.Technical Parameters
Model |
PLD1600-3 |
PLD1600-4 |
Volume of Scale Hopper (m3) |
1.6 |
1.6 |
Volume of Storage Hopper (m3) |
8.38*3 |
8.38*4 |
Theoretical Productivity (m3/h) |
80 |
80 |
Batching Accuracy |
±2% |
±2% |
Aggregate Sorts |
3 |
4 |
Feeding Height (mm) |
2944 |
3050 |
Power (kw) |
4*4=16 |
4*5=20 |
Overall Dimensions (L*W*H) |
10440*2100*3594 |
13900*250*3640 |
Overall Weight (kg) |
4725 |
6300 |
