pld concrete batching machine,construction machine concrete batch plant,batching machine price
Features:
1. This series of products adopt electronic weighing, digital display.
2. It has the features of accurate weighing, high batching accuracy, fast speed, strong controlling ability, simple operation, reasonable design, compact structure and long service life.
3. Widely used in all kinds of large and medium-sized construction project and concrete mixing station.
Main Technical Parameter of batching machinery PLD800
Item |
Unit |
Parameter |
||
PLD800-2 |
PLD800-3 |
|||
Weighing Hopper |
m3 |
0.8 |
0.8 |
|
material hopper |
m3 |
3.2×2 |
3.2×3 |
|
Productivity |
m3 /h |
48 |
48 |
|
Batching Accuracy |
% |
±2 |
±2 |
|
Amount of Batching aggregate |
|
2 |
3 |
|
Charging Height |
mm |
2840 |
2840 |
|
Power |
t/h |
4×3 |
4×4 |
|
Outline Dimension (L×W×H) |
Mm |
6200x1900x2840 |
9330x1900x2840 |
|
Weight |
kg |
2050 |
3075 |
|
PLD series batching machinery
Type |
Kinds of Aggregate |
Capacity of Weighing Dipper (L) |
Max. Capacity (kg) |
Productivity (m3/h) |
Feeding Height (mm) |
PL560 |
2 |
560 |
1000 |
30Min |
2300 |
PL800 |
2/3 |
800 |
1500 |
48Min |
2364 |
PL1200 |
2/3/4 |
1200 |
2000 |
72Min |
2774 |
|
PL1600 |
2/3/4 |
1600 |
3000 |
96Min |
2774 |
3/4 |
2734 |
||||
PL2400 |
3/4 |
2400 |
4000 |
144Min |
2670 |
PL3200 |
4 |
3200 |
3000X2 |
192Min |
2670 |
3/4 |
2000X3/4 |
||||
PL4800 |
4 |
4800 |
3000X4 |
280Min |

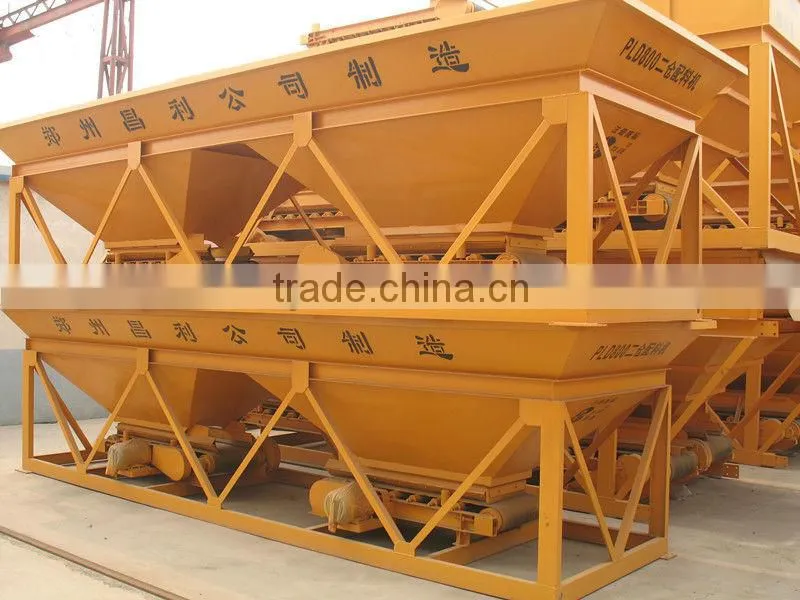

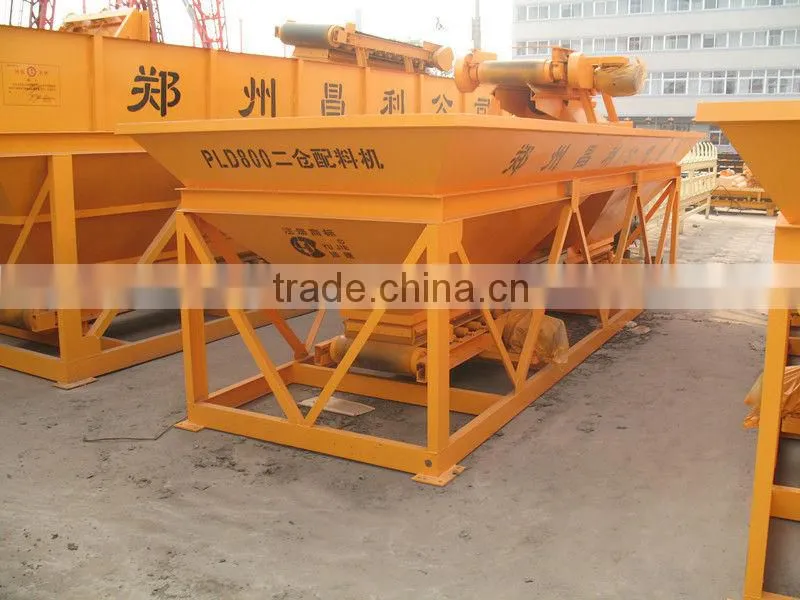

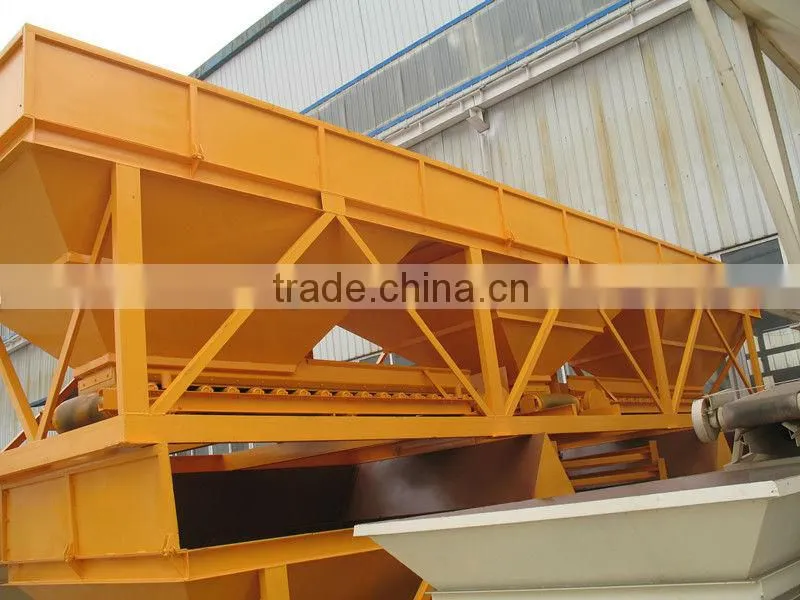

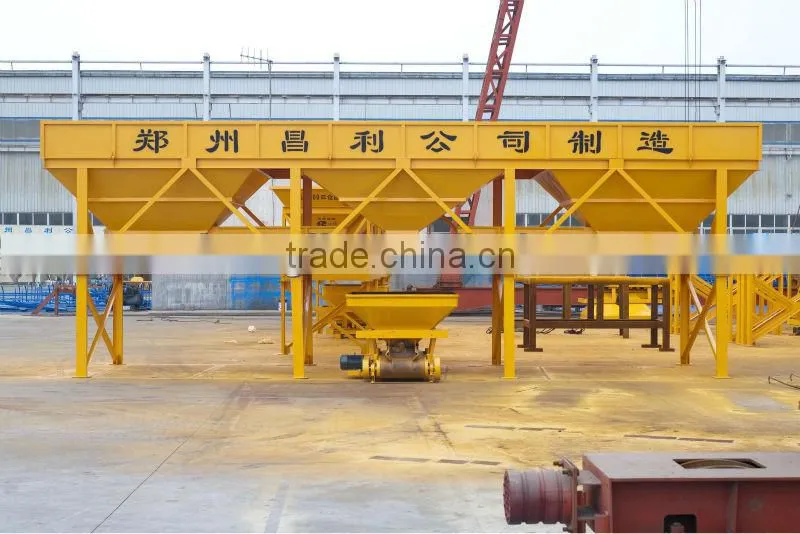

View of product
Zhengzhou Changli Machinery Manufacturing Co., Ltd. was established in 1982. It is a comprehensive group corporation combined with design, production and sale sectors, located in Construction Machinery Base---Xingyang, Zhengzhou City. With more than 20 years development, Zhengzhou Changli has become one of the leading professional manufacturers and exporters of Construction Machinery in China. Till now, the factory area covering reaches 120,000m2 and have about 1000 person, including engineers,
workers, sales, and service people.
OUTSTANDING PRODUCTS:
Product Name |
Type |
Hopper Type Concrete Mixing Plant |
HZS25/35/50//75/100 2 HZS25/35/50//75/100 |
Conveyor Belt Type Concrete Mixing Plant |
HZS60/90/120/150/180/200/240 2 HZS60/90/120/150/180/200/240 |
Mobile Concrete Mixing Plant |
YHZS30/50/60/75/90 |
JS Series Concrete Mixer |
JS500/750/1000/1500/2000/3000/4000 |
Concrete Batching Machine |
PL800/1200/1600/2400/3200/4800 |
Screw Conveyor |
LSY219/273/323-4/6/8/9/10/12/15 |
Cement Silo |
30T~500T |
WELLCOME TO VISIT US
