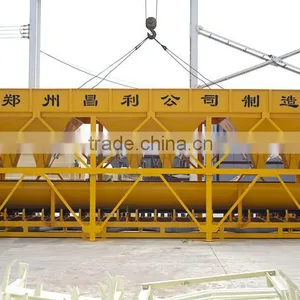

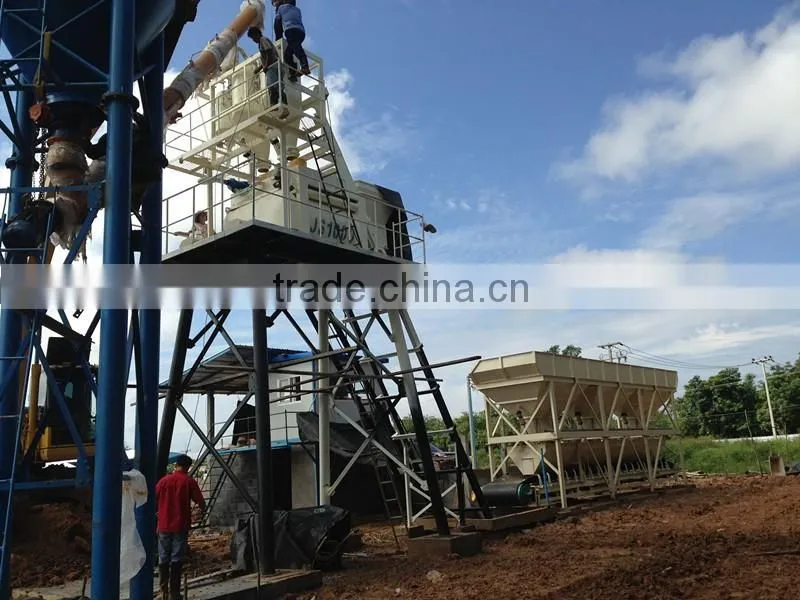

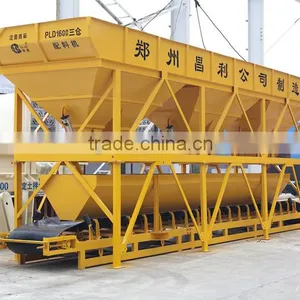

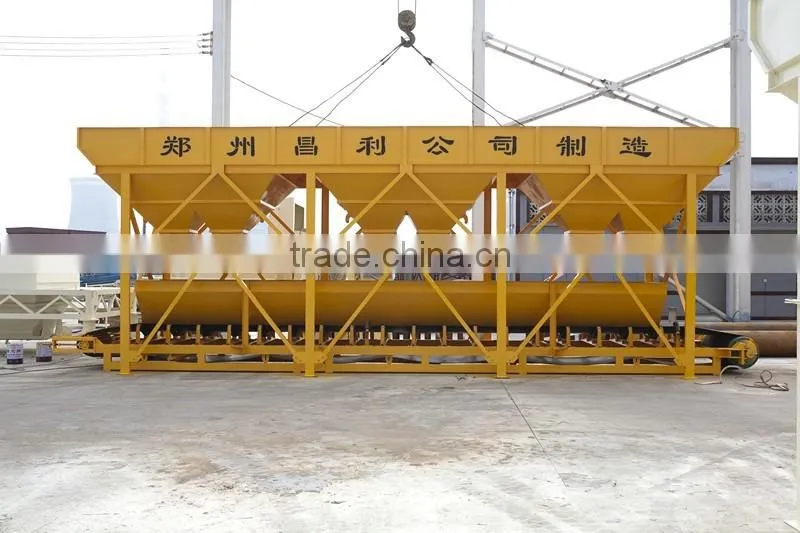

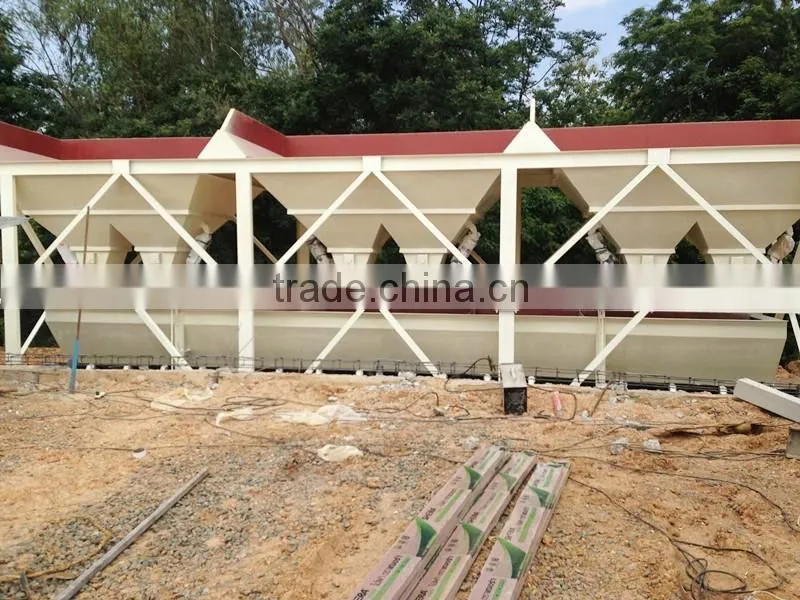

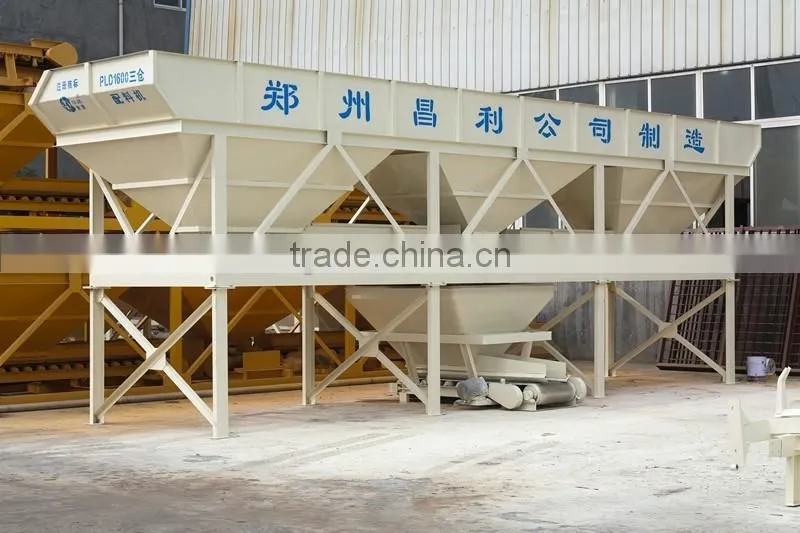

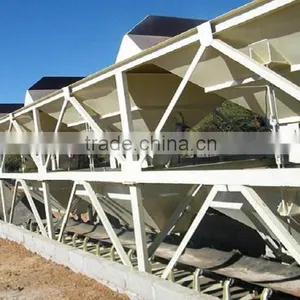

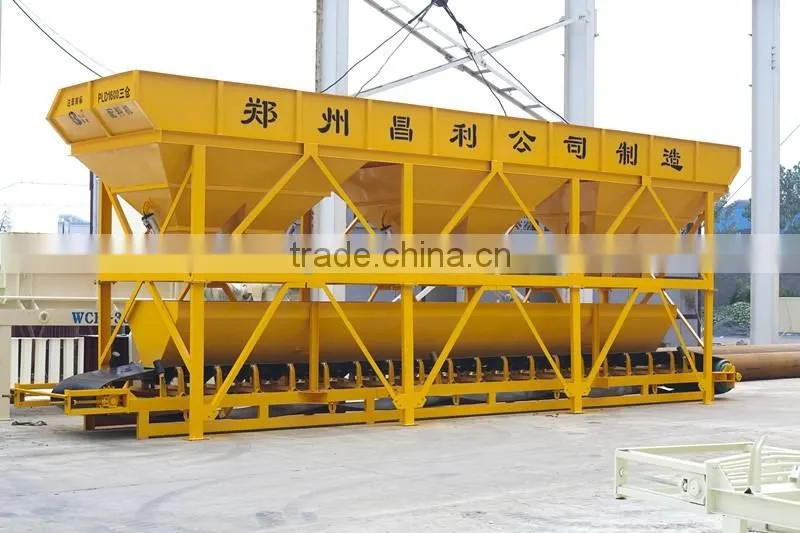

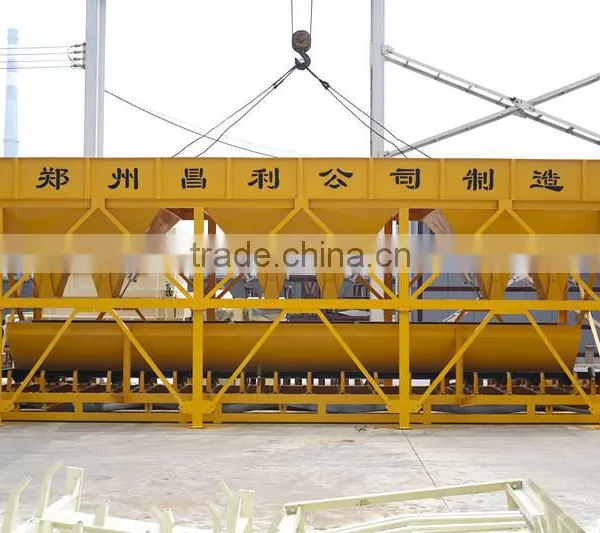

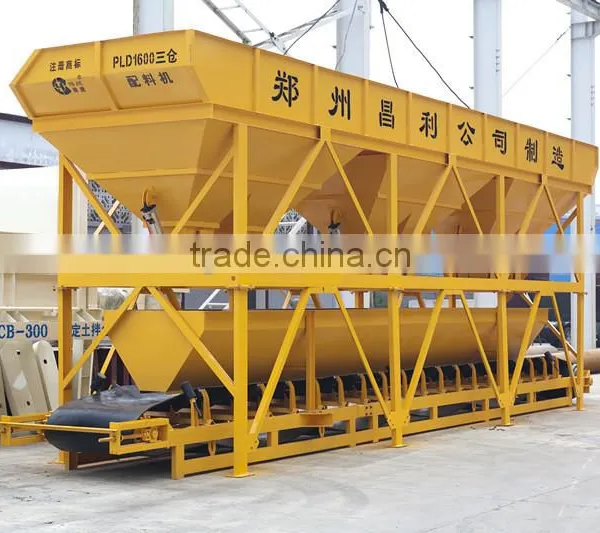

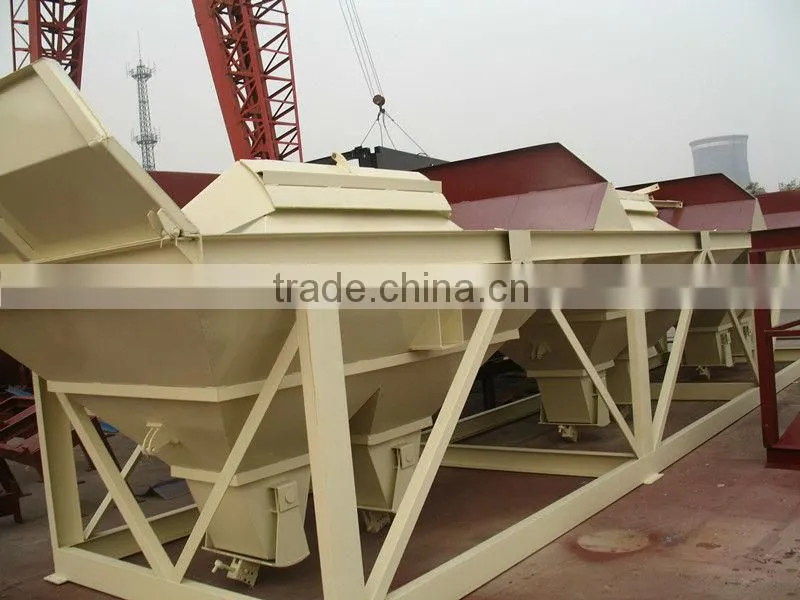

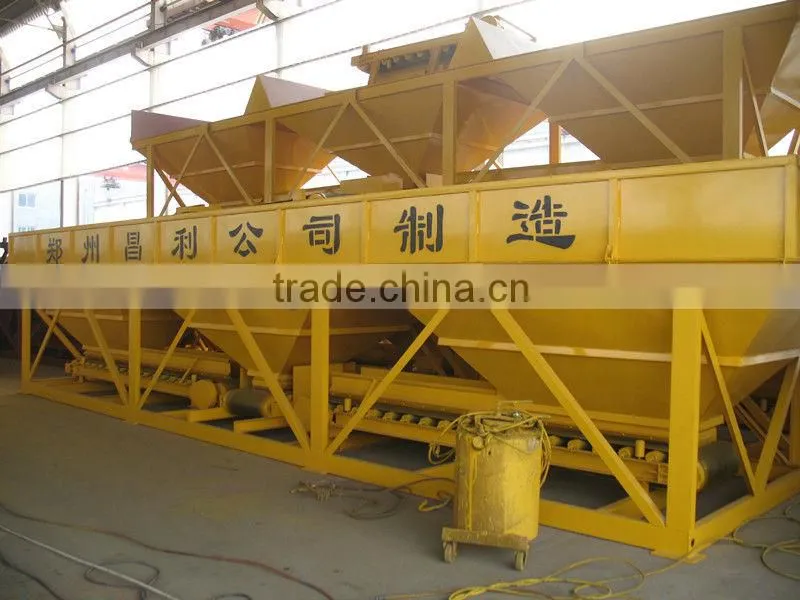

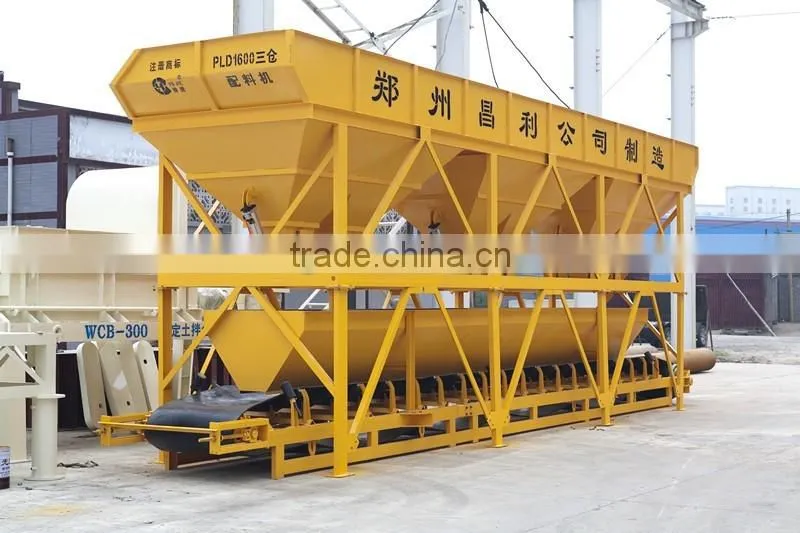

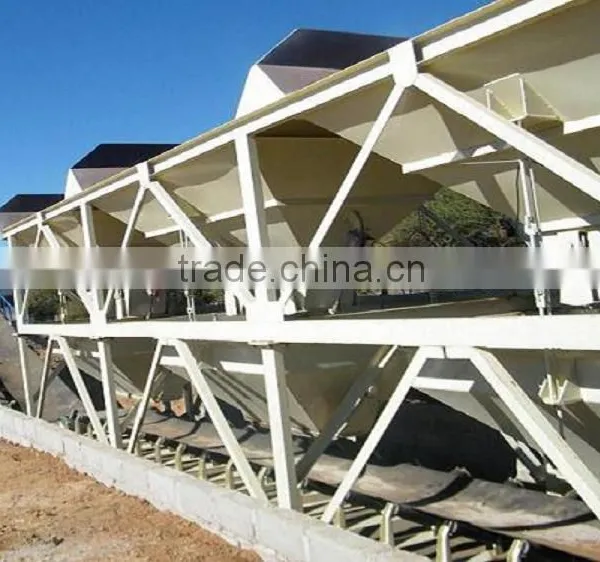

PLD1600 concrete batching machine
1.The introduction of the machine
1)PLD1200 concrete batching machine is a kind of foreground batching equipment with the mixer
2) This series mainframe adopts the electronic weighing, microcomputer control,digital display and wired remote control, with precise weighing, high batching precision, fast speed, strong control funtion, easy operation, and other excellences.
2.Advantage of the machine
a.The storage hopper of our batching machine is prolonged at some extent that can avoid the material being sprinkled.
b.Each and every aggregate is weighed individually or accumulatively, and the weighing accuracy is guaranteed. The accuracy of aggregates proportional ratio is realized through computer control
system, which automatically re-feeds the aggregates if there is shortage of weight, warns if there is overweight.
c.The batching machine can be used to weight the cement in bulk to improve the quality of the cement and save the money of the customers.
3.Main technical data of batching machine
Type |
PLD560 |
PLD800 |
PLD1200 |
PLD1600 |
PLD2400 |
PLD3200 |
PLD4800 |
Kinds Of Aggregate |
2 |
2/3 |
2/3/4 |
2/3/4 |
3/4 |
3/4 |
4 |
Weighing Hopper Capacity |
560L |
800L |
1200L |
1600L |
2400L |
3200L |
4800L |
Aggregate Bin Capacity |
2X.0.95 m³ |
2/3x3.2 m³ |
2/3/4X7.3 m³ |
2/3/4X8.38 m³ |
3/4X8.38 m³ |
3/4X15.6 m³ |
4X25 m³ |
Productivity |
30m³/h |
48m³/h |
60m³/h |
80m³/h |
120m³/h |
160m³/h |
280m³/h |
Feeding Height |
2300 mm |
2840 mm |
2656/2981mm |
2944/3050 mm |
3050mm |
4130mm |
4200mm |
Batching Accuracy |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
±2% |
Power |
3x4kw |
3/4x4kw |
3/4/5x4kw |
3/4/5x4kw |
4/5x5kw |
4/5x5kw |
4x7.5kw |
