Factory Price!!Small Concrete Pump for sale,used concrete pump truck,putzmeister concrete pumps and hose type
Characters:
.Power system adopts the domestic famous brand and diesel engine

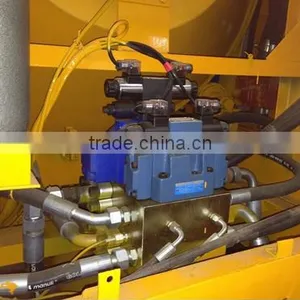

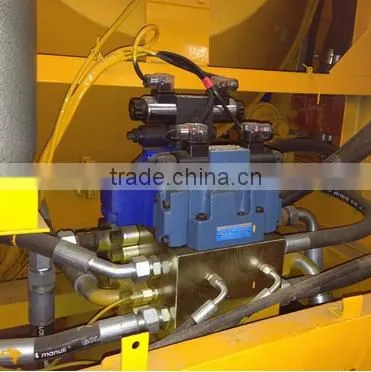

·Using three-pump system, hydraulic loop does not interfere with each other ,the system runs stably , high reliability;
·With anti-pump function, to promptly eliminate the failure of blocking tube , for a short period of time and reliable downtime;
·Using advanced S tube corundum, can automatically compensate the wear gap between the parts, good sealing performance;
·Using durable alloy glasses plate and cutting ring, long service life;
·Long stroke cylinder, extended the service life of cylinder and piston;
·Optimal design of hopper, easy to clean, absorbing better;
·Equipped with hydraulic driving high pressure cleaner, cleaning faster, less water;
Main parameter of Factory Price!! 15 Cubic new Trailer Small mini portable trailer concrete pump
Item |
XHBT-15SA |
Max. Theoretical Throughput (m3/h) |
15 |
Max. Pumping Pressure (MPa) |
8 |
Max. Theoretical Vertical Conveying Distance (m) |
110 |
Max. Theoretical Horizontal Conveying Distance (m) |
500 |
Max. Aggregate Diameter (mm) |
30 |
Slump (cm) |
12~23 |
Conveying Pipe Radius (mm) |
100A/70A |
Number of Conveying Cylinder (piece) |
2 |
Conveying Cylinder Bore X Piston Stroke (mm) |
Φ140×700 |
Hydraulic Oil Tank Capacity (L) |
180 |
Feeding Height (mm) |
1100 |
Hopper Capacity (m3) |
0.30 |
Power of Main Electric Motor (kw) |
30 |
Dimension (Length x Width x Weight) (mm) |
4000x1350x1550 |
Total Weight (kg) |
2200 |

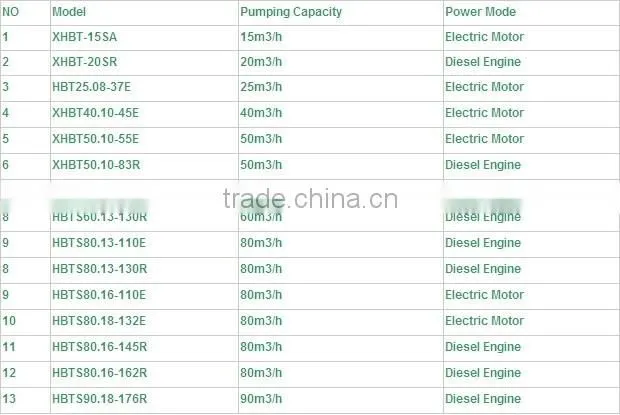

Other Concrete pumps for your choose

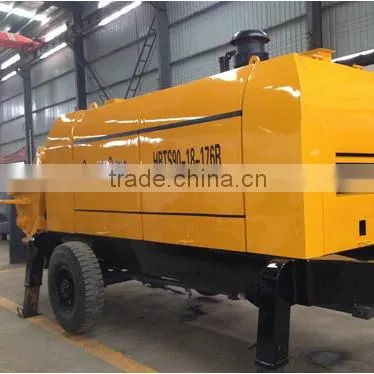

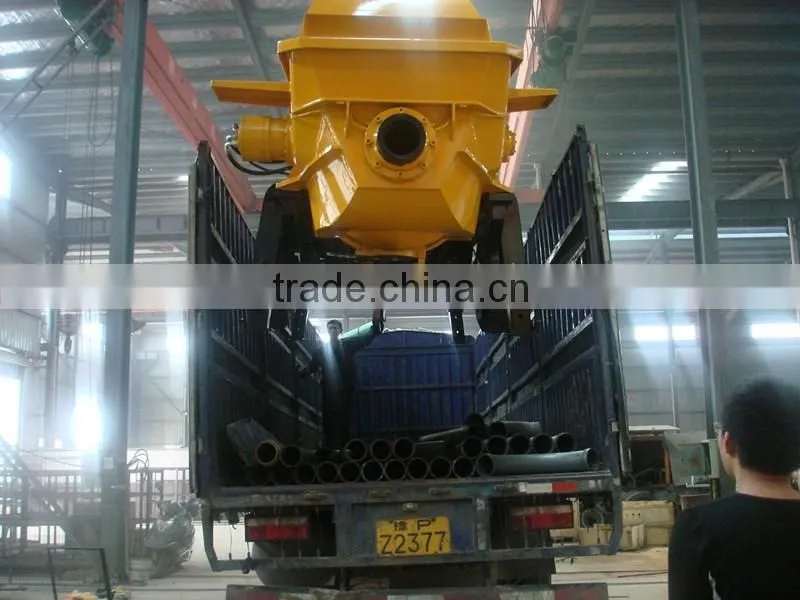

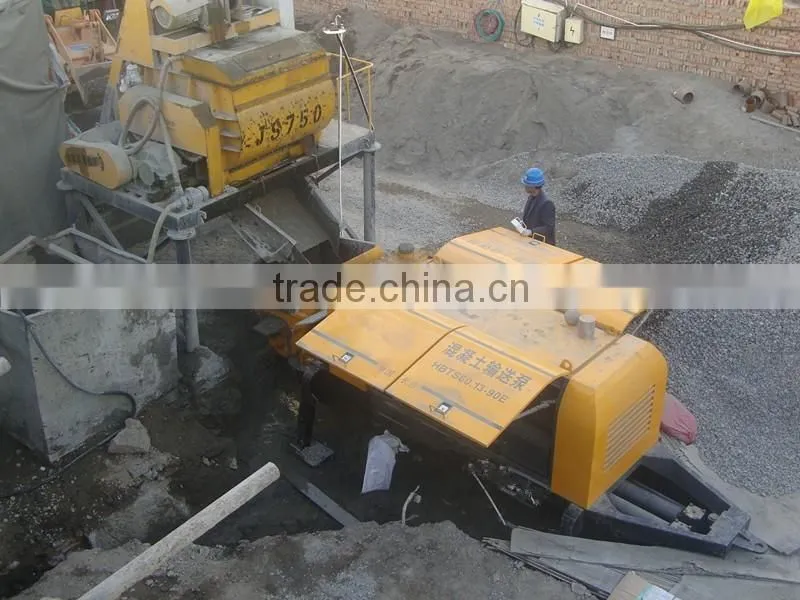

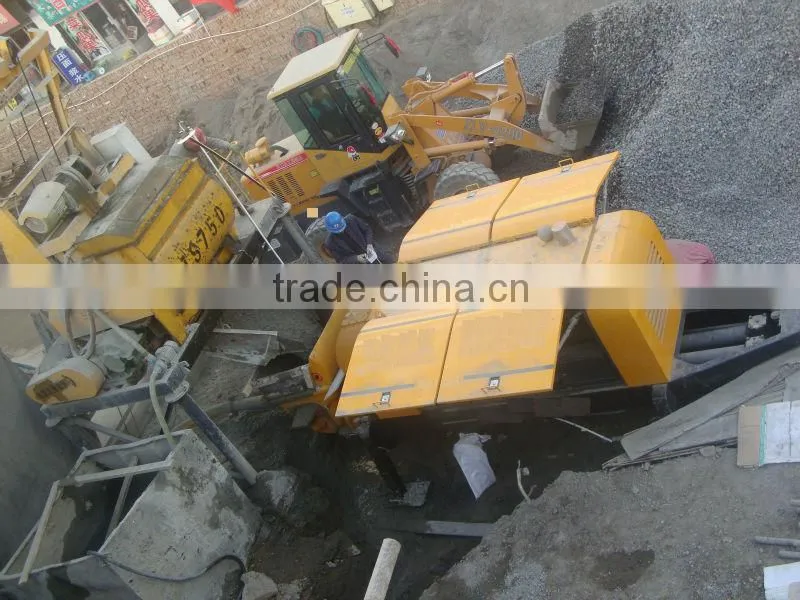

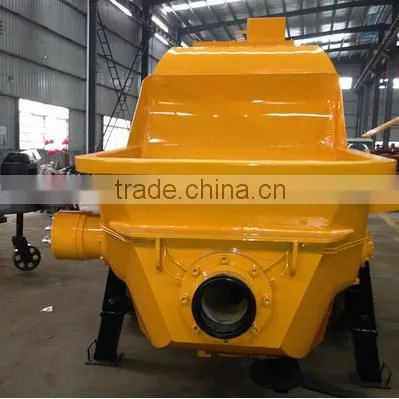

Concrete Pump Photos

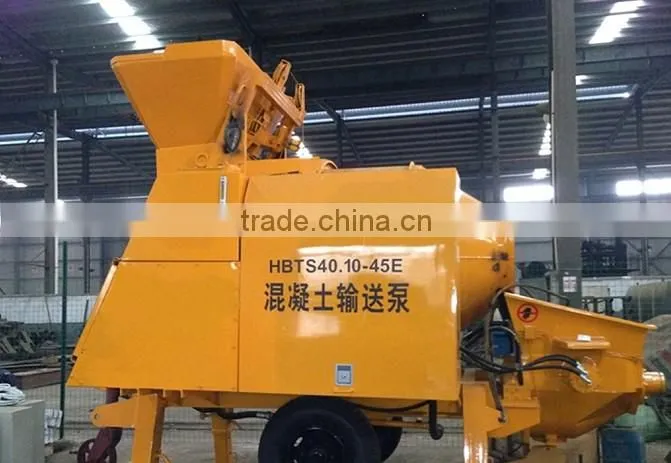

We also supply CONCRETE MIXER PUMP types.
We also supply BIGGER types.
HBTS-40, HBTS-50, HBTS-60, HBTS-90.

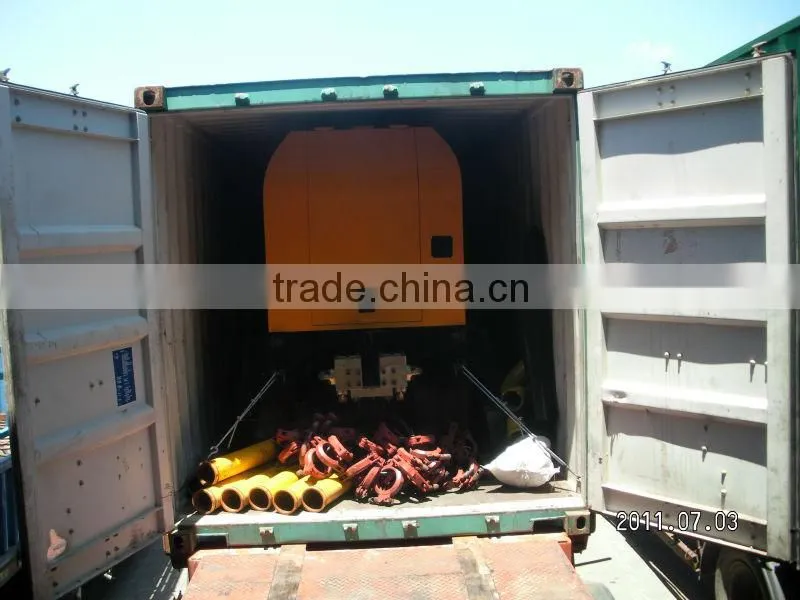

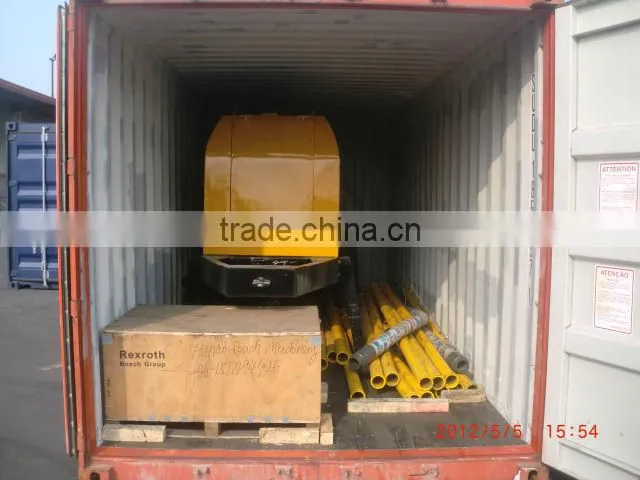

Packing: In Nude,One unit/20GP
Delivery time: 10 Working days after order confirmed
After sale service:
1. Operator Training and installment Video are available; We can also send our technician to customers construction site if installment technical support needed.
2. Spare Parts Supply.
We also supply:
- mixer(JDC series, JS series, JZ series),

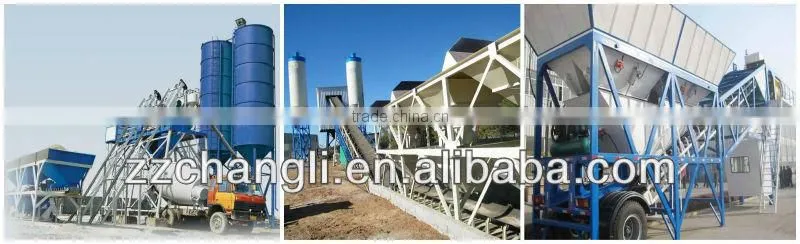

- concrete batching plant,
- batching machine,

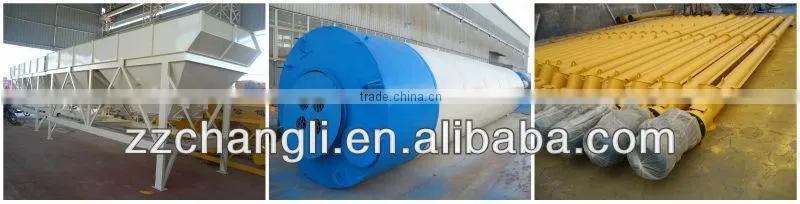

- silo,
