QT10-15 Block Paverment Making Machine,german Concrete Block Making Machine
- China main port
- T/T Credit Card
You May Like
-
Brick Laser Engraving Machine,concrete Interblock Making,QT4-15 Hollow Brick Making Machine
-
Two Bricks at the Same Time, Small Mould Interlock Brick Making Machine
-
QM2-40 Manual Clay Interlocking Brick Making Machine,two Different Moulds at Same Time Interlock Brick Making Machine Quality Choice
-
QT40-25 Automatic Brick Making Machien,hollow Type and Paver Type Concrete Byick Making Machine
-
QT4-15 Concrete Block Making Machine,QT Serious Concrete Brick Making Machine Eith CE Certification
-
Fly Ash Brick Making Machine in India Price ,QT10-15 Concrete Batcing Plant
Product Details
| Condition | New | Type | Hollow Block Making Machine | |
| Brick Raw Material | Crushed Stone | Processing | Brick Production Line | |
| Method | Hydraulic Pressure | Automatic | Yes | |
| Capacity | 4000-60000 Pieces/day | Place of Origin | Henan, China | |
| Brand Name | YUJIE | Model Number | QT10-15 | |
| Voltage | 220V/380V | Power | 36.8kw | |
| Dimension(L*W*H) | 6600*1990*3000(L*W*H)(mm) | Certification | CE ISO9001 | |
| Warranty | 1 Year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

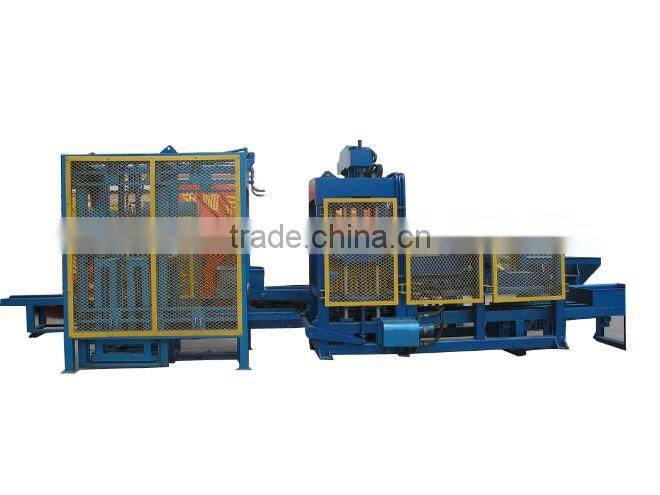

QT10-15 block making machine,german concrete block making machine
brick laser engraving machine
Brick making machine automatically is a semi-automatic model that has developed on the basis of QT10-15 model, integrates the advantages of past small and medium-sized block molding machine. The aircraft uses four-pillar orientation, square steel rack; the bottom mold uses the directional vertical vibration mode. The machine equips with an air compressor, making the process of advance and retreat of upper module, material-discharging control use pneumatic, achieving the gas & electricity integrating control, therefore greatly enhance the productivity.
1, QT10-15 hydraulic block making machine main technical parameters
Parameter Name | Parameter values | |
The largest machine dimensions | 6600×1990×3000(L×W×H)(mm) | |
Rated pressure of hydraulic system | 21Mpa | |
Main vibration form | All vibration molded desk | |
Vibration frequency | 50~70Hz | |
Vibration acceleration | 10-15g | |
To adapt to the high brick | 50-200mm | |
Pallet size | Wooden | 830×660×(40±1)(mm) |
Iron | 830×660×(8-10±1)(mm) | |
Bamboo | 830×660×(15-20)(mm) | |
Molding cycle | 15-18 seconds 20-23 seconds to be added fabrics |
|
When production | Standard block (240×115×53mm) | 57,600 Pieces/ 8 hours |
Feeder capacity | Effective storage volume of 0.45m3 hopper | |
| Effective volume of 0.15m3 car charging | |
Machine power | 36.8kw | |
Machine weight | 12T | |
2, QT6-15 hydraulic block making machine specifications and the main product output of each plate
Model | Block Specifications (Mm) | Forming a number of | Molding cycle | Middle class | Host power |
QT6-15 | 390×190×190(block) | 6 | 15 | 11520 | 36.8 |
240×115×90(brick) | 15 | 15 | 28800 | ||
240×115×53(standard brick) | 30 | 15 | 57600 | ||
·This series of 150-650 tons of products with different specifications.·Brick shaped mold can be produced according to user needs. | |||||
QT6-15B hydraulic block making machine specifications and the main product output of each plate
Model | Block Specifications (Mm) | Forming a number of | Molding cycle | Middle class | Host power |
QT6-15B | 390×190×190(block) | 6 | 15 | 11520 | 36.8 |
240×115×90(brick) | 18 | 15 | 34560 | ||
240×115×53(standard brick) | 36 | 15 | 69120 | ||
·This series of 150-650 tons of products with different specifications. Brick shaped mold can be produced according to user needs. | |||||
