Hexagonal wire mesh/ gabion box/gabion basket
We are Anping Haochang Wire Mesh Manufacturing Co., Ltd which Specialized at producing Gabion Box.with High Quality,Competitive Price And Best Service.
Gabion Mesh are made of double - twisted hexagonal wire mesh. To fill with stones at the river bank or seaside to stop flood, on the mountain prevent rock falling.
1. Gabion box materials: Hot dipped galvanized wire and PVC coated galvanized wire, Galfan coated wire
2. Gabion box mesh wire: 2.0mm, 2.2mm, 2.7mm, 3.0mm,
3. Gabion box selvage wire: 2.4mm, 2.7mm, 3.4mm, 3.9mm
4. Gabion box mesh size: 6*8cm, 8*10cm, 10*12cm, 12*15cm
5. Gabion box lacing wire: 2.2mm, 5% of gabion weight
6. Gabion box Zinc coating: 225-275g/m2 according to EN 10224-2
7. Gabion box size: 1x1x1m, 2X1X0.5m, 2X1X1m, 3X1X1m, 4X2X0.5m, 6X2X0.3m
8. Gabion box Steel according to EN 102182, Tensile strength between 380N/mm2 and 500N/mm2
Woven / hexagonal wire mesh gabion basket | |
Application |
Control and guide of water or flood |
Material |
Low carbon steel wire, Stainless steel wire, PVC coated wire |
Surface Finish |
Electro galvanized, Hot-dipped galvanized, Galfan coated, PVC coated |
Connect Way |
by Helical wire, by U post, H post |
galfan wire gabion
a)Gabion Box materials: Galvanized iron wire and PVC coated wire,Galfan(95%zinc-5%Alu Alloy)low carbon steel wire,which has good ability of resistance corrosion.
b)Gabion box mesh wire:2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4.0mm
c)Gabion box selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm
d)Gabion box mesh hole: 6*8cm,8*10cm,10*12cm,12*14cm
e)Gabion box Tie wire/lacing wire:2.2mm,3% of weight
f)Gabion box Zinc coating:250-300/m2
g)Gabion box size:1*1*1m, 2*1*1m, 2*1*0.5m, 3*1*1m, 4*1*1m, as your request

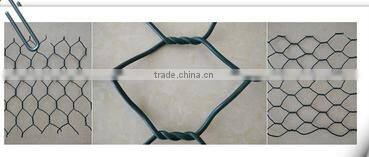

hexagonal weave
Material: Low carbon steel wire, stainless steel wire.
Surface treatment:galvanized,pvc coated ,galfan
Welded Method: welded together then Hot Dip Galvanised or Alu-Zinc coated to BS443/EN10244-2 ensuring a longer life
Hexagnal Weave: Straight twist, reverse twist, double direction twist. Galvanized after weaving, before weaving. Hot dipped galvanized, electro galvanized or PVC coated.
Features: Firm structure, flat surface. Offering good corrosion resistance and oxidation resistance.
Application: Gabion is ideal materials for flood prevention and flood control in protecting and support seawall, hillside, road bridges, reservoir and other civil engineering in the form of mesh containers filed with stones
-
Advantage:
1. Economic. Just put the stone into the gabion and seal.
2. Easily construct, no special technology needed.
3. Strong capacity of withstand nature destroy, rust-resistance and atrocious weather resistance.
4. Affording Large scale distortion, but never be defeated.
5. The slit between the mesh and stone is good for the growth, which can be the part of the environment around.
6. Excellent Penetrability, which can prevent from the whist by liquid.
7. Saving the transport costs. Which can fold while loading and transport, then assemble.
