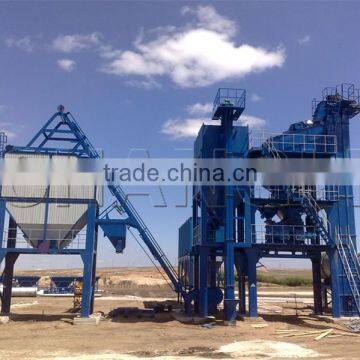

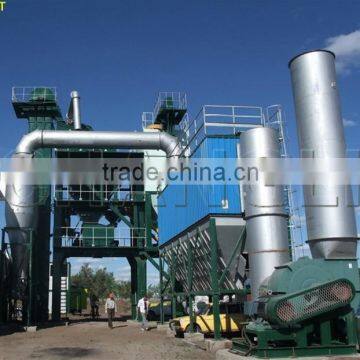

LB200-2000hot asphalt for sale in china /asphalt mixer/asphalt mix plant

FOB Price

USD $50,000 - $90,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port QINGDAO
Payment Terms:T/T

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Power Type:	Electric	Place of Origin:	Henan, China
Brand Name:	YUJIE	Model Number:	LB200-2000	Power(W):	120KW
Dimension(LWH):	250024005700	Weight:	30T	Certification:	CE ISO
Warranty:	ONE YEAR	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

LB200-2000hot asphalt for sale in china /asphalt mixer/asphalt mix plant

Product Description and Technical parameters

1.Ideal equipment for construction and maintenance of high-ways.

2.The filling rate is no more than 60% making bitumen, aggregates and powder well stirred.

3.The mixing scaleboard and blade use wear-resistant alloy cast iron and its mixing shaft adopts alloy cast steel.

4.The measuring device use Medianero weighing module which equipped with high precision and reliability resistance type strain sensors.

5.The control system using Siemens programming controller can carry on the automatic and manual control for the charging weighing,

mixing, discharging and so on.

6.The dust collecting system adopts the combination of gravity dust collection and water dust collection or the combination of gravity dust

collection and bag dust collection, dust emission is less than 50 mg/Nm

Type	LB500	LB750	LB1000	LB1500	LB2000	LB2500	LB3000	LQ4000
Rated production	30-40t/h	50-60t/h	60-80t/h	90-120t/h	120-160 t/h	160-200 t/h	200-240 t/h	280-320 t/h
Cold aggregate container	4containers ×6m3	4containers ×6m3	4containers ×9m3	4containers ×9m3	5 containers ×11m3	5 containers ×11m3	5 containers ×11m3	5 containers ×11m3
Dry cylinder	1.1m×4.2m	1.3m×5m	1.5m×6m	1.8m×7m	2.2m×8m	2.35m×9m	2.5m×10m	2.8m×11m
Bag dust-remover	CNM156	CNM240	CNM357	CNM476	CNM654	CNM832	CNM1012	CNM1308
Emission standard	50mg/nm3	50mg/nm3	50mg/nm3	50mg/nm3	50mg/nm3	50mg/nm3	50mg/nm3	50mg/nm3
Vibrating screen	4 layers	4 layers	4 layers	4 layers	5 layers	5 layers	5 layers	5 layers
Hot aggregate container	12t	12t	26t	26t	5/40t	40t	80t	100t
Mixing kettle capacity	500kg	750kg	1000kg	1500kg	2000kg	2500kg	3000kg	4000kg
Mixing cycle	45s	45s	45s	45s	45s	45s	45s	45s
Mineral powder tank volume	30t	30t	26+36t	26+36t	30+43t	30+43t	50+35t	60+35t
Asphalt tank volume	30000L	30000L	50000L	50000L	2×50000L	2×50000L	3×50000L	4×50000L
Heat conduction oil stove	200,000 kcol/h	200,000 kcol/h	300,000 kcol/h	300,000 kcol/h	500,000 kcol/h	500,000 kcol/h	800,000 kcol/h	1,000,000 kcol/h
End-product container volume	50t	50t	90t	90t	110t	110t	200t	200t

The Models of Asphalt Mixing Plant: LB500-40t/h; LB750- 60t/h; LB1000- 80t/h; LB1500-120t/h; LB2000-160t/h; LB2500- 200t/h; LB3000-240t/h; LB4000-320t/h According to the requirements of your freedom of choice
