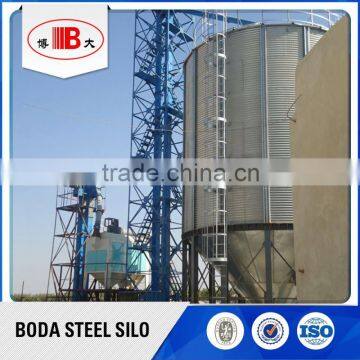

Small Grain Feed Silo Storage
- Qingdao
- T/T
You May Like
Product Details
| Condition | Used | Year | 2013 | |
| Capacity | 1000t | Material | Steel | |
| Place of Origin | Shandong, China | Brand Name | BODA | |
| Model Number | TCZK03603 | Dimension(L*W*H) | 3.667m*3.667m*8.5m | |
| Weight | 2t |
Product Description
small grain feed silo storage
1. BODA hopper bottom steel silo series is specially designed by senior engineers in our company, with high-quality galvanizing board.
2. Hopper angles can be 45° and 60°,among which 60° conical bottom is usually used to store larger pellet and powder materials with high viscosity.
3. All BODA silos are precision engineered from high strength, 80mm x 14mm low profile corrugated steel plate, normally galvanised to 275 g/m2.
4. The life cycle of the silos can come up to 30-50 years long. The products are designed comply with the national standard of GB50322-2001.
5. BODA hopper bottom steel silos provide the best quality grain storage option available.Erection of the most popular 250t, 500t and 1,000t silos is straightforward,and can typically be completed in around 10 days per silo.
Details | Materials | Quality Standard | Features |
Body Plate | By Hot Dip Galvanized Steel Plate, 275-600g/m2 Galvanization | China National Standard with Quality Report | Our Corrugated Steel Plate Production Line is controlled by advanced CNC equipments |
Bolts and Screws | Hot Dip Galvanized, Strengthened, with hex flange for Max Sealing | Quality Strength Report | Hot dip galvanized with longer life |
Enforcement Rib Stiffeners | Sidewall stiffeners are manufactured from min. 350 N/mm² tensile high strength steel . This type of stiffeners easily transit the vertical loads during loading or unloading, environment loads of the silo. | China National Standard with Quality Report | Can be inside or outside rib Rigorous calculation to meet full silo strength safety |
Wind Ring | Hot Dip Galvanized For additional support for higher wind areas, the wind ring is attached directly to the stiffeners. The rings strengthen the silo providing reinforcement against damaging wind. | China National Standard with Quality Report | Rigorous calculation to meet the anti-wind needs for sea port area or windy area |
Silo door with platform | A standard manhole door is located in the second ring of the silo. Double size door with strong frame and block system. | China National Standard with Quality Report | Easy for the ascendant to inspect and maintenance, ensure the safety of the silo. |
Stairs | BODA offers both ladders and stairs as outside climbing options. All of them have handrail or safety guard. | China National Standard with Quality Report | Can be installed inside and outside of the silo, Easy for the ascendant to inspect and maintenance, ensure the safety of the silo. |
Inside Ladder | Ladder inside silo, simple vertical or cage type ladder are available for your choice | China National Standard with Quality Report |
Bottom shape | Hopper Type |
Capacity | ≤1500t |
Design view | Heavy structural “wide-flanged” columns Columns designed “X” bracing Pressure bearing is higher than the national standard, and safe enough. |
Silo Discharge | Hopper is with Rigorous Full Load Safety Calculation. BODA has 0 Silo Hopper Accidents and 0 Silo Accidents Can be made by concrete or steel |
Sweeper | Normally no need sweeper for hopper bottom silo except for high viscidity materials |
2.save resources and costs;
3.Hopper angles can be 45° and 60°;
4.Could be movable;
5.easily to be installed;
6.Do not need a serious concrete, labor and energy cost;
7.less grain residues in steel grain silo;
8.Hopper structure prevents loss of time and money during the unloading period.
260 workers, 40000m2 workshop, CNC production equipments, more than 15 years experience focusing on steel silos, Yieh Phui or HBIS brand 275g/m2 galvanized steel, ISO 9001:2008, three hours reach Qingdao port.
