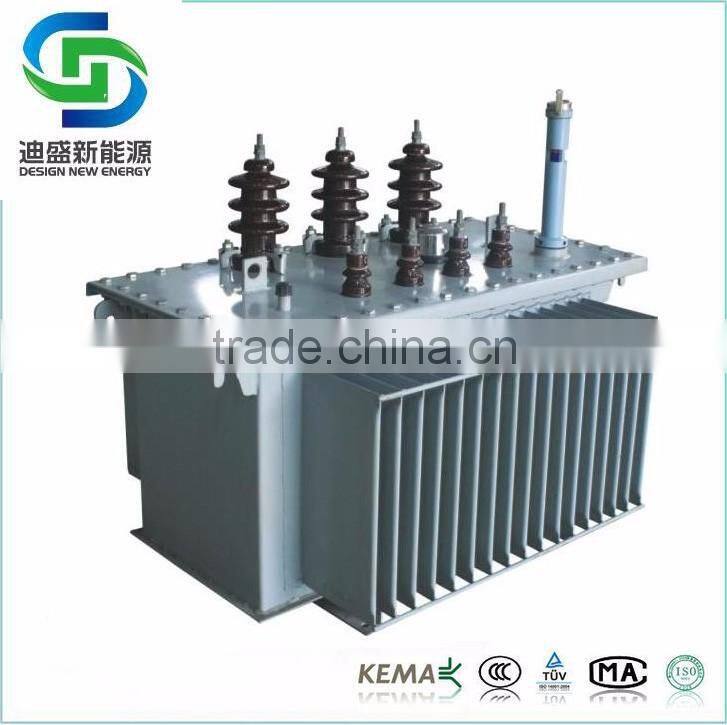

33kv 11KV 1000KVA high quality distribution power transformer

Product Application

OUR TRANSFORMER COMBINES THE BODY OF TRANSFORMER, SWITCH, AND OTHER ACCESSORIES. THERE ARE TWO HIGH VOLTAGE LOAD SWITCHES:TERMINAL AND RING WHICH COULD APPLY FOR DIFFERENT DISTRIBUTION NETWORK SYSTEMS. IT IS COMPACT, AND SMALL, CHEAP, QUICK TO INSTALL.IT COULD BE USED OUTDOORS AS WELL AS INDOORS, FOR EXAMPLE:RESIDENCE, AIRPORT, APARTMENT, COMMERCIAL CENTER, MINES, HOSPITAL AND SCHOOL ETC.IT COULD GO INTO CHARGE CENTER, IMPROVE THE POWER SUPPLY. IT COULD ALSO SATISFY THE REQUIREMENT AS THE CALCULATION OF CONSUMMATION,REIMBURSEMENT,LOW VOLTAGE DSIVISION.IT IS EASY TO OPERATE.

Main Features

1)ALL INSULATED STRUCTURE AND INTERLOCKING DEVICES,SAFE.

2)ALL SEALED STRUCTURE, FREE FROM OIL QUALITY DEGENERATION, PROLONG THE LIFE OF TRANSFORMER.

3) CHARGING SWITCHES ARE INTERACTED IN THREE PHASED TOGETHER WHICH REDUCES THE RESONANCE OF IRON AND MAGNET.

4) DOUBLE FUSE PROTECTION, TO ASSURE THE SYSTEM SIMPLE, CONVENIENT, CHEAP AND RELIABLE;

5)SILICON STEEL CORE, AMORPHOUS ALLOY CORE, COILED CORE ETC; LOW LOSS, LOW NOISE, AND NO TEMPERATURE

Machine Parts

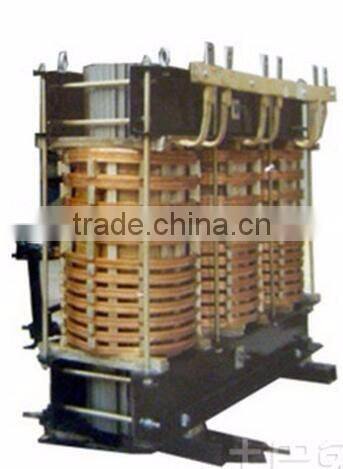

Name: TRANSFORMER INTERIOR

Brand: ZHEJIANG DESIGN

Original: CHINA

PRODUCTS IS DESIGNED WITH PCCAD, THE CHARACTERS ARE CONFORMED TO IEC 60076 AND GB 1094-1996/GB6450-1986, GB/T10228-1997, DIN42525, IEC726.

Main Features

Name: COMBINATION TRANSFORMER
Brand: ZHEJIANG DESIGN
Original: CHINA
1)FIRE PROTECTION/ANTI-EXPLOSIN, AND NO POLLUTION
2)COIL IS FREE FROM HUMIDITY,LOW NOISE AND CAPACITY OF HEATING DISPERSION.
3) LOW LOSS,ENERGY SAVING,FREE FROM MANINTENANCE,SMALL VOLUME,LIGHT, AND EASY INSTALLATION.

Machine Parts

Name: TRANSFORMER ELBOW
Brand: HIGH-QUALITY ELBOW
Original: CHINA
INPUT WIRE OF HIGH VOLTAGE IS WITH ELBOW FORM CONNECTION. COULD OPERATION 200A CHARGING CURRENT, IN EMERGENCY, IT COULD OPERATE THE CHARGING SWITCH. IT COULD BE INSULATED FROM SWITCH.

Main Parts

Name: CORE
Brand: ZHEJIANG DESIGN
Original: CHINA
 SILICON STEEL CORE, AMORPHOUS ALLOY CORE, AMORPGOUS ALLOY CORE, COILED CORE ETC; LOW LOSS, LOW NOISE, AND NO TEMPERATURE RAISING ON BOX SURFACE;
