Business Industrial Offset Printing Machine

Business Industrial Offset Printing Machine photo-1
Business Industrial Offset Printing Machine photo-2
Business Industrial Offset Printing Machine photo-3
Business Industrial Offset Printing Machine photo-4
Business Industrial Offset Printing Machine photo-5
Business Industrial Offset Printing Machine photo-6
US$ 18,000 - 20,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Other, offset printing machine
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Plate Type Other, offset printing machine
Place of Origin Zhejiang, China
Brand Name QC offset printing machine
Model Number OP-47
Usage Paper Printer
Automatic Grade Automatic
Voltage 220V, 50Hz Single phase,
Gross Power Motor-1.5KW; Transducer-1.5KW ; Air-pump-motor-0.55KW;
Dimensions(L*W*H) 2050 x 850 x 1200 mm;
Weight GW/NW: 1000KG/850KG
Certification CE
After-sales Service Provided Engineers available to service machinery overseas







Company Brief Introduction:



Wenzhou Qichen Industry & Trade Co.,Ltd
Providing PE Paper, Paper Cup, Hamburger Box Making Machine,
Die Cutting Machine, Paper Cup Forming Machine.
Quality and the after sell service is our aim: we do not only sell the prodcuts but solutions.We believe that you will be satisfied with both our products and service.




offset printing machine CE certification






Our service

we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best and professional service from us.


We provide the whole line of paper cup machine,including:PE Paper, Paper Cup,
Hamburger Box Making Machine, Die Cutting Machine, Paper Cup Forming Machine and printing macine.

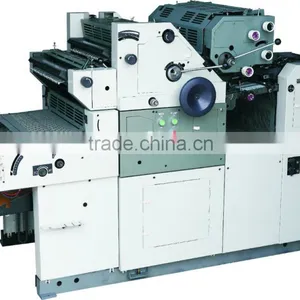

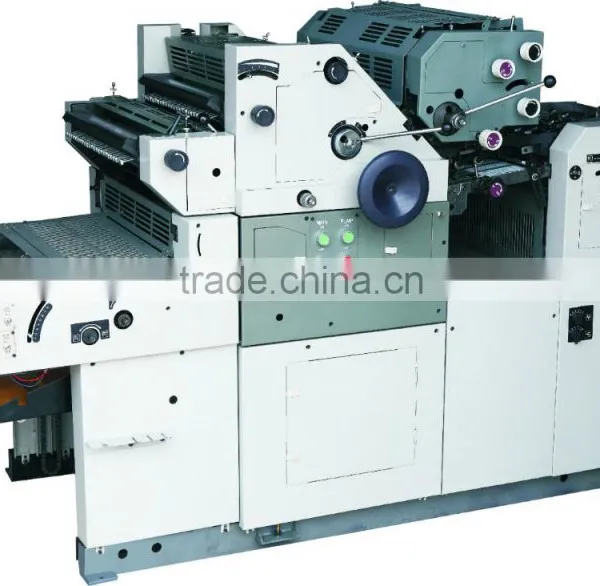

Offset printing machine


Business Industrial Offset Printing Machine


Samples of offset printing machine





Business Industrial Offset Printing Machine




Offset printing machine description:



OP-47 offset printing machine is a new machine designed on the market requirement.

 It is an ideal machine for print paper cup blank.



Feeding white paper cup blank, do not worry about waste paper or press-plate.



Fast speed, Available print 2-blank each time (based on the cup blank size).



Less cost for small amount press, especially for advertisement paper cups.



Less press-plate cost, 2-color PS press-plate, 1-color Resin press



plate, the cost is inexpensive.



Water chemiluminescent set: Big 74 stitch, Small 44 stitch,



1st-color press:Ink roller 14pcs (2pcs rely on version)Water roller 4pcs (1pcs rely on version);



2nd-color press:Ink roller 14pcs (2pcs rely on version);Water roller 4pcs (1pcs rely on version);



3rd-color press: Resin plate (roller plate) size: 90 x 345mm (optional).



Advantage:



Easy to operate: one person can operate the offest printing machine



Less printing cost: good to make some advertisement cup.



Less Voltage: use 220V single phase , 50HZ power





Easy change print logo, 2-color PS press-plate, 1color-flexo press-plate,





Offset printing machine technical Specification



Name:

OP-470   offset printing machine

Fit Material:

150~300gsm Paper, SINGLE PE coated paper, etc.

Printing Speed:

3000~6500 blanks/hour

(Based on the cup blank size, available print 2-blank same time);

Max. Printing Color:

3-color, (2-color PS plate, 1-color roller plate);

Press-Plate Size:

470 x 395 x 0.15 mm;

Printing Blanket Size:

470 x 420 x 1.95 mm;

Total Power:

Motor-1.5KW;

Transducer-1.5KW ;

Air-pump-motor-0.55KW;

Power Source:

220V, 50Hz Single phase,

Machine Size (L*W*H):

2050 x 850 x 1200 mm;

Packing Size (L*W*H):

2100 x 1000 x 1450mm;

Weight:

GW/NW: 1000KG/850KG;





Spare parts of  offset printing machine

OP-47 offset printing machine is for paper cup blanck printing, designed on  the market

requirement. It uses high quality spare parts, so it is easy to operate and with less printing cost,



especially for advertisement cups. Also, it can work for a long time.



Business Industrial Offset Printing Machine









Packing & Delivering



Business Industrial Offset Printing Machine





If you are interested in offset printing machine , welcome to contact me~





Business Industrial Offset Printing Machine
