Company Brief Introduction:
Our service
we have been always insisting on developing specialization strategy in our industry and creating high quality products and service. We provide accessories and maintenance of the main parts during warranty. After the warranty, you can also get the best and professional service from us.

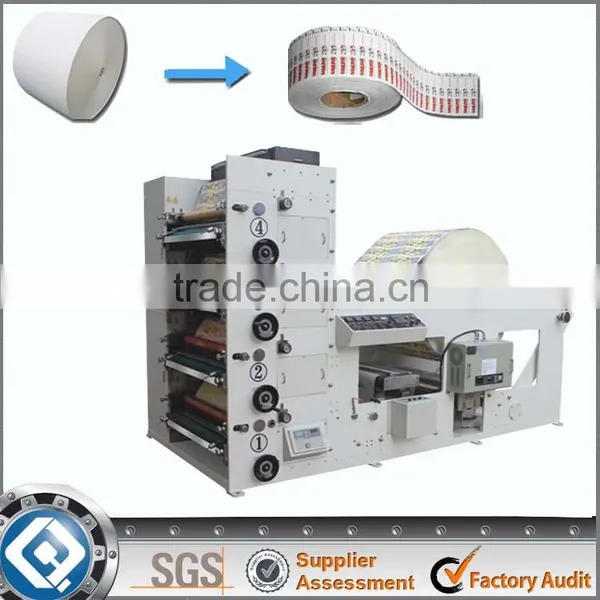

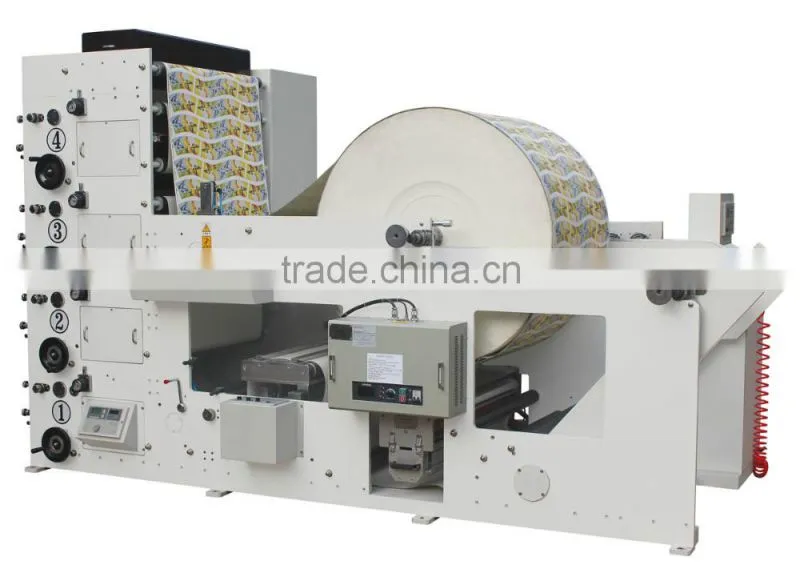

Printing machine for small business brief introduction
1. Adopt the anilox roller to spread ink.
2. Unwinding and rewinding are controlled by magnetic power brake, clutch,
(or by automatic tension controller of mitsubishi, made in Japan).
3. Each printing unit adopt 360o for registration.
4. Each printing unit have one IR drier.
5. The rubber roller can break away automatically while parking, and running
at a low speed, in order to avoid ink being dry.
6. The main motor is adopted the import stepless regulation of frequency conversion.
7. Unwinding, web guiding, corona discharging,printing, IR drying and rewinding can

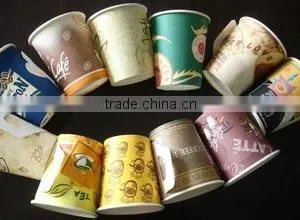

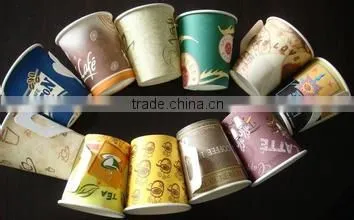

be finished in one process, this is an ideal machine to print many kinds of paper cup.
Printing machine for small business
Printing machine for small business technical datas:
Model |

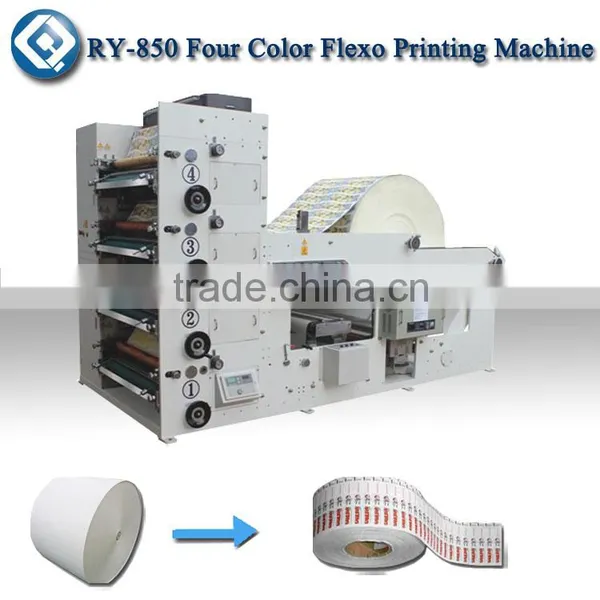

RY-850 printing machine for small business |
Printing Speed |
60m/min |
Printing Colour |
4 Colours |
Max. Web Width |
860mm |
Max. Printing Width |
850mm |
Max. Printing Diameter |
1400mm |
Max. Winding Diameter |
1400mm |
Printing Girth |
180-420mm |
Precison of Chromatography |
±0.15mm |
Dimensions(L*W*H) |
3500×1850×2200mm |
Machine Weight |
About 5000kg |
Printing machine for small business features:
1.1 Ink Roller :With the Ceramic roller by 100LPI- 1000LPI, high speed dot reproduction rate, screen printing, structure three–dimensional sense of strong ,registering accurately
1.2 Ink :Adopt the automatic circle system ,running ink by single small motor
1.3 Timing :Adopt Japanese inverter controlled ,running by small fluctuations
1.4 Unwind EPC :adopt the high quality automatic EPC controller device
1.5 Unwind and rewind way : adopt the magnetism Auto tension controller.
1.6 Ink way :our company has special design for the doctor blade device with
the ink pump can suck the ink automatically
1.7 Up and down plate :adopt the hydraulic pressure rising and down the printing
plate automatically
1.8 Roller :adopt the special steel processing ,and through the special technique treatment ,
and plating thickness of 10 silk protective layer of hard chromium, beat the following in the
0.02mm
1.9 Traction Rollers :adopt Japanese production of small semienclosed bearing, static equilibrium
and dynamic levels do cross-processing, hard oxidation treatment, resistance, beating a small
1.10 Drying device: ventilation with heat blowing three devices, which use a central heating
temperature control system and the control each group
1.11 Body: thick wall (75mm), longer bridges, thick base, making the machine more stable.
1.12 The control system: machine adopts PLC device: 1) start,2) stop,3) run,4) automatically
transported down the ink, with PLC control, automation and better, more humane facilities.
Full line of printing machine for small business :
Printing machine for small business CE Certification
If you are interested in printing machine for small business , welcome to contact me~
|
