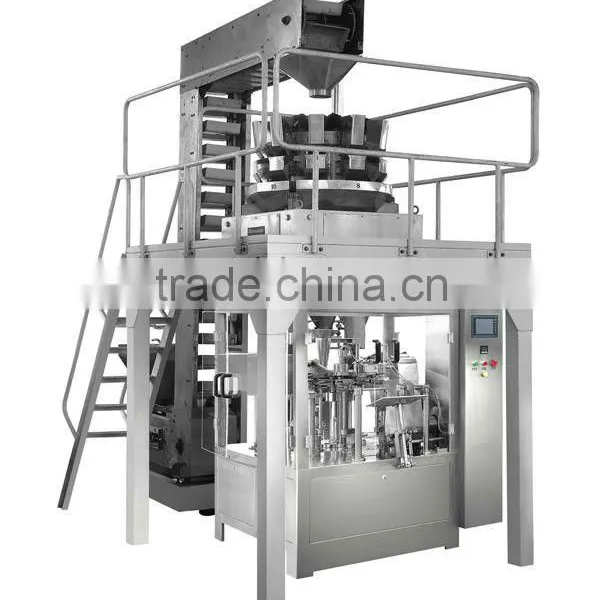

Help CenterGD8-200 Price Pouch Packing Machine in India
Related Products
-
High Speed Water Pouch Packing MachineUS$ 19,999 - 39,999MOQ: 1 Set -
GD8-200 Packing MachineUS$ 29,999 - 49,999MOQ: 1 Set
-
New Style Standup Pouch Packing MachineUS$ 29,999 - 49,999MOQ: 1 Set
-
GD8-200S New Style Liquor Pouch Packing MachineUS$ 29,999 - 49,999MOQ: 1 Set
-
New Style Pouch Filling Packing MachineUS$ 29,999 - 49,999MOQ: 1 Set
Specifications
The price pouch packing machine in india is goodThe price pouch packing machine in india is easy to operate.
Our machine is used to produce bags which can hold both liquid and solid materials. It doesn't use oil which contributes to the protection of environment.Besides,the pharmaceutical powder pouch packing machines is easy to operate, which can also improve the efficiency. The price pouch packing machine in india is reasonable.
Main technical parameters
| Working position | Six-working , eight-working and ten-working position |
| Pouch material | Laminated film |
| Pouch pattern | Stand-up, falt |
| Pouch size | W:200-300mm L:200-450mm |
| Filling Scope | 500-6000g |
| Weight Accuracy | ≤±4g |
| Speed | 10-35pouches/min(The speed depends on the product status and flling weight)10-35 Bag /Min |
| Voltage | 380V 3phase 50HZ/60HZ |
| Total power | 6.5KW |
| Compress air | 0.6m3/min(supply by user) |
Product Process
| 1:Giving bag | |
|
2:Coding (Ribbon hot coding) | |
|
3:Open bag | |
| 4:Filling and vibrate,dust | |
| 5:Exhaust,Sealing | |
|
Check1: No bag or bag open error, no filling Check 2: No bag ,No filling, No sealing Safty device: Machine stop at abnormal air pressure, heater disconnection alarm | |
6:Forming and out put packages. |
Function and Characteristics
1,Easy to operate,adopt advanced PLC from Germany Siemens, mate with touch screen and electric control system, the man-machine interface is friendly.
2,Frequency conversion adjusts the speed: machine uses frequency conversion equipment, can be adjusted within the range according to the needs of reality in production.
3,Automatic checking: no pouch or pouch open error, no fill, no seal. the bag can be used again, avoid wasting packing materials and raw materials.
4,Safty device: Machine stop at abnormal air pressure, heater disconnection alarm.
5,Rapid replacement of the specifications of the bags, the width of the robotic device can be easily and quickly adjust.
6,It matchs with the glass safty door. The machine will stop working when you open the door. So that it could protect the safty of operators. At the same time, it could prevent dust.
7,Use the plastic bearing, don’t need put on oil, less pollution.
8,Use no oil vacuum pump, avoid polluting the environment in the production.
9,The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality of the sealing part, this improved the product specification.
10,Product or packing bag contact parts adopt stainless steel or other materials which accord with the food hygienic requirements, guarantee hygiene and security of the food,With different feeders changed to pack solid, liquid, thick liquid ,powder and so on.
2) KJL-2 Model of KJL-2 2-head linear weigher.
Application: Quantitative packing of granular materials like spices, salt, washing powder, seed, rice, fooder, gourmet, white sugar and so on.
3)Single-Bucket elevator
This kind of elevator is used mainly to convey the solid food ,such as rice, chip potato ,candy ,etc.it composes the automatic quantitative packing system combined with the weigher and packing machine, which is applying widely. Be made of 304 stainless steel and plastic (PP) which is hygienicand healthy .the elevator is controlled automatically.
The paper cup produced by our paper cup machine is bonded well and the bottom of the cup is double bonded. It can hold the water better.
