Specifications
A) Ideal for all kinds of materialB) Easy to adjust
C) Frequency control
D) High automation
E) Design for customer
Main technical parameters
Bag type |
All kinds of bag |
Bag sizes |
W:100-200mm L:100-300mm |
Filling range |
≤1000g |
Packing speed |
10-60 bags/ min( depending on the product and filling weight) |
Power souce |
380v 50/60HZ |
Package accuracy |
Error ≤± 1% |
Compressed air |
0.4 m3/min(supply by user) |
packing size |
4600mm*2000mm*2430mm |
NOTE |
Machine designed as customer require. |

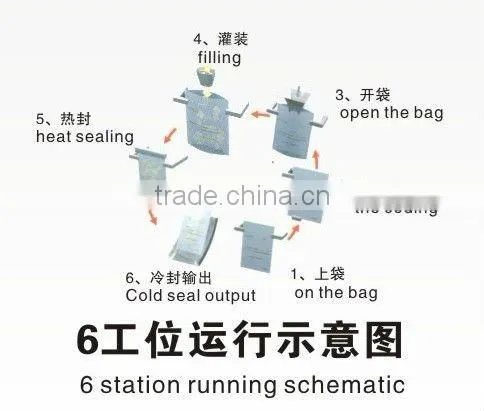

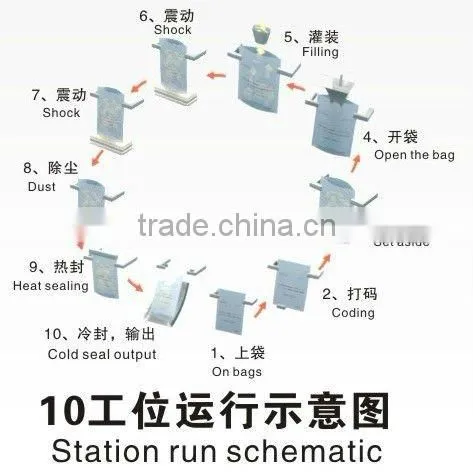

Product Process
1:Giving bag |
2:Coding (Ribbon hot coding) |
3:Open bag |
4:Filling and vibrate,dust |
5:Exhaust,Sealing |
Check1: No bag or bag open error, no filling |
Check 2: No bag ,No filling, No sealing Safty device: Machine stop at abnormal air pressure, heater disconnection alarm |
6:Forming and out put packages. |
Function and Characteristics
Main Features:
A,Easy to operate:PLC controller, HMI system, fault indication on the touch screen.
B,Easy to adjust: only need about 10 mints to change different pouches.
C,Frequency control: adjusted within the range according to the needs of reality in production.
D,High automation : automatically weighting and packing process, machine alarms automatically in case of failure.
Safety and Hygiene:
A,It matchs with the glass safty door. The machine will stop working when door opening. So that it could protect the safty of operators. At the same time, it could prevent dust.
B,Using the plastic bearing, oil not required, less pollution.
C,with oil-free vacuum pump, machinery avoid polluting the environment in the production.
D,Material saving: bag unopened, material unfilled when failure process.
E,Machine has hygienic structure, with the parts that contact the products made of 304 SS.
Applications:
- Solid: candy, chocolate, rock candy, cookies, cakes, peanuts, green beans, pistachios, nuts, cooked foods, pickles, puffed food, dailynecessities, etc.
- Granule: MSG, chicken, sugar, melon seeds, nuts,capsules, granular medicines, seeds, feed, pesticides, fertilizers, chemical raw materials.
- Powder: spices, monosodium glutamate, salt, glucose, refined sugar, milk powder, detergent powder, pesticides, fertilizers, chemical raw materials, etc
- Liquid: rice wine, soy sauce, rice vinegar, fruit juice, beverage, detergent, etc.
- Thick liquid: tomato sauce, peanut butter, jam, chili sauce, bean paste, etc.
- Other materials can be bagged.
