Product Details
Material: | Paper | Certification: | CE / EU | Feature: | Disposable |
Place of Origin: | Zhejiang, China | Brand Name: | QC | Model Number: | ZDJ-40 |
Product Description
Quality and the after sell service is our aim: we do not only sell the prodcuts but solutions.We believe that you will be satisfied with both our products and service.

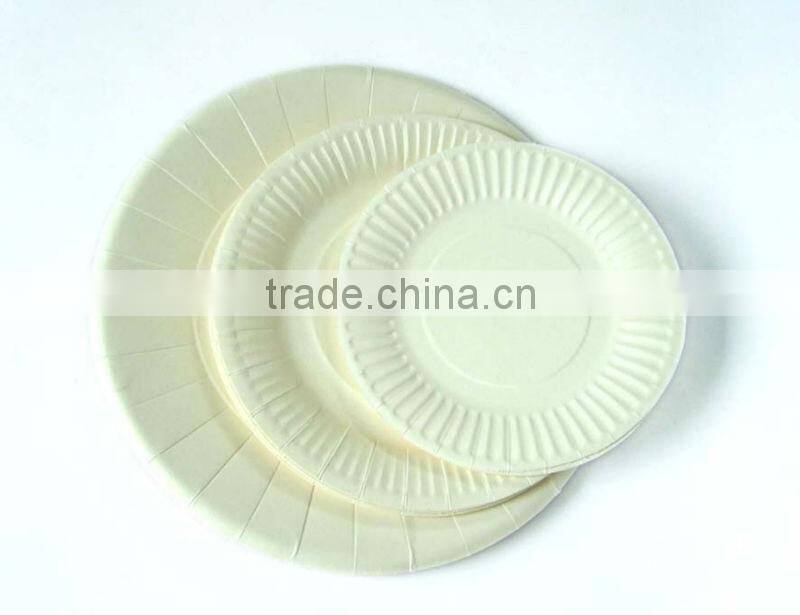

ZDJ-40 rainbow chevron paper plates
Features:
Paper dish forming machine make any shape of paper plates.
Main technical parameters: | ||
Model | ZDJ-40 rainbow chevron paper plates | |
Paper Plate Size | 4—11 inch (mold exchangeable) | |
Raw Material | Paper/paperboard, Aluminum foil coated paper, One side PE coated paper or other | |
Suitable paper weight | 300-600 gsm (favorable weight: 350-450gsm) | |
Rated Productivity | 60--80 piece/minute (total two stations,so two moulds is included) | |
Power Source | 220V/380V 50Hz or other required | |
Total Power | 2 KW | |
Total Weight | 1000KG | |
Package Size (L x W x H) | 1430mm x 1600 mm x 1900 mm | |
Working Air Source | Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air compressor ) | |
If your plate is very large, and the paper is up 600gsm, we design a special machine for you | ||
Pressurizing Air Cylinder Technical Specification | Air flow volume | 0.8 cubic/min |
Air pressure | 0.6-0.8Mpa | |
Air cylinder stroke | 150mm |
1:.Air source : Working pressure 0.8Mpa, Air out-put 1.5 m3/minute (need to buy Air comprssor);
2:.If your plate is very large, and the paper is up 600gsm, we design a special machine for you.
Pressurizing Air Cylinder Technical Specification :
1. MPT-63-150-5T-10;
2. Air flow vlume :0.8 cubic/min;
3. Air pressure:0.6-0.8Mpa;
4.Air cylinder stroke:150mm;
paper cup and plate making machine
Main Features:
Model ZDJ-40 Medium-speed Automatic Paper Plate Forming Machine developed and researched in the market
requirement. It has integrated the pneumatic and the mechanic technologies, which makes it has the functions
of faster working speed, higher safety-performance, safer operation and easier maintenance than the conventional one.
Model ZDJ-40 medium-speed paper plate machine adopts high efficientpressurizing air cylinder, so that the Max.
pressure can reach to 5T,compared with the oil pressure one, it has the advantages of high speed, environment
protection and humanism design.
Standard ZDJ-40 Paper plate machine has two working stations, each station install one set of mold and each station has
separately PLC digital control and electric control. It is widely applied to make paper plate (or aluminum foil laminated paper )in round (rectangle, square, circular,or irregular)shape. Machine speed changes against the material (paper)thickness and the plate size.
