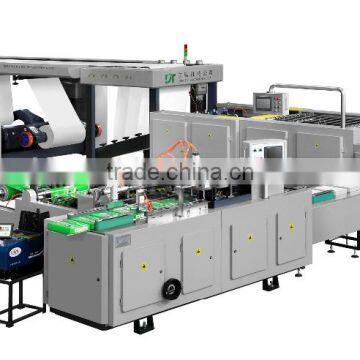

Spefication: a4 paper cutting & packaging machine
Gross width | 846mm |
Net width | 840mm |
Number of cutting | 4 slittings-A4 210mm(width) |
Diameter of paper roll | 400-1200mm |
Diameter of paper roll's core | 3”(76.2mm)-6”(152.4mm) |
Paper grade | High grade copy paper,writing paper, two-side offset paper etc. |
Weight of paper sheet | 60-100g/m2 |
Length of paper cutting | A4(297mm) |
Paper quantity | 0-500pages |
Ream height | 65mm(Max) |
Designing speed of paper cutting | 220m/min |
Times of cutting | 738/min |
Cycle time of ream exhausted | 6/min |
Production speed of paper cutting | 180-220m/min |
Times of cutting | 437/min |
Cycle time of ream exhausted | 5-6 Cycles/min(16-20 reams/min) |
Load of paper cutting | (max)400g/m2(4×100g/m2) |
Paper cutting accuracy | ±0.2mm(Permissible error) |
Paper cutting condition | 1. Speed not change 2.Paper roll with no breakage 3. Qulified paper rolls. |
Transmission | AC Frequency conversion, stepless speed regulating |
Main power source | 3phase/4line/380v/50Hz |
Adjustable voltage | 220V AC/22V DC |
Installed capacity | 26KW |
Air consumption | 300NL/min |
Pneumatic pressure | (Min)7bar---(Max)8.5bar |
Overall dimension(cutting machine) | 16500×2750×2100mm |
Overall Weight | 15T |
